SRM-2400 SB - Echo String Trimmer (Type 1) Clutch, Fuel System, Ignition, Starter Parts Diagram

String Trimmer (Type 1)

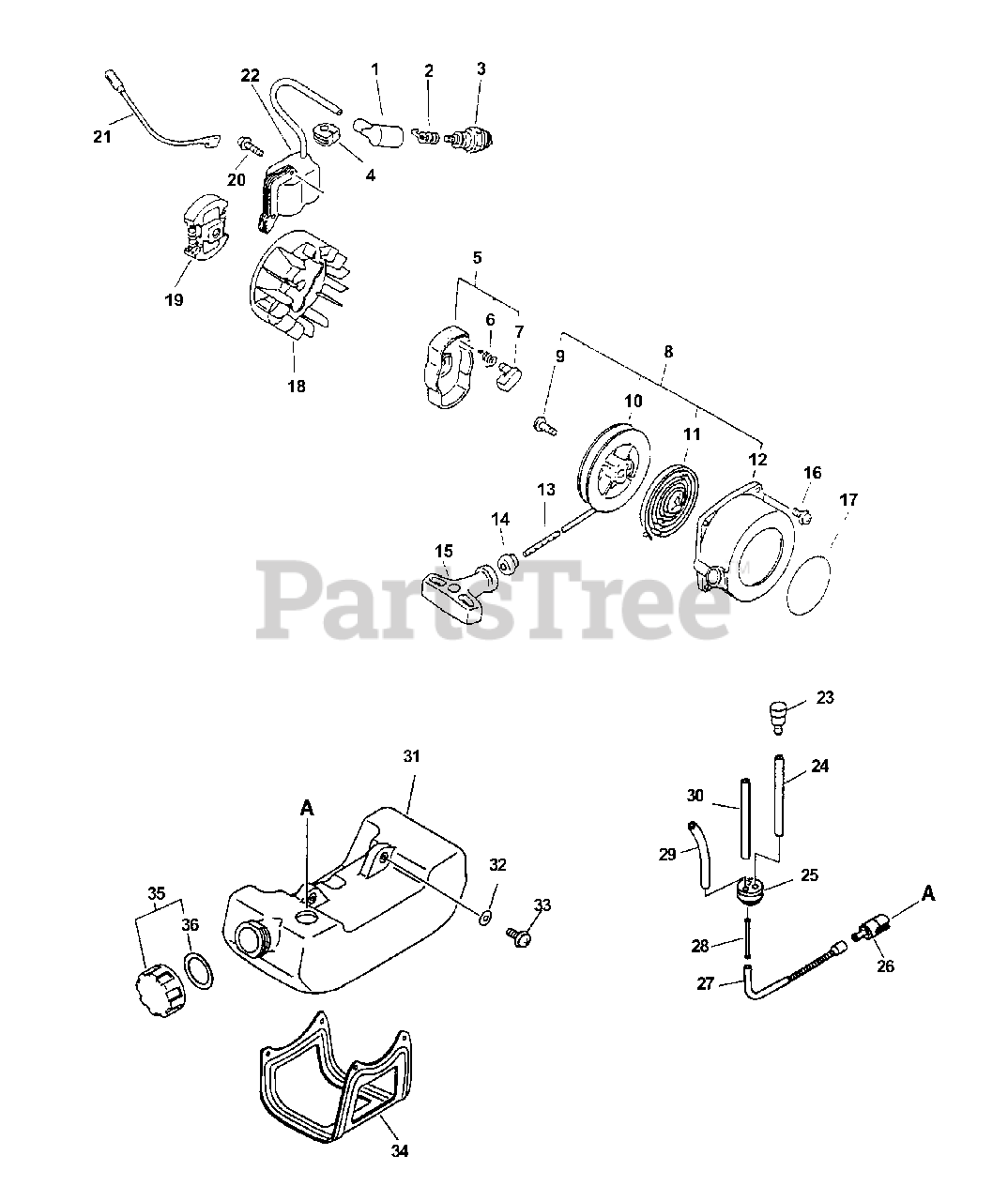

Clutch, Fuel System, Ignition, Starter Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 99944500071

SPARK PLUG -- BPM-7Y

$3.49

$

In Stock, Qty 9

0

3

Echo 15901710230

SPARK PLUG -- RCJ-7Y

$4.99

$

In Stock, Qty 20+

0

4

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 4 left!

0

5

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 6 & 7

$16.99

$

In Stock, Qty 20+

0

6

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 20+

0

7

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

8

Echo 17720042033

STARTER ASSY

Note: INCLUDES ITEMS 9 - 15

$49.99

$

In Stock, Qty 20+

0

9

Echo 17723644330

SCREW

$3.49

$

In Stock, Qty 13

0

10

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 20+

0

11

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 20+

0

12

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 3 left!

0

13

------------------

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$

$

Not available

14

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 19

0

15

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

16

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

17

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

18

Echo 15680144731

FLYWHEEL

$105.99

$

Usually ships in 2-4 days

0

19

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$27.99

$

In Stock, Qty 20+

0

20

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

21

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$3.99

$

In Stock, Qty 9

0

22

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 2 left!

0

23

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

Note: INCLUDED IN KIT P/N 90010

$7.49

$

In Stock, Qty 20+

0

24

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

25

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

26

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: INCLUDED IN KIT P/N 90030

$5.49

$

In Stock, Qty 20+

0

27

Echo 13201212361

PIPE, FUEL - CORRUGATED
(Superseded to 13201212362)

$3.99

$

In Stock, Qty 20+

0

28

Echo 13201103360

CONNECTOR, PIPE

$2.99

$

In Stock, Qty 20+

0

29

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

29

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

30

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

31

Echo 13100546831

FUEL TANK ASSY

$15.99

$

In Stock, Qty 19

0

32

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

34

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

35

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: INCLUDES ITEM 35(INCLUDED IN KIT P/N 90010)

$4.49

$

In Stock, Qty 5

0

36

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$29.99

$

In Stock, Qty 15

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available

Echo 90030

RePower FILTER KIT
(Superseded to 90153)

$18.99

$

In Stock, Qty 20+

0
