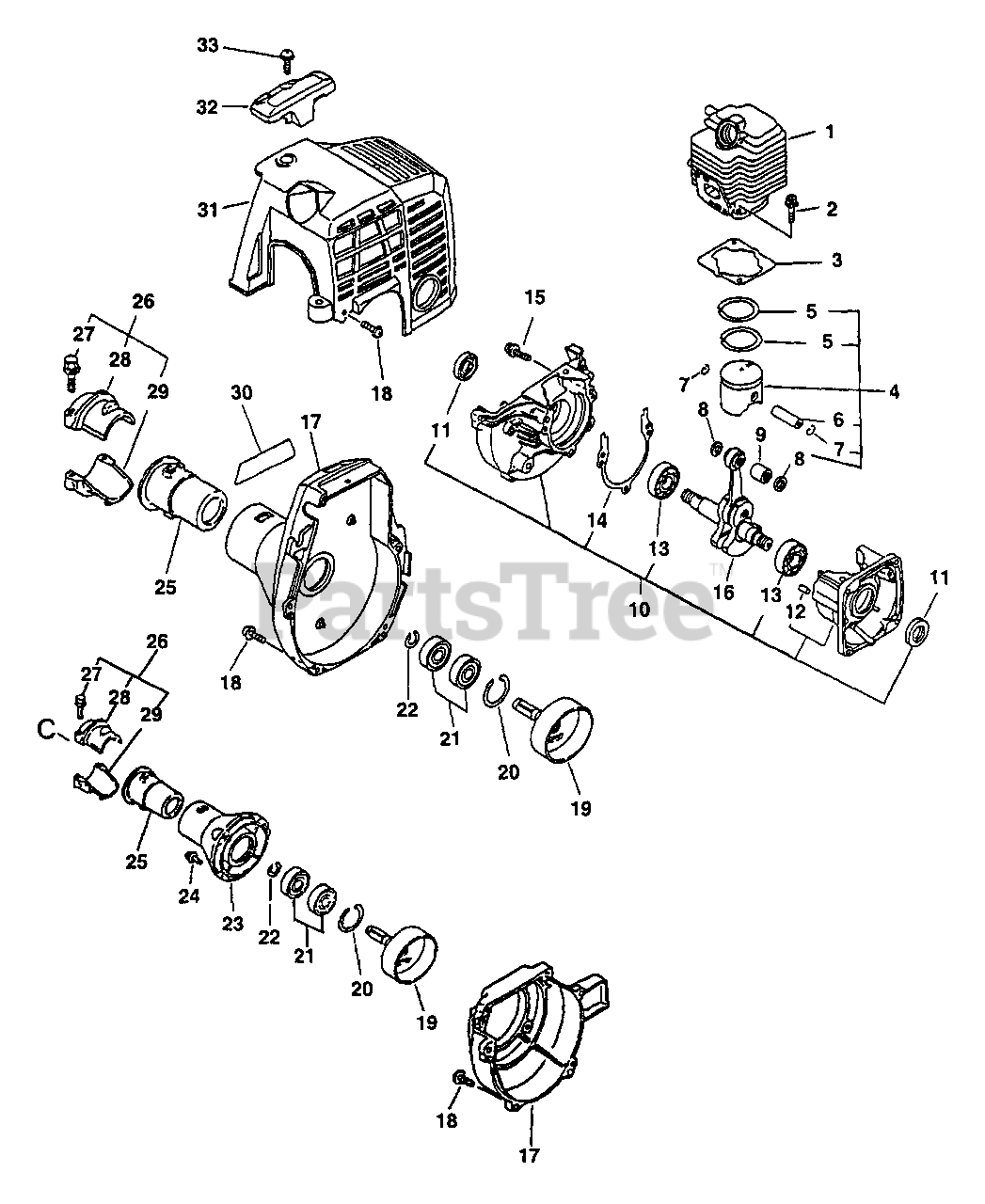

SRM-2410 - Echo String Trimmer (Type 1) Crankcase, Engine, Fan Case Parts Diagram

String Trimmer (Type 1)

Crankcase, Engine, Fan Case Parts Diagram

  • Title

1

Echo 10101109560

CYLINDER
(Superseded to 10101108960)

Note: S/N 001001 - 161628

$

$

Not available

1

Echo 10101108960

CYLINDER
(Superseded to 10100308960)

Note: S/N 161629 & UP

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

3

Echo 10101044332

GASKET, CYLINDER

Note: SEE "EXHAUST" illustration and parts list

$4.99

$

In Stock, Qty 12

0

4

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: INCLUDES ITEMS 5 - 8

$84.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

9

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

10

------------------

CRANKCASE KIT

Note: INCLUDES ITEMS 11 - 15. (USE P/N SB1027)

$

$

Not available

11

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

13

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

14

------------------

GASKET, CRANKCASE

Note: SEE "EXHAUST" illustration and parts list

$

$

Not available

15

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

16

------------------

CRANKSHAFT ASSY

Note: (S/N 001001 - 161628). INCLUDES ITEM 9. (USE P/N SB1027)

$

$

Not available

16

------------------

CRANKSHAFT ASSY

Note: (S/N 161629 & UP). INCLUDES ITEM 9. (USE P/N SB1027)

$

$

Not available

17

Echo 10151149230

CASE, FAN - GRAY

Note: S/N 001001 - 065999

$57.99

$

Usually ships in 2-4 days

0

17

Echo 10150352130

FAN CASE ASSY
(Superseded to 10150452130)

Note: S/N 066000 - 117016

$

$

Not available

17

Echo 10150352131

CASE, FAN

Note: S/N 117017 & UP

$78.99

$

Usually ships in 2-4 days

0

18

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

19

Echo 17500549230

DRUM, CLUTCH
(Superseded to 17500544730)

Note: S/N 001001 - 016000

$

$

Not available

19

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

Note: S/N 016001 & UP

$16.99

$

In Stock, Qty 5

0

20

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

21

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

22

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

23

Echo 61022349230

CASE, CLUTCH - GRAY

Note: S/N 001001 - 065999

$67.99

$

Usually ships in 2-4 days

0

24

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

25

Echo 61091027832

CUSHION

Note: S/N 001001 - 117016

$9.49

$

In Stock, only 2 left!

0

25

Echo 61091055230

CUSHION

Note: S/N 117017 & UP

$8.49

$

In Stock, only 1 left!

0

26

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: (S/N 001001 - 117016). INCLUDES ITEMS 27-29

$11.99

$

Usually ships in 2-4 days

0

26

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: KIT

$21.99

$

Usually ships in 2-4 days

0

27

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 9

0

28

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

29

Echo 61092327432

CLAMP, MAIN PIPE

Note: (S/N 001001 - 117016)

$7.49

$

Usually ships in 2-4 days

0

29

Echo A575000100

CLAMP, MAIN PIPE - LOWER

Note: (S/N 117017 & UP)

$9.99

$

Usually ships in 2-4 days

0

30

Echo 89011552130

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

31

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

Note: S/N 001001 - 015999

$23.99

$

In Stock, only 2 left!

0

31

Echo 10151452630

COVER, ENGINE
(Superseded to Discontinued)

Note: S/N 016000 - 161628

$

$

Not available

31

Echo 10151448930

COVER, ENGINE

Note: S/N 161629 & UP

$14.99

$

In Stock, only 2 left!

0

32

Echo 15991254130

GUARD - TOP

$9.49

$

In Stock, only 3 left!

0

33

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

$

$

Not available

Echo 90051

RePower TUNE-UP KIT
(Superseded to Discontinued)

Note: ENGINE REPOWER. S/N 016001 - 102000. INCLUDES THE FOLLOWING

$

$

Not available

Echo 13031052130

FILTER, AIR

Note: ENGINE REPOWER.

$17.99

$

In Stock, only 2 left!

0

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: ENGINE REPOWER.

$6.49

$

In Stock, Qty 20+

0

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

Note: ENGINE REPOWER.

$8.99

$

In Stock, Qty 20+

0

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

Note: ENGINE REPOWER.

$3.99

$

In Stock, Qty 20+

0

Echo 99988800079M

GD OIL, 1 GAL. MIX

Note: ENGINE REPOWER.

$

$

Currently unavailable
