SRM-2410 - Echo String Trimmer (Type 1) Gear Case, Shields, Tools Parts Diagram

String Trimmer (Type 1)

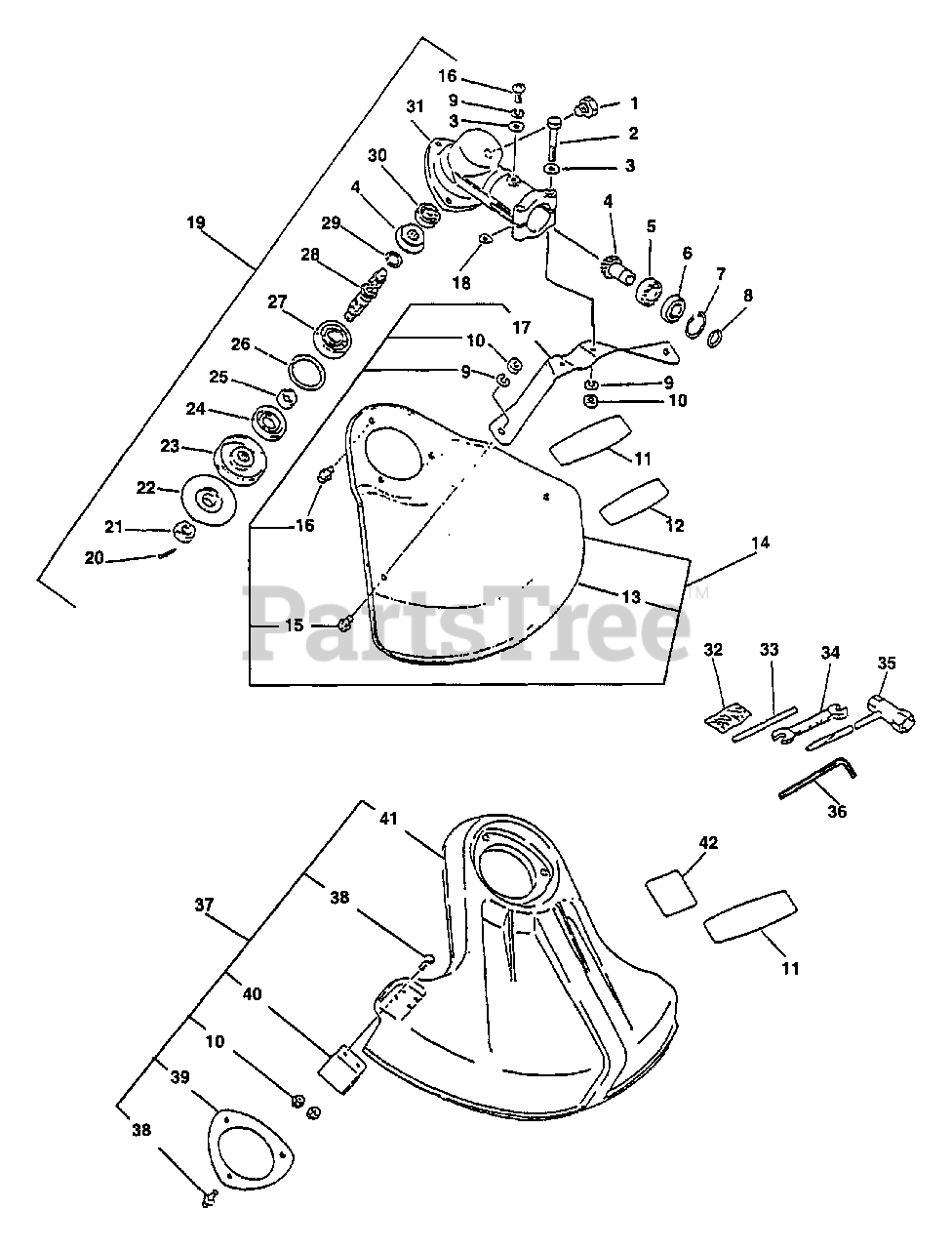

Gear Case, Shields, Tools Parts Diagram

  • Title

1

Echo 90010008008

BOLT - 8X8

Note: S/N 001001 - 102000

$0.99

$

In Stock, Qty 10

0

1

Echo 61043450030

BOLT - 8X6
(Superseded to 90010008008)

Note: S/N 102001 & UP

$0.99

$

In Stock, Qty 10

0

2

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 10

0

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 61030044830

GEAR SET - BEVEL

$98.99

$

Usually ships in 2-4 days

0

5

Echo 90085506900

BEARING, BALL - 6900

$20.99

$

In Stock, only 2 left!

0

6

Echo 90085806900

BEARING, BALL - 6900Z

$25.99

$

In Stock, only 3 left!

0

7

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 15

0

8

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 8

0

9

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 6

0

12

Echo 89016841031

LABEL - DANGER

$2.49

$

Usually ships in 2-4 days

0

13

Echo C550000200

SHIELD, DEBRIS - METAL

$16.99

$

In Stock, only 2 left!

0

14

Echo 69900023431

DEBRIS SHIELD KIT - METAL
(Superseded to 69900023432)

Note: INCLUDES ITEMS 9, 10, 13, 15 - 17

$25.99

$

In Stock, only 3 left!

0

15

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 10

0

16

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

17

Echo 69901523431

BRACKET, SHIELD

$11.99

$

Usually ships in 2-4 days

0

18

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

19

Echo 61040240930

GEAR CASE ASSY
(Superseded to 61040240932)

Note: INCLUDES ITEMS 1 - 9, 16, 18, 20 - 31

$175.99

$

Usually ships in 2-4 days

0

20

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

21

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 20+

0

22

Echo C535000150

ADAPTOR, BLADE - LOWER

$10.99

$

In Stock, Qty 20+

0

23

Echo 61033808930

ADAPTOR, BLADE - UPPER
(Superseded to C535000160)

$11.99

$

In Stock, Qty 20+

0

24

Echo 61041307130

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

25

Echo 61031507130

SPACER

$4.49

$

In Stock, Qty 7

0

26

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 10

0

27

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 12

0

28

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$74.99

$

In Stock, only 3 left!

0

29

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

30

Echo 90080000609

BEARING, BALL - 609

$10.99

$

In Stock, Qty 6

0

31

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

32

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, Qty 12

0

33

Echo 89751801131

LOCKING TOOL

$1.49

$

Usually ships in 2-4 days

0

34

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

35

Echo X602000020

T-WRENCH - 17X19mm

$3.99

$

In Stock, Qty 6

0

36

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

37

Echo 69900440931

DEBRIS SHIELD KIT

Note: INCLUDES ITEMS 10, 38 - 41

$28.99

$

In Stock, Qty 5

0

38

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

39

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

$2.99

$

In Stock, Qty 10

0

40

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

41

Echo 69901027231

SHIELD, DEBRIS - PLASTIC

$8.99

$

Usually ships in 2-4 days

0

42

Echo 89016844330

LABEL - CAUTION

$3.49

$

Usually ships in 2-4 days

0
