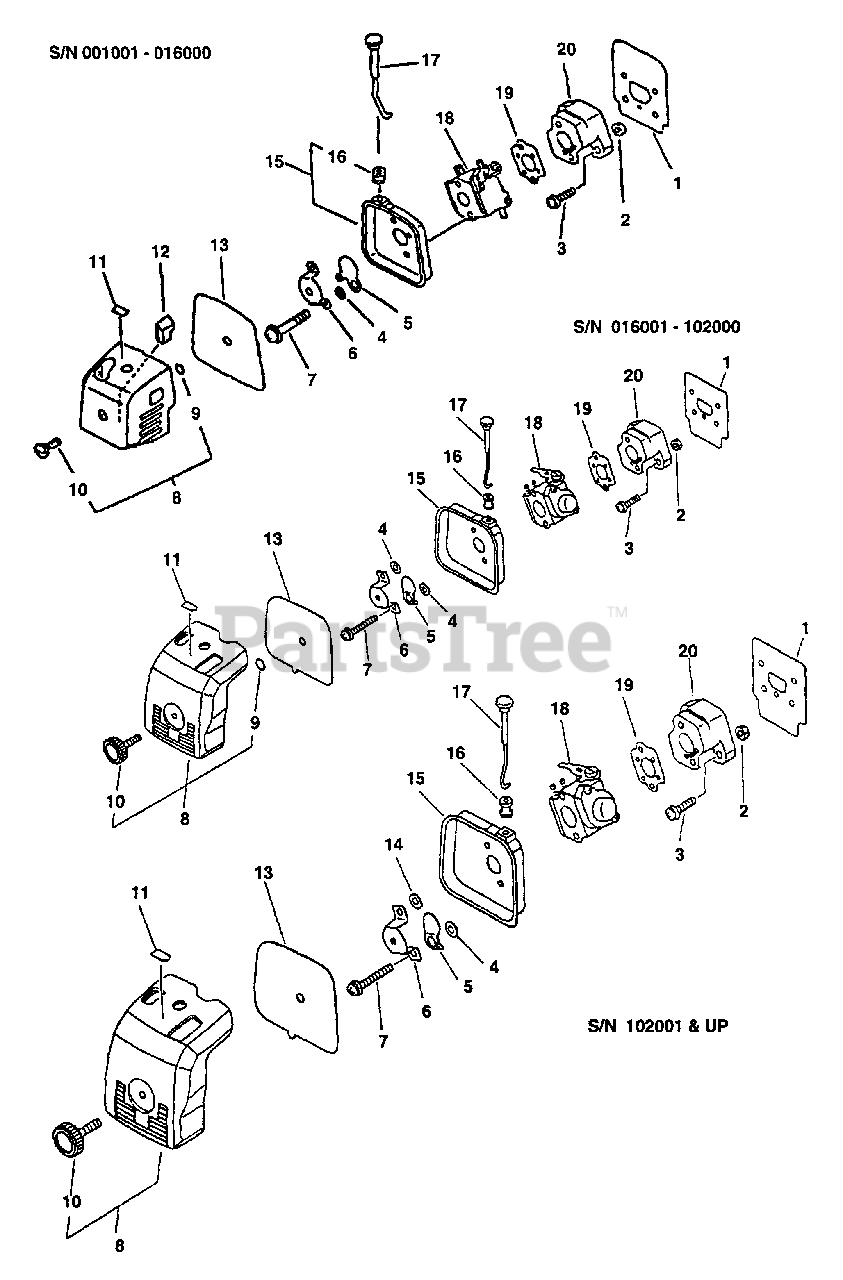

SRM-2410 - Echo String Trimmer (Type 1) Intake, Air Cleaner Parts Diagram

String Trimmer (Type 1)

Intake, Air Cleaner Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: SEE "EXHAUST" illustration and parts list

$2.99

$

In Stock, Qty 20+

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 10

0

4

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 17851504560

SHUTTER, CHOKE

Note: S/N 001001 - 016000

$2.99

$

In Stock, Qty 10

0

5

Echo 17851505060

SHUTTER, CHOKE

Note: S/N 016001 & UP

$3.49

$

In Stock, only 2 left!

0

6

Echo 13041044730

BRACKET, AIR CLEANER

Note: S/N 001001 - 016000

$11.99

$

Usually ships in 2-4 days

0

6

Echo 12901151730

PLATE, PREVENT
(Superseded to Discontinued)

Note: S/N 016001 - 102000

$

$

Not available

6

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

Note: S/N 102001 & UP

$6.49

$

In Stock, only 1 left!

0

7

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, only 4 left!

0

8

Echo 13030250630

AIR FILTER COVER ASSY

Note: INCLUDES ITEMS 9 & 10

$12.99

$

In Stock, only 3 left!

0

8

Echo 13030248930

AIR FILTER COVER ASSY
(Superseded to 13000151730)

Note: INCLUDES ITEMS 9 & 10

$

$

Not available

8

Echo 13030252130

AIR FILTER COVER ASSY
(Superseded to 13030252131)

Note: Includes ITEM 10

$17.99

$

In Stock, only 2 left!

0

9

Echo 90072000004

O-RING - 4

Note: S/N 001001 - 016000

$1.99

$

In Stock, Qty 13

0

9

Echo 90072000003

O-RING - 3

Note: S/N 016001 - 102000

$1.49

$

In Stock, only 4 left!

0

10

Echo 13041540630

SCREW

Note: S/N 001001 - 016000

$3.49

$

In Stock, only 1 left!

0

10

Echo 13040616331

THUMBSCREW

Note: S/N 016001 - 150505

$6.49

$

Usually ships in 2-4 days

0

10

Echo 13040652131

THUMBSCREW

Note: S/N 150506 & UP

$6.49

$

In Stock, Qty 20+

0

11

Echo X506000070

LABEL - CHOKE

Note: S/N 001001 - 016000

$0.99

$

In Stock, Qty 7

0

11

Echo 89012152130

LABEL - CHOKE
(Superseded to Discontinued)

Note: S/N 016001 & UP

$

$

Not available

12

Echo 13033652130

PLUG

$2.99

$

In Stock, only 1 left!

0

13

Echo 13031004560

FILTER, AIR

Note: S/N 001001 - 016000

$5.99

$

In Stock, Qty 5

0

13

Echo 13031048930

FILTER, AIR

Note: S/N 016001 - 037399

$10.99

$

Usually ships in 2-4 days

0

13

Echo 13031052130

FILTER, AIR

Note: (S/N 037400 - 102000). INCLUDED IN KIT P/N 90009

$17.99

$

In Stock, only 2 left!

0

13

Echo 13031051830

FILTER, AIR - HEAVY DUTY

Note: (S/N 102001 & UP). INCLUDED IN KIT P/N 90030

$8.49

$

In Stock, Qty 20+

0

14

Echo 90060000005

WASHER - 5

Note: S/N 102001 & UP

$0.99

$

In Stock, Qty 20+

0

15

Echo 13030104560

CASE, AIR FILTER

Note: (S/N 001001 - 016000). INCLUDES ITEM 16

$10.99

$

In Stock, only 2 left!

0

15

Echo 13031448930

CASE, AIR FILTER

Note: S/N 016001 - 102000

$12.99

$

Usually ships in 2-4 days

0

15

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

Note: S/N 102001 & UP

$

$

Not available

16

Echo 17881005230

GROMMET

$2.49

$

In Stock, Qty 5

0

17

Echo 17851048830

ROD, CHOKE

Note: S/N 001001 - 016000

$8.99

$

In Stock, only 2 left!

0

17

Echo 17851051730

ROD, CHOKE

Note: S/N 016001 & UP

$7.99

$

In Stock, only 4 left!

0

18

Echo 12520052131

CARBURETOR C1U-K23A
(Superseded to 12520013313)

Note: S/N 001001 - 161628

$94.99

$

In Stock, Qty 13

0

18

Echo 12300052131

CARBURETOR WT-424A
(Superseded to 12300052132)

Note: S/N 161629 & UP

$113.99

$

In Stock, only 4 left!

0

19

Echo 13001642031

GASKET, INTAKE

Note: (S/N 001001 - 161628). SEE "EXHAUST" illustration and parts list

$1.49

$

In Stock, Qty 20+

0

19

Echo 13001005960

GASKET, INTAKE

Note: (S/N 161629 & UP). SEE "EXHAUST" illustration and parts list

$1.99

$

In Stock, Qty 9

0

20

Echo 13001742031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 10

0
