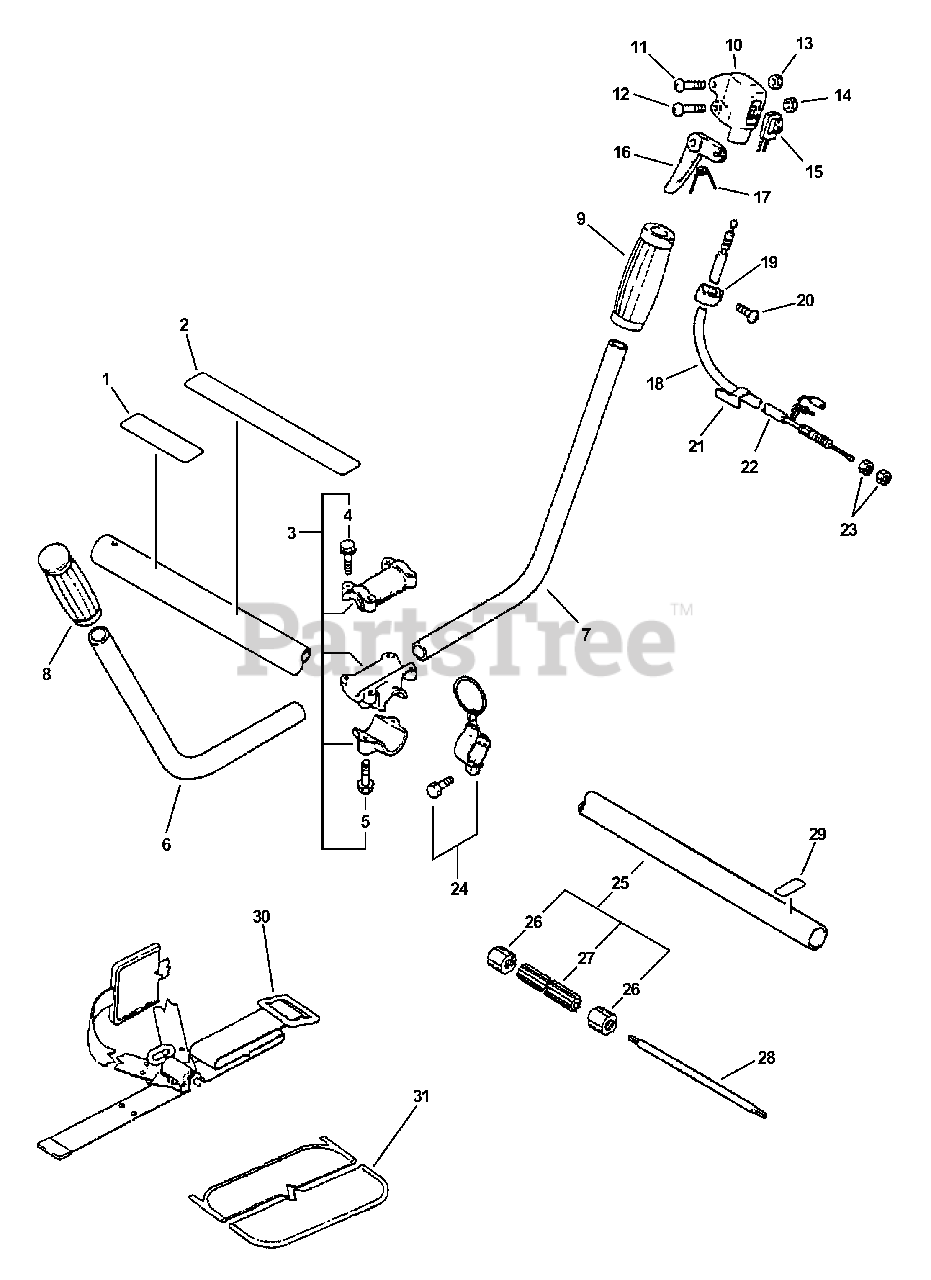

SRM-2410 - Echo String Trimmer (Type 1E) Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 001001-503953 Parts Diagram

String Trimmer (Type 1E)

Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 001001-503953 Parts Diagram

  • Title

1

Echo 89017740630

LABEL - CAUTION
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0

2

Echo 89016054130

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

3

Echo P021000460

HANDLE BRACKET KIT

Note: INCLUDES ITEMS 4-5

$34.99

$

Usually ships in 2-4 days

0

4

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 9

0

5

Echo 90014206030

BOLT - 6X30

$0.99

$

Usually ships in 2-4 days

0

6

Echo 35121005530

HANDLE, FRONT - LEFT

$

$

Not available

7

Echo 35101005530

HANDLE

$33.99

$

Usually ships in 2-4 days

0

8

Echo 35131102330

GRIP, HANDLE - LEFT

$7.49

$

In Stock, only 2 left!

0

9

Echo 35131522130

GRIP, HANDLE

$12.99

$

In Stock, only 1 left!

0

10

Echo 17802451830

BRACKET, THROTTLE CONTROL

$8.49

$

Usually ships in 2-4 days

0

11

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, Qty 19

0

12

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 13

0

13

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

14

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 16340149230

IGNITION SWITCH ASSY
(Superseded to A440000340)

$14.99

$

In Stock, only 1 left!

0

16

Echo 17801006460

TRIGGER, THROTTLE

$5.99

$

In Stock, only 2 left!

0

17

Echo 17804305230

SPRING, TRIGGER

$0.99

$

In Stock, only 3 left!

0

18

Echo 17800141330

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

19

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

20

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

21

Echo 17811104930

BRACKET

$1.99

$

Usually ships in 2-4 days

0

22

Echo 17812708030

TUBE
(Superseded to V475002270)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 90050300006

NUT - 6

$0.99

$

In Stock, Qty 5

0

24

Echo C646000060

HANGER KIT
(Superseded to P021046740)

$3.99

$

In Stock, Qty 20+

0

25

Echo 61060944730

MAIN PIPE ASSY

Note: INCLUDES ITEMS 26-27

$55.99

$

Usually ships in 2-4 days

0

26

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

27

Echo C507000260

LINER - FLEXIBLE
(Superseded to C507000430)

$30.99

$

Usually ships in 2-4 days

0

28

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$20.99

$

In Stock, only 2 left!

0

29

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0

30

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$25.99

$

In Stock, only 2 left!

0

31

Echo C652000000

CUSHION

$28.99

$

Usually ships in 2-4 days

0
