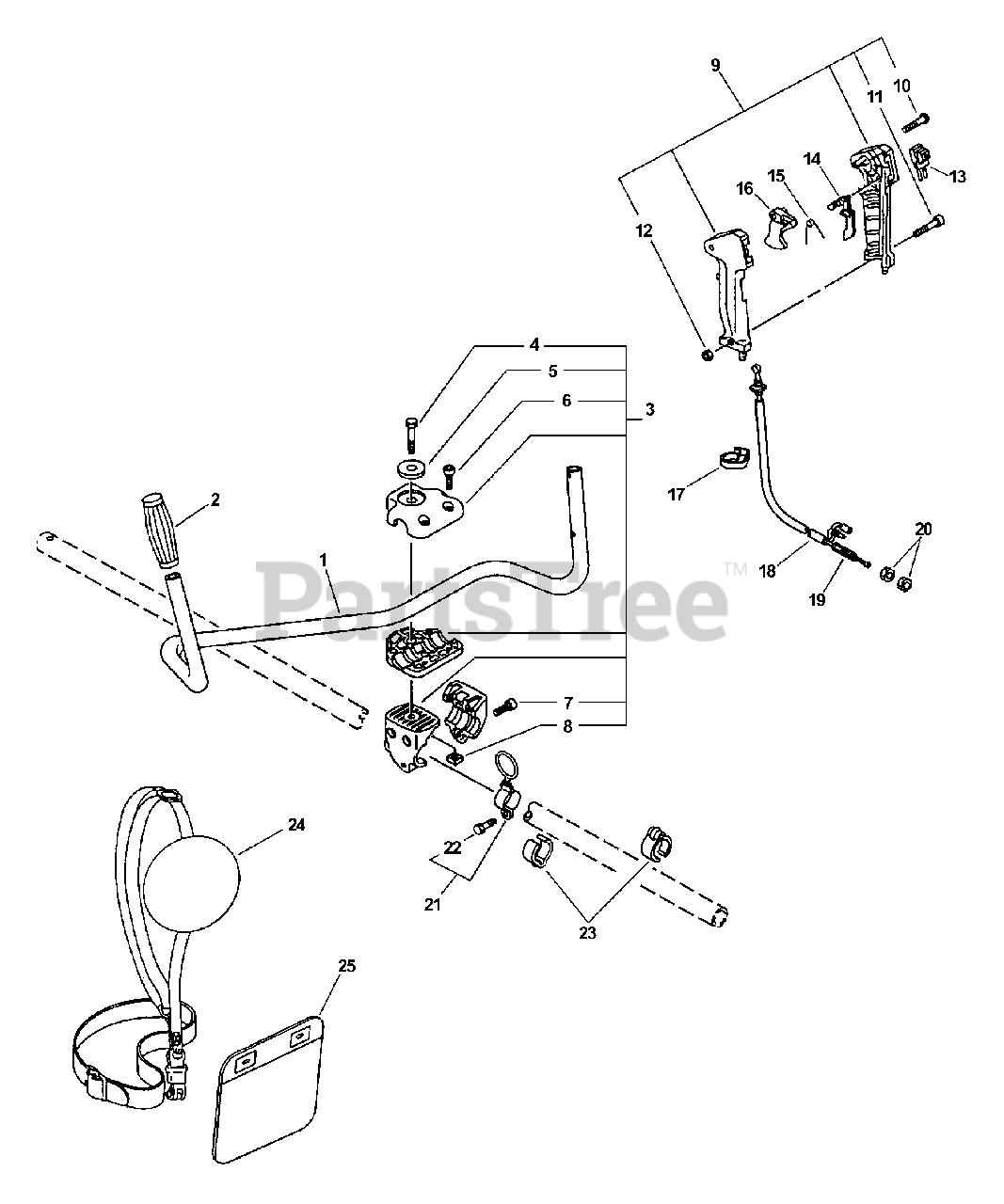

SRM-2410 - Echo String Trimmer (Type 1E) Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 503954 - 599999 Parts Diagram

String Trimmer (Type 1E)

Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 503954 - 599999 Parts Diagram

  • Title

1

Echo C400000000

HANDLE - FRONT

$95.99

$

In Stock, only 1 left!

0

2

Echo 35131102330

GRIP, HANDLE - LEFT

$6.49

$

In Stock, Qty 10

0

3

Echo P021012791

HANDLE BRACKET KIT

Note: INCLUDES ITEMS 4-8

$88.99

$

Usually ships in 2-4 days

0

4

Echo 35142152130

BOLT - 8X55

$2.99

$

Usually ships in 2-4 days

0

5

Echo 60501454230

WASHER - 8

$3.49

$

Usually ships in 2-4 days

0

6

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

7

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 5

0

8

Echo 90056550008

NUT - 8

$1.49

$

Usually ships in 2-4 days

0

9

Echo 35110247530

THROTTLE CONTROL ASSY

Note: Includes ITEMS 10-12

$34.99

$

Usually ships in 2-4 days

0

10

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

11

Echo 90022005030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 16340048030

IGNITION SWITCH ASSY
(Superseded to A440000310)

$10.99

$

Usually ships in 2-4 days

0

14

Echo 17801205960

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 1 left!

0

15

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 13

0

16

Echo 17801005960

TRIGGER, THROTTLE

$5.49

$

In Stock, Qty 9

0

17

Echo 15911209961

CLIP

$3.99

$

Usually ships in 2-4 days

0

18

Echo V475000000

TUBE, PROTECTIVE - CORRUGATED

$5.49

$

Usually ships in 2-4 days

0

19

Echo 17800147530

CABLE, THROTTLE

Note: S/N: 001001-503484

$14.99

$

Usually ships in 2-4 days

0

19

Echo 17800156430

CABLE, THROTTLE

Note: S/N: 503485 & UP

$16.99

$

In Stock, only 3 left!

0

20

Echo 90050300006

NUT - 6

$0.99

$

In Stock, Qty 6

0

21

Echo C646000060

HANGER KIT
(Superseded to P021046740)

Note: Includes ITEM 22

$3.49

$

In Stock, Qty 20+

0

22

Echo 90010005012

BOLT - 5X12

$0.99

$

In Stock, Qty 5

0

23

Echo 22492452130

CLIP

$6.99

$

In Stock, only 3 left!

0

24

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$21.99

$

In Stock, Qty 5

0

25

Echo C652000000

CUSHION

$24.99

$

Usually ships in 2-4 days

0
