SRM-2410 - Echo String Trimmer (Type 1E) Engine, Crankcase, Cylinder Cover Parts Diagram

String Trimmer (Type 1E)

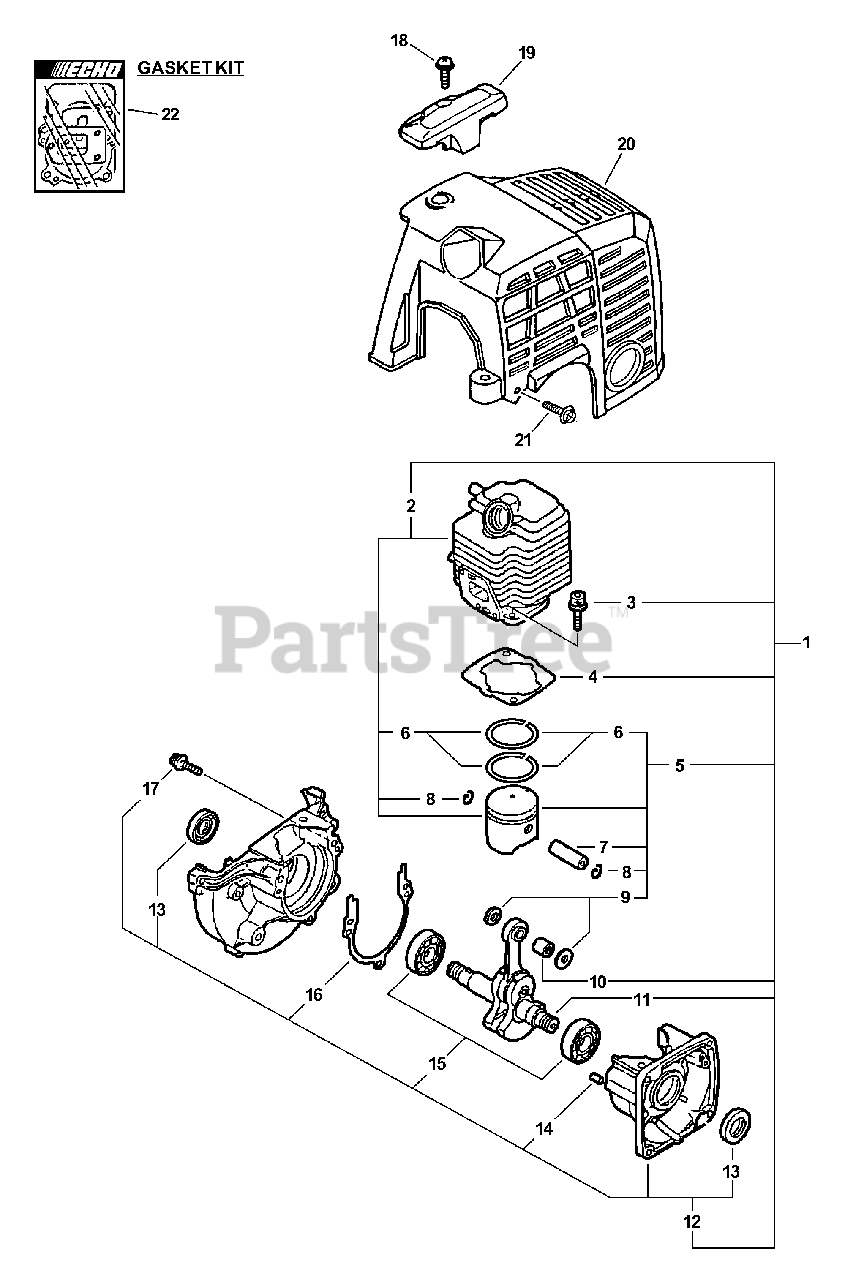

Engine, Crankcase, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1027

SHORT BLOCK ES-2400
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 10100308960

CYLINDER/PISTON KIT
(Superseded to P021035810)

Note: INCLUDES CYLINDER, PISTON, & ITEMS 6 & 8

$

$

Not available

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

4

Echo 101010-44332

GASKET, CYLINDER

Note: Included In GASKET KIT

$4.99

$

In Stock, Qty 7

0

5

Echo 10000009563

PISTON KIT
(Superseded to 10000052130)

Note: Includes ITEMS 6-9

$84.99

$

In Stock, only 1 left!

0

6

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

11

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

$186.99

$

Usually ships in 2-4 days

0

12

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 13-17

$157.99

$

Usually ships in 2-4 days

0

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

16

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

17

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

18

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

19

Echo 15991254130

GUARD, TOP

$9.49

$

In Stock, only 3 left!

0

20

Echo 10151448930

COVER, ENGINE

$14.99

$

In Stock, only 2 left!

0

21

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

22

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

Note: S/N: SRM-2400 -- 001001-562999 & SRM-2410 -- 001001-503485

$

$

Not available

22

Echo 88900004861

GASKET KIT
(Superseded to Discontinued)

Note: S/N: SRM-2400 -- 563000 & UP & SRM-2410 -- 503486 & UP

$

$

Not available
