SRM-2410 - Echo String Trimmer (Type 1E) Gear Case, Shield, Tools Parts Diagram

String Trimmer (Type 1E)

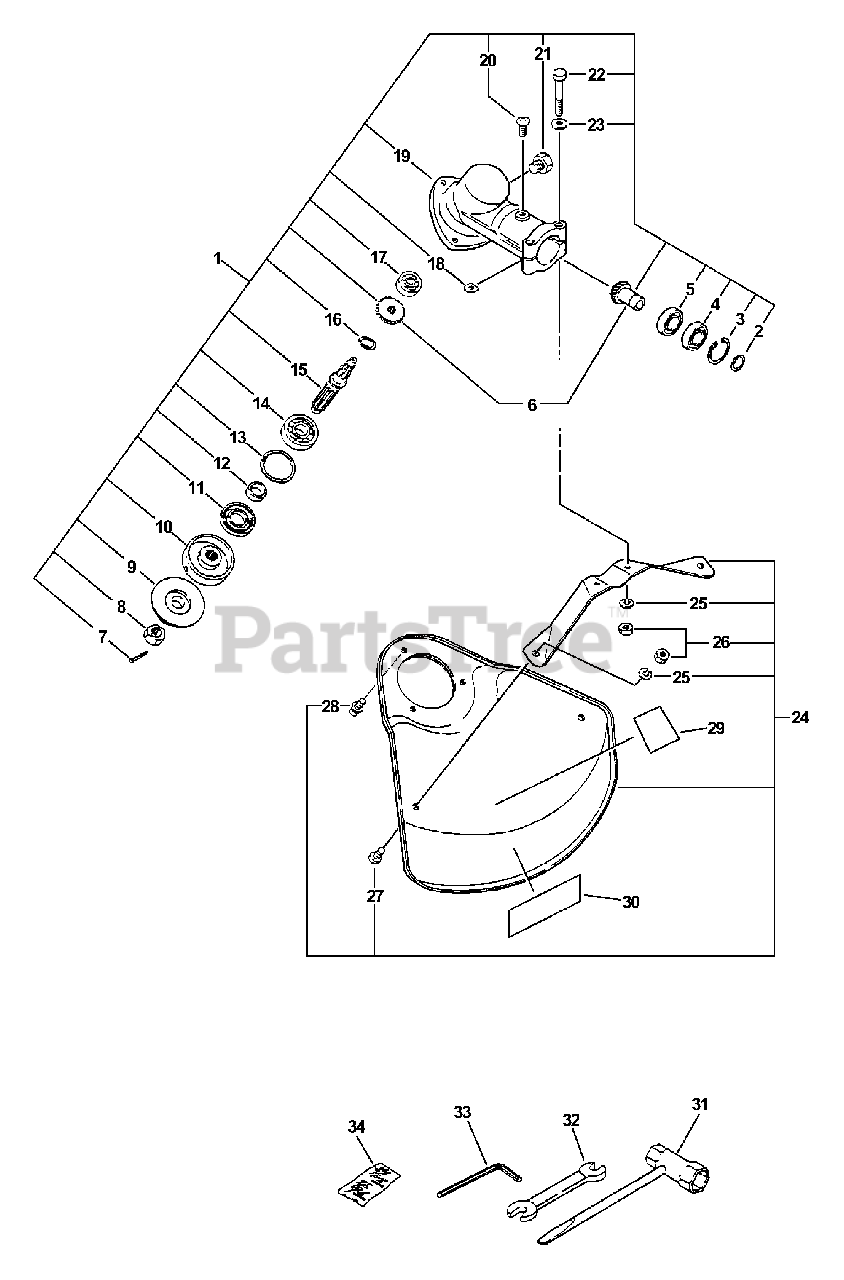

Gear Case, Shield, Tools Parts Diagram

  • Title

1

Echo 61040240930

GEAR CASE ASSY
(Superseded to 61040240932)

Note: INCLUDES ITEMS 2-23

$189.99

$

In Stock, only 1 left!

0

2

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

3

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

4

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

5

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

6

Echo 61030044830

GEAR SET

$106.99

$

Usually ships in 2-4 days

0

7

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

8

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

9

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

10

Echo 61033808930

PLATE, ADAPTER - UPPER
(Superseded to C535000160)

Note: SRM-2410 WITH BLADE ONLY

$12.99

$

In Stock, Qty 16

0

11

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

12

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

13

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

14

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

15

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

16

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

17

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

18

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

19

Echo 61046027430

HOUSING, GEAR CASE
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

20

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

22

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

23

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 69900023431

SHIELD ASSY
(Superseded to 69900023432)

Note: INCLUDES ITEMS 25-28

$27.99

$

In Stock, only 2 left!

0

25

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

26

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

27

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

28

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

29

Echo 89011848830

LABEL, ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 5

0

30

Echo 89016841031

LABEL, DANGER

$2.49

$

Usually ships in 2-4 days

0

31

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

32

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

33

Echo 89561203430

WRENCH, ALLEN 3 MM
(Superseded to X605000090)

$0.99

$

In Stock, only 2 left!

0

34

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

Note: BULK OPTION: 89850201130 - 10 PACK

$1.99

$

In Stock, only 3 left!

0
