SRM-2450 - Echo String Trimmer (Type 1) Engine, Crankcase, Fan Housing Cover Parts Diagram

String Trimmer (Type 1)

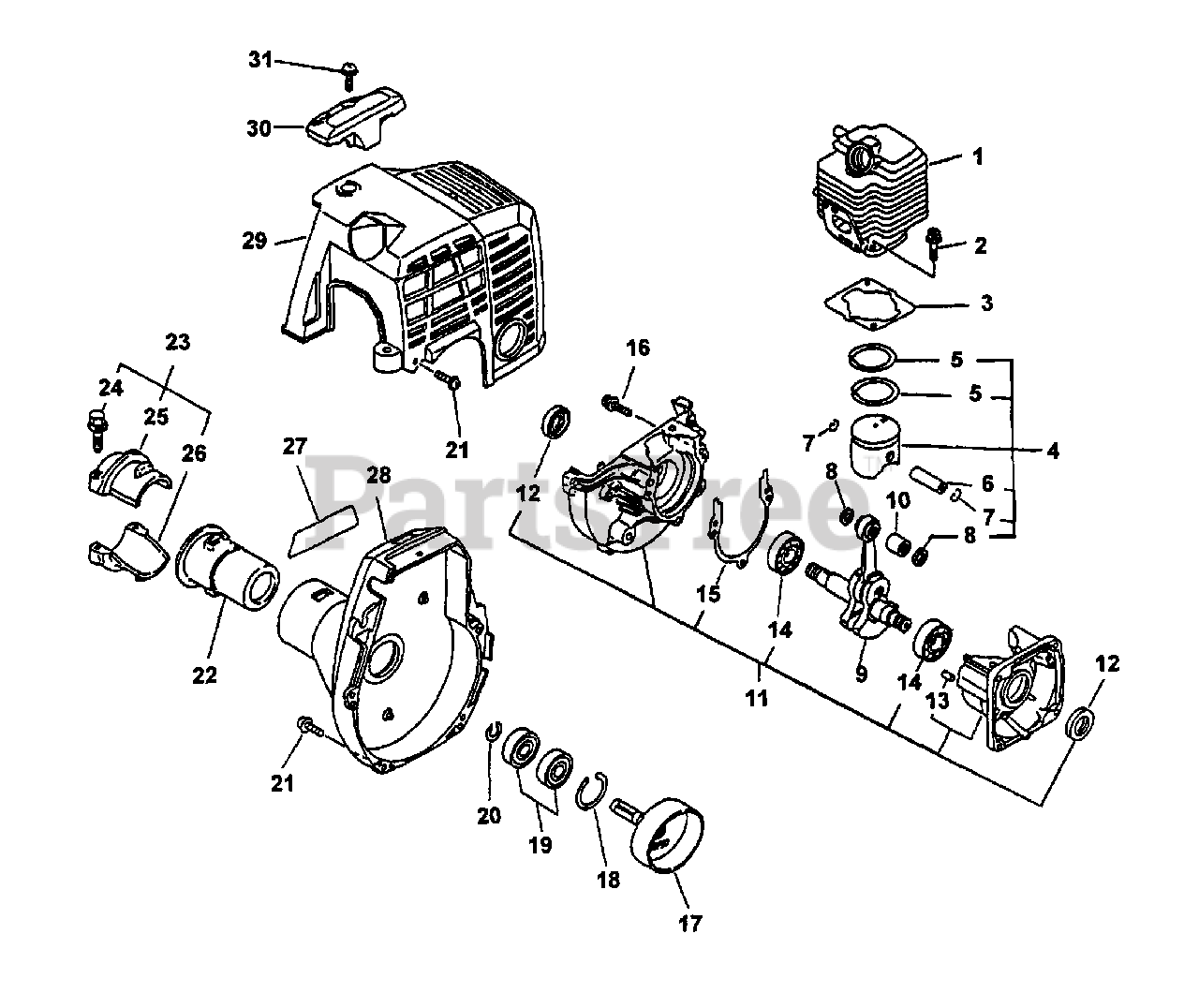

Engine, Crankcase, Fan Housing Cover Parts Diagram

  • Title

1

Echo 10101108960

CYLINDER
(Superseded to 10100308960)

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

3

Echo 10101044332

GASKET, CYLINDER

Note: USE GASKET KIT P/N 88900005960

$4.99

$

In Stock, Qty 12

0

4

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: INCLUDES ITEMS 5 - 8

$84.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

9

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

Note: Includes ITEM 10

$186.99

$

Usually ships in 2-4 days

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

11

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 12-16

$

$

Not available

12

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

14

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

15

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900005960

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

17

Echo 17500552130

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

18

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

19

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

20

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

22

Echo 61091055230

CUSHION

$8.49

$

In Stock, only 1 left!

0

23

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: INCLUDES ITEMS 24 - 26

$21.99

$

Usually ships in 2-4 days

0

24

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 9

0

25

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

26

Echo A575000100

CLAMP, MAIN PIPE - LOWER

$9.99

$

Usually ships in 2-4 days

0

27

Echo 89013556030

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

28

Echo 10150352131

CASE, FAN

$78.99

$

Usually ships in 2-4 days

0

29

Echo 10151456030

COVER, ENGINE

$22.99

$

Usually ships in 2-4 days

0

30

Echo 15991248930

GUARD - TOP

$7.99

$

Usually ships in 2-4 days

0

31

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

$

$

Not available

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 12

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

Echo 13001005960

GASKET, INTAKE

Note: INCLUDES ITEMS 3 & 15

$1.99

$

In Stock, Qty 9

0

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, only 4 left!

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 61041401260

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 11

0
