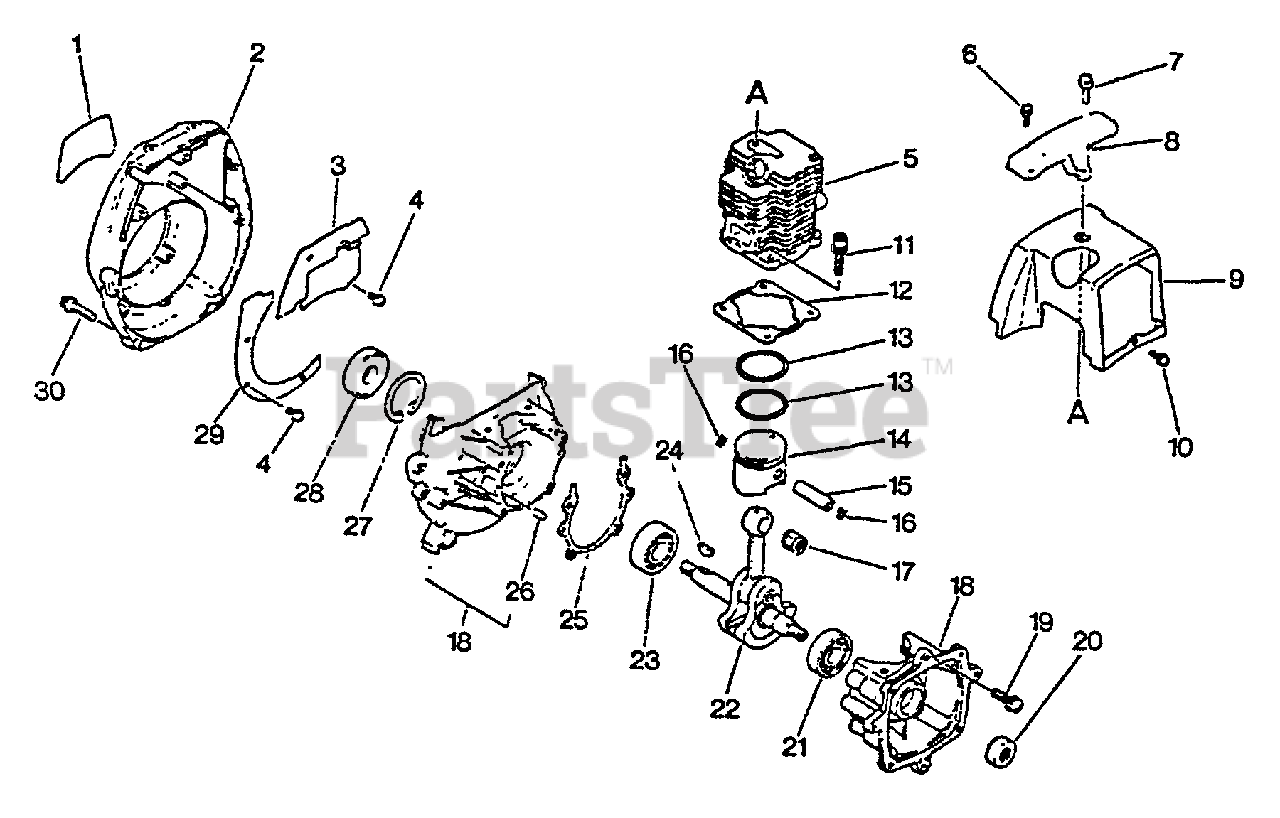

SRM-2501 - Echo String Trimmer (SN: 025001 - 043000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 89011249330

LABEL, MODEL

$

$

Not available

2

Echo 10151149330

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

3

Echo 10153440930

PLATE, GUIDE

$10.99

$

Usually ships in 2-4 days

0

4

Echo 90023804008

SCREW 4×8

$0.99

$

In Stock, only 2 left!

0

5

Echo 10101122330

CYLINDER

$241.99

$

Usually ships in 2-4 days

0

6

Echo 90023804014

SCREW 4×14

$0.99

$

In Stock, Qty 6

0

7

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

8

Echo 15990540930

GUARD, TOP

$14.99

$

Usually ships in 2-4 days

0

9

Echo 10151449330

COVER, ENGINE

$13.99

$

Usually ships in 2-4 days

0

10

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

11

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

12

GASKET, CYLINDER

Note: Included In GASKET KIT

$

$

Not available

13

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

14

Echo 10001022330

PISTON
(Superseded to 10000022330)

$

$

Not available

15

Echo 10001322330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

16

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

17

Echo 10001222330

BEARING, NEEDLE
(Superseded to V553000040)

$11.99

$

Usually ships in 2-4 days

0

18

Echo 10020022331

CRANKCASE KIT

Note: INCLUDES ITEMS 25 & 26

$160.99

$

Usually ships in 2-4 days

0

19

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

20

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 11

0

21

Echo 90080036001

BEARING, BALL 6001

$11.99

$

In Stock, Qty 7

0

22

Echo 10010022430

CRANKSHAFT ASSY
(Superseded to 10010027830)

$309.99

$

Usually ships in 2-4 days

0

23

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

24

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

25

GASKET, CRANKCASE

Note: Included In GASKET KIT

$

$

Not available

26

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

27

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

28

Echo 10021203930

SEAL, OIL 12

$6.49

$

In Stock, Qty 9

0

29

Echo 10154140930

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

30

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0
