SRM-2501 - Echo String Trimmer (SN: 025001 - 043000) Fuel System Parts Diagram

String Trimmer

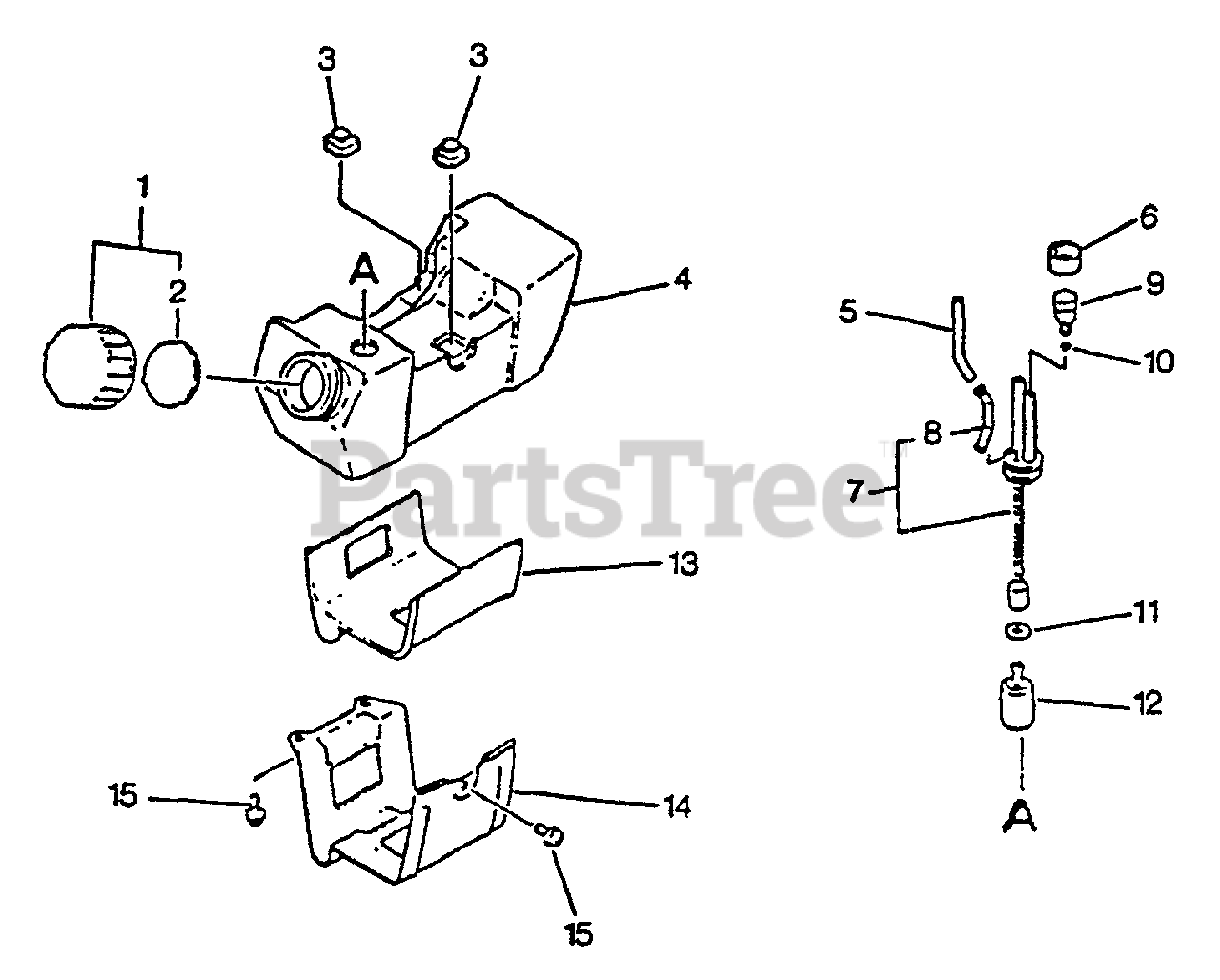

Fuel System Parts Diagram

  • Title

1

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 2

$5.49

$

In Stock, only 2 left!

0

2

Echo 13101640930

GASKET, CAP

$3.49

$

In Stock, Qty 9

0

3

Echo 13192522330

CUSHION
(Superseded to Discontinued)

$

$

Not available

4

Echo 13101049330

TANK, FUEL
(Superseded to 13101041930)

$

$

Not available

5

Echo 13201044830

PIPE - 3X6X45 -- CLEAR
(Superseded to Discontinued)

Note: RePower BULK OPTION: 90017

$

$

Not available

6

Echo 13132840630

COVER, VENT

$7.49

$

In Stock, Qty 20+

0

7

Echo 13200240930

FUEL SYSTEM KIT

Note: Includes ITEM 8

$12.99

$

In Stock, only 1 left!

0

8

Echo 13202140630

CONNECTOR, PIPE

$6.99

$

In Stock, only 2 left!

0

9

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 20+

0

10

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0

13

Echo 13192440930

CUSHION
(Superseded to Discontinued)

$

$

Not available

14

Echo 30511040930

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

15

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0
