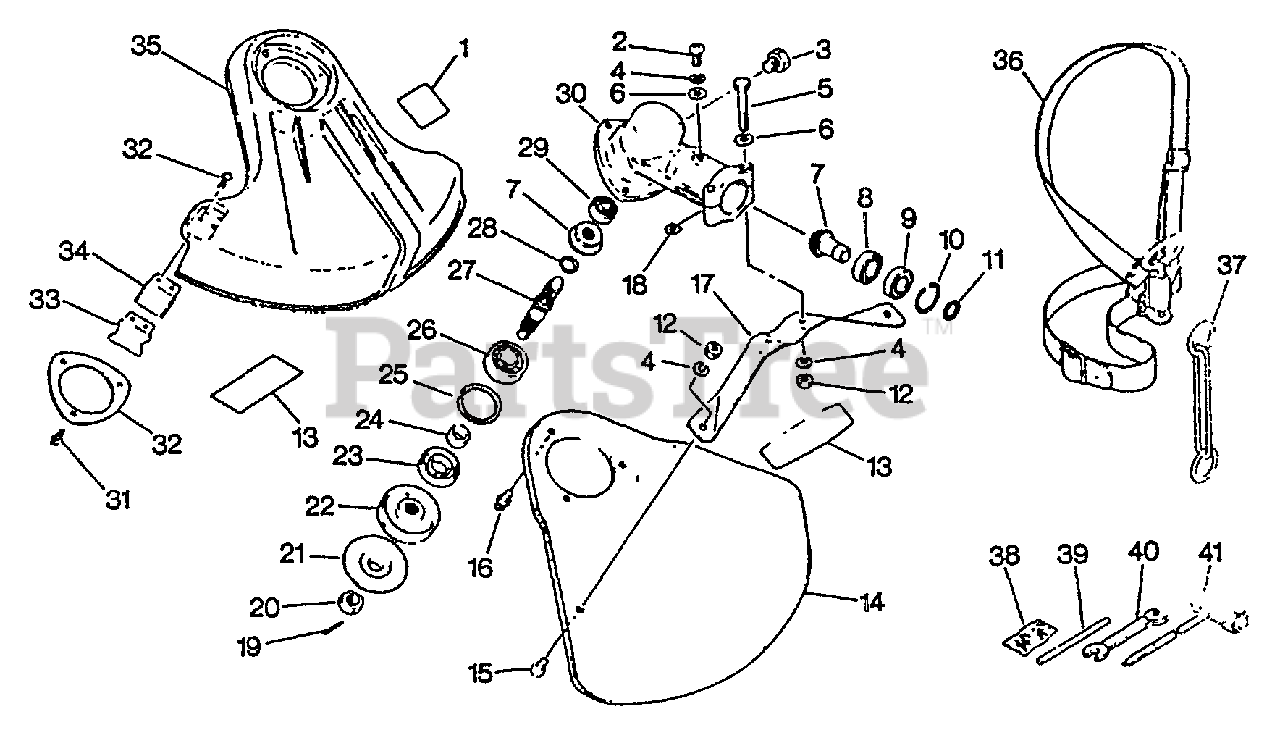

SRM-2501 - Echo String Trimmer (SN: 025001 - 043000) Gear Case, Shield, Harness, Tools Parts Diagram

String Trimmer

Gear Case, Shield, Harness, Tools Parts Diagram

  • Title

Echo 61040247732

GEAR CASE ASSY
(Superseded to 61040247733)

Note: Includes Items 2 - 12 & 18 - 31

$98.99

$

Usually ships in 2-4 days

0

1

Echo 89017740730

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

1

Echo 89035240830

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

2

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

3

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 10

0

4

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 7

0

5

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 9

0

6

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 61030044830

GEAR SET - BEVEL

$106.99

$

Usually ships in 2-4 days

0

8

Echo 90085506900

BEARING, BALL - 6900

$21.99

$

In Stock, only 2 left!

0

9

Echo 90085806900

BEARING, BALL - 6900Z

$27.99

$

In Stock, only 2 left!

0

10

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 14

0

11

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 89011848730

LABEL - ECHO
(Superseded to 89011848830)

$0.99

$

In Stock, Qty 6

0

14

Echo 69900020330

SHIELD ASSY - PLASTIC
(Superseded to Discontinued)

Note: Includes Items 15 - 17 & 36

$

$

Not available

15

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, only 3 left!

0

16

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

17

Echo 69901507532

BRACKET, SHIELD
(Superseded to 69901523532)

$8.49

$

Usually ships in 2-4 days

0

18

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

19

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 19

0

20

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.99

$

In Stock, Qty 20+

0

21

Echo C535000150

ADAPTOR, BLADE - LOWER

$10.99

$

In Stock, only 4 left!

0

22

Echo 61033808930

ADAPTOR, BLADE - UPPER
(Superseded to C535000160)

$12.99

$

In Stock, Qty 18

0

23

Echo 61041307130

SEAL, OIL

$6.99

$

In Stock, only 1 left!

0

24

Echo 61031507130

SPACER

$4.49

$

In Stock, only 1 left!

0

25

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

26

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

27

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

28

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

29

Echo 90080000609

BEARING, BALL - 609

$11.99

$

In Stock, Qty 5

0

30

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

31

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 13

0

31

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 13

0

32

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

$2.99

$

In Stock, only 3 left!

0

32

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

$2.99

$

In Stock, only 3 left!

0

33

Echo 69921223230

GUARD
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

34

Echo 69901623231

KNIFE, TRIMMER LINE
(Superseded to P021006080)

$1.99

$

In Stock, only 3 left!

0

34

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

35

Echo 69900040830

SHIELD, DEBRIS - PLASTIC
(Superseded to 69900040831)

Note: Includes Items 31 - 35

$30.99

$

In Stock, only 3 left!

0

35

Echo 69900040930

DEBRIS SHIELD KIT
(Superseded to 69900440931)

Note: Includes Items 12,31,32 & 34

$30.99

$

In Stock, only 3 left!

0

36

Echo 30100047730

SHOULDER STRAP ASSY
(Superseded to 30100052130)

Note: Includes ITEM 37

$25.99

$

In Stock, only 2 left!

0

37

Echo 30130524330

HOOK

$12.99

$

Usually ships in 2-4 days

0

38

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 3 left!

0

39

Echo 89751801131

LOCKING TOOL

$

$

Not available

40

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 6

0

41

Echo X602000020

T-WRENCH - 17X19mm

$4.49

$

In Stock, Qty 7

0
