SRM-2501 - Echo String Trimmer (SN: 025001 - 043000) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

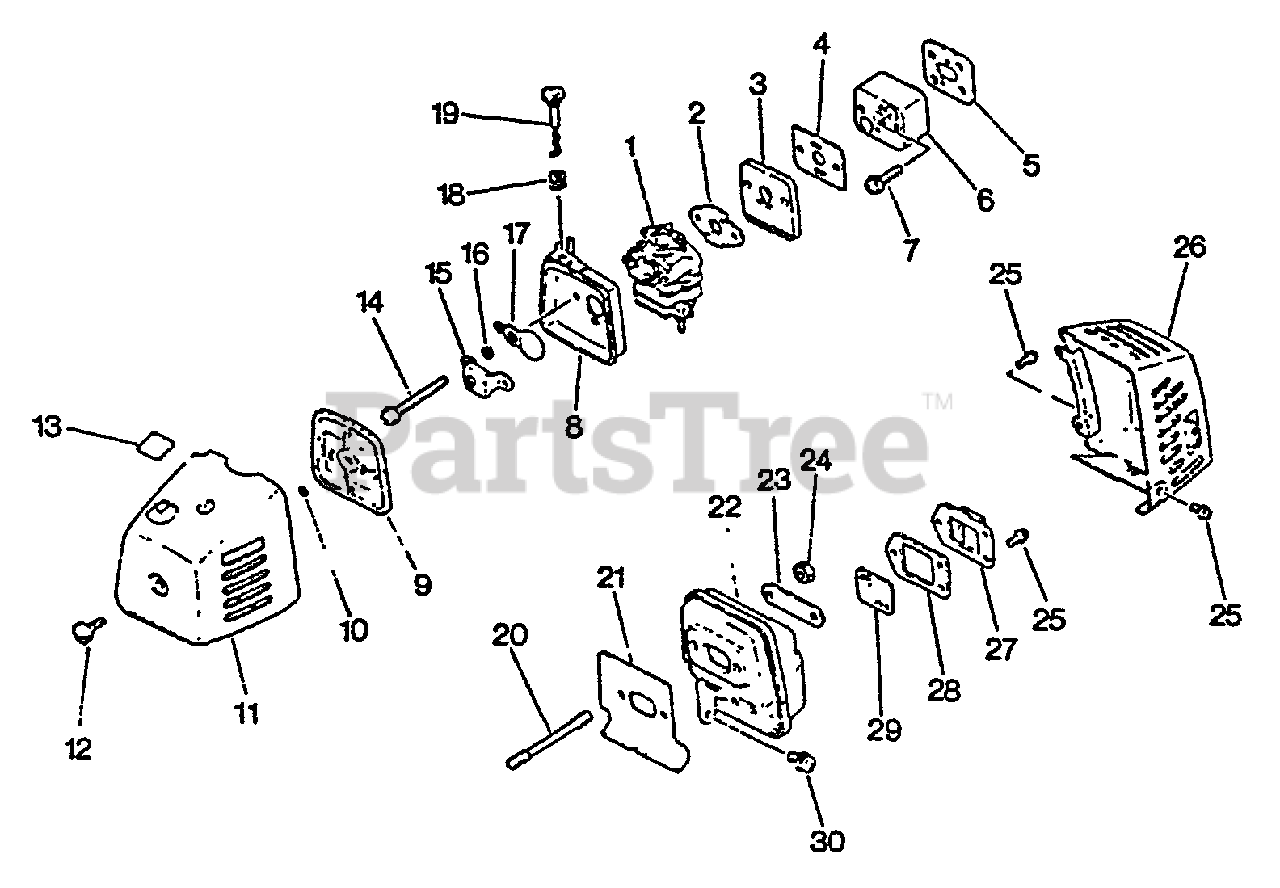

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 12300040930

CARBURETOR
(Superseded to 12300041030)

$

$

Not available

2

Echo 13001640931

GASKET

$0.99

$

In Stock, Qty 7

0

3

Echo 13002641030

PLATE
(Superseded to Discontinued)

$

$

Not available

4

Echo 13002240931

GASKET
(Superseded to Discontinued)

$

$

Not available

5

Echo 13001022331

GASKET
(Superseded to Discontinued)

$

$

Not available

6

Echo 13000740930

INSULATOR
(Superseded to Discontinued)

$

$

Not available

7

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

8

Echo 13031440930

CASE, AIR FILTER
(Superseded to 13030740930)

$13.99

$

Usually ships in 2-4 days

0

9

Echo 13031040930

FILTER, AIR

$13.99

$

In Stock, only 2 left!

0

10

Echo 90072000004

O-RING

$1.99

$

In Stock, Qty 13

0

11

Echo 13031340930

AIR FILTER COVER ASSY
(Superseded to 13030240930)

Note: Includes ITEMS 10-12

$

$

Not available

12

Echo 13041540630

SCREW

$3.49

$

In Stock, only 1 left!

0

13

Echo X506000070

LABEL, CHOKE

$0.99

$

In Stock, Qty 7

0

13

Echo 89012112330

LABEL - CHOKE

Note: CANADA MODELS

$0.99

$

Usually ships in 2-4 days

0

14

Echo 90023805050

SCREW 5×50

$0.99

$

In Stock, Qty 8

0

15

Echo 12900640930

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

16

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

17

Echo 17851540630

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

18

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

19

Echo 17851041030

ROD, CHOKE
(Superseded to 17851049130)

$

$

Not available

20

Echo 10101422330

BOLT, STUD

$1.99

$

Usually ships in 2-4 days

0

21

Echo 14551022331

GASKET, MUFFLER

$2.99

$

Usually ships in 2-4 days

0

22

Echo 14580627230

MUFFLER
(Superseded to Discontinued)

$

$

Not available

23

Echo 14564222330

WASHER

$1.99

$

Usually ships in 2-4 days

0

24

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

25

Echo 90023804008

SCREW 4×8

$0.99

$

In Stock, only 2 left!

0

26

Echo 14590640931

COVER, MUFFLER
(Superseded to 14590640932)

$

$

Not available

27

Echo 14590540930

GUIDE, EXHAUST

$9.99

$

Usually ships in 2-4 days

0

28

Echo 14586627231

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

29

Echo 14586227230

SCREEN, SPARK ARRESTER

$4.99

$

Usually ships in 2-4 days

0

30

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0
