SRM-2501 - Echo String Trimmer (SN: 043001 - 061968) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

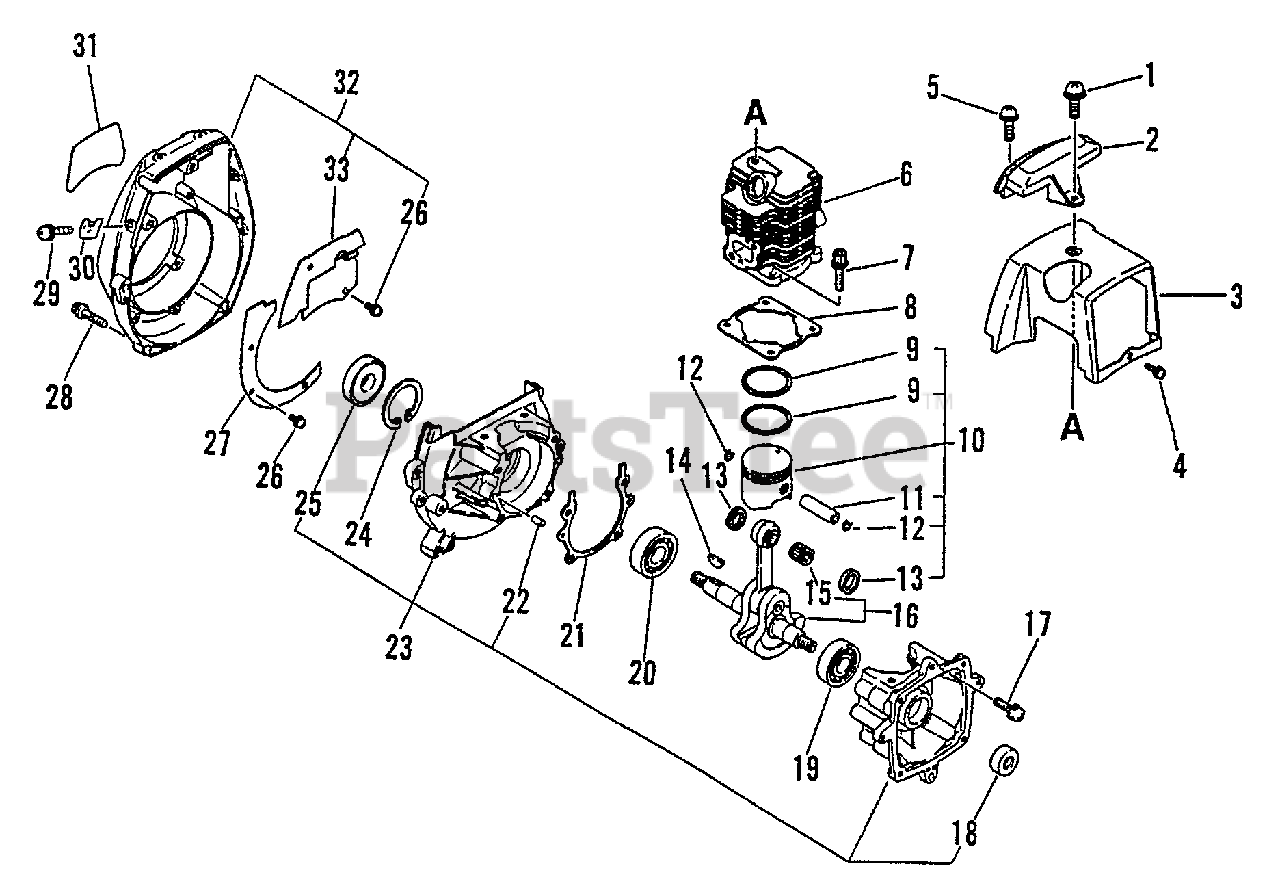

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

2

Echo 15990540930

GUARD - TOP

$14.99

$

Usually ships in 2-4 days

0

3

Echo 10151449330

COVER, ENGINE

$13.99

$

Usually ships in 2-4 days

0

4

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

5

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 17

0

6

Echo 10101122330

CYLINDER

$241.99

$

Usually ships in 2-4 days

0

7

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

8

Echo 10101022331

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Use Kit 88900051230

$

$

Not available

9

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

10

Echo 10000051230

PISTON KIT
(Superseded to Discontinued)

Note: Includes Items 9, 11 - 13

$

$

Not available

11

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

12

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

13

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

14

Echo 10014200310

KEY

$1.99

$

Usually ships in 2-4 days

0

15

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

16

Echo 10010051230

CRANKSHAFT ASSY
(Superseded to 10010451230)

Note: Includes ITEM 15

$309.99

$

Usually ships in 2-4 days

0

17

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 10021305530

SEAL, OIL

$7.99

$

In Stock, Qty 15

0

19

Echo 90080036001

BEARING, BALL - 6001C3

$11.99

$

In Stock, Qty 20+

0

20

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

21

------------------

GASKET, CRANKCASE

Note: Use Kit 88900051230

$

$

Not available

22

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

23

Echo 10020422330

CRANKCASE KIT

Note: Includes Items 18 - 22, 24 & 25

$390.99

$

Usually ships in 2-4 days

0

24

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

25

Echo 10021203930

SEAL, OIL

$6.49

$

In Stock, Qty 14

0

26

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, only 2 left!

0

27

Echo 10154140930

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

28

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 6

0

29

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

30

Echo 17812151230

HOLDER, CABLE

$4.49

$

Usually ships in 2-4 days

0

31

Echo 89011249330

LABEL - MODEL

$

$

Not available

32

Echo 10150351730

FAN CASE ASSY

Note: Includes Items 26, 27, 29, 30 8 33

$108.99

$

Usually ships in 2-4 days

0

33

Echo 10153440930

SHIELD, FAN

$10.99

$

Usually ships in 2-4 days

0

Echo 88900051230

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
