SRM-2501 - Echo String Trimmer (SN: 061969 - 079351) Carburetor Parts Diagram

String Trimmer

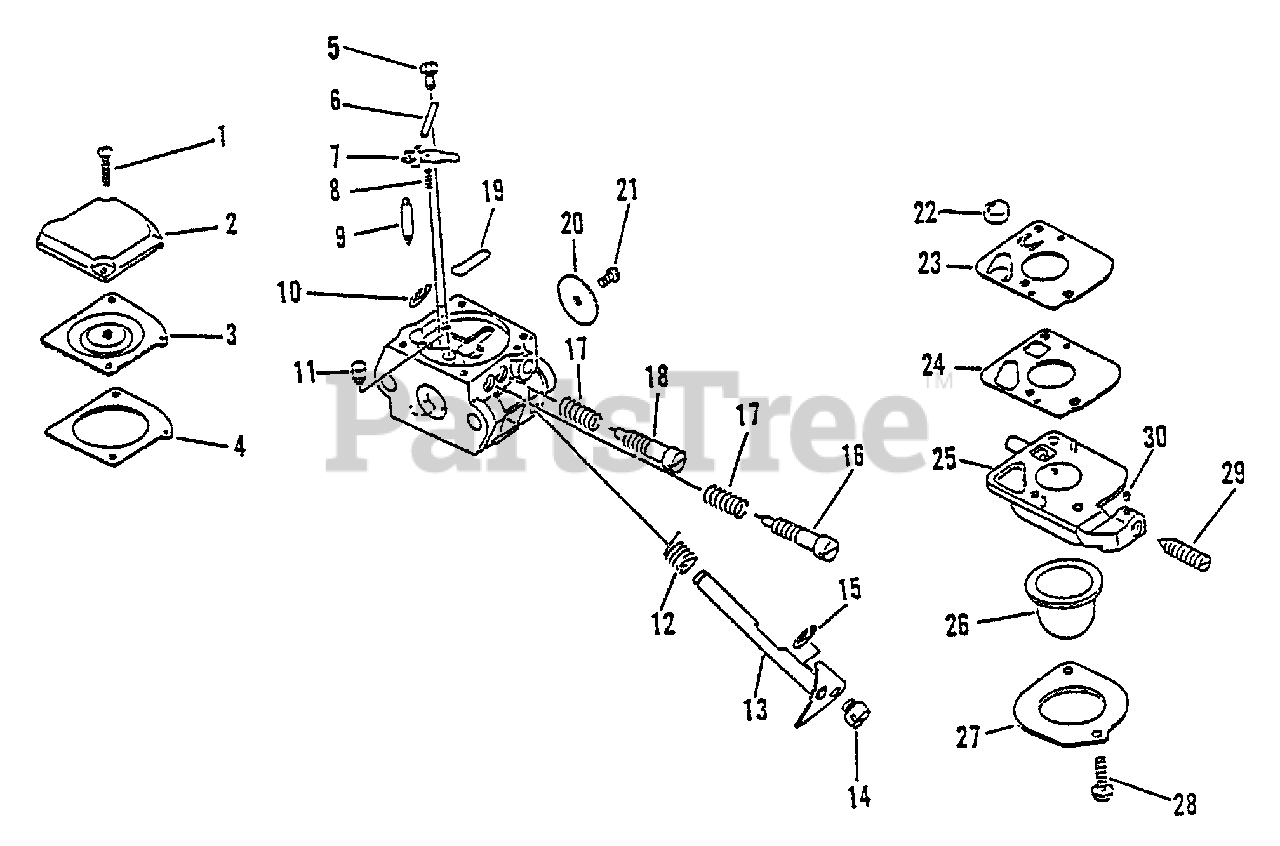

Carburetor Parts Diagram

  • Title

Echo 12520051230

CARBURETOR C1U-K20
(Superseded to 12520051231)

Note: Includes Items Below

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 10

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030 & Repair Kit 12530051030

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030 & Repair Kit 12530051030

$

$

Not available

5

------------------

SCREW

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

6

------------------

PIN

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

7

------------------

LEVER, METERING

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

8

------------------

SPRING

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

11

Echo 12537651030

NOZZLE, CHECK VALVE

$5.99

$

Usually ships in 2-4 days

0

12

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

13

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

14

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

15

Echo 12532713930

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

16

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

17

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

18

Echo 12532051030

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

19

------------------

PLUG, WELCH

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

20

Echo 12531651230

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

22

------------------

STRAINER

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

23

------------------

DIAPHRAGM, PURGE

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030 & Repair Kit 12530051030

$

$

Not available

24

------------------

GASKET, PURGE

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030 & Repair Kit 12530051030

$

$

Not available

25

Echo 12532411610

BASE, PURGE

$21.99

$

In Stock, only 3 left!

0

26

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

27

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 19

0

28

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 16

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

Echo 12530351030

DIAPHRAGM/GASKET KIT

$18.99

$

In Stock, Qty 7

0

Echo 12530051030

REPAIR KIT

$28.99

$

In Stock, only 1 left!

0

Echo 35130449130

U-HANDLE KIT

$77.99

$

Usually ships in 2-4 days

0

Echo 99944200200

SHOULDER STRAP KIT

$23.99

$

In Stock, only 1 left!

0

Echo 69500120330

BLADE, 20mm ID - 8" (20cm)

$

$

Currently unavailable

Echo 69600120330

BLADE, 30 TOOTH - 20mm -- 8"

$

$

Currently unavailable

Echo 99944200030

TRI-CUT BLADE (20 MM ARBOR)

$14.99

$

Usually ships in 2-4 days

0

Echo 99944200035

TRI-CUT BLADE W/GLIDE CUP

$

$

Not available

Echo 99944200130

CLEARING SAW BLADE - 20mm

$34.99

$

In Stock, only 3 left!

0

Echo 21560050

SRM ECHOMATIC HEAD

$34.99

$

In Stock, Qty 6

0

Echo 99944200210

SRM AUTOMATIC HEAD

$

$

Currently unavailable

Echo 21560060

SRM MANUAL HEAD

$40.99

$

In Stock, only 3 left!

0

Echo 215211

PRO MAXI-CUT

$32.99

$

In Stock, only 1 left!

0

Echo 215211

PRO MAXI-CUT

$32.99

$

In Stock, only 1 left!

0
