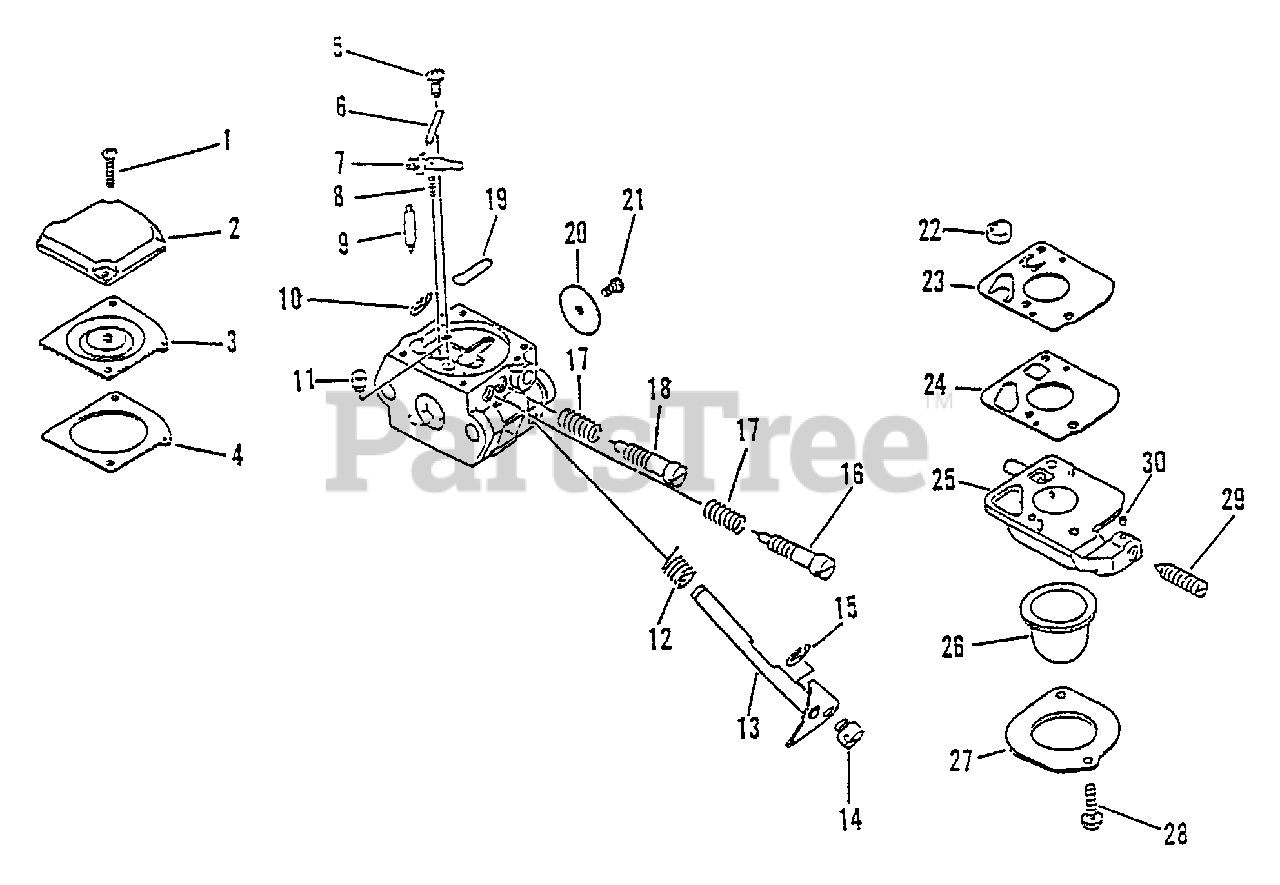

SRM-2501 - Echo String Trimmer (SN: 098241 - 999999) Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

  • Title

Echo 12520051231

CARBURETOR - C1U-K20B
(Superseded to 12520051232)

Note: Includes ITEMS 1-30

$

$

Not available

1

Echo 125344-52130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 12534252130

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030 And Repair Kit, P/N 12530051030

$

$

Not available

4

GASKET, METERING

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030 And Repair Kit, P/N 12530051030

$

$

Not available

5

SCREW

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

6

PIN

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

7

LEVER, METERING

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

8

SPRING

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

9

VALVE, NEEDLE

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

Echo 12537651030

NOZZLE, CHECK VALVE

$6.99

$

In Stock, only 1 left!

0

12

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

13

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

14

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

15

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

16

Echo 125318-42030

NEEDLE, LOW SPEED
(Superseded to 12531851330)

$

$

Not available

17

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

18

Echo 12532051030

NEEDLE, HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

19

PLUG, WELCH

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

20

Echo 12531651230

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

22

STRAINER

Note: Included in Repair Kit, P/N 12530051030

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030 And Repair Kit, P/N 12530051030

$

$

Not available

------------------

GASKET, PUMP

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030 And Repair Kit, P/N 12530051030

$

$

Not available

25

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

26

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

27

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

28

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

Echo 12530351030

GASKET / DIAPHRAGM KIT

$22.99

$

In Stock, only 3 left!

0

Echo 12530051030

REPAIR KIT

$34.99

$

In Stock, only 2 left!

0
