SRM-2501 - Echo String Trimmer (SN: 098241 - 999999) Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

String Trimmer

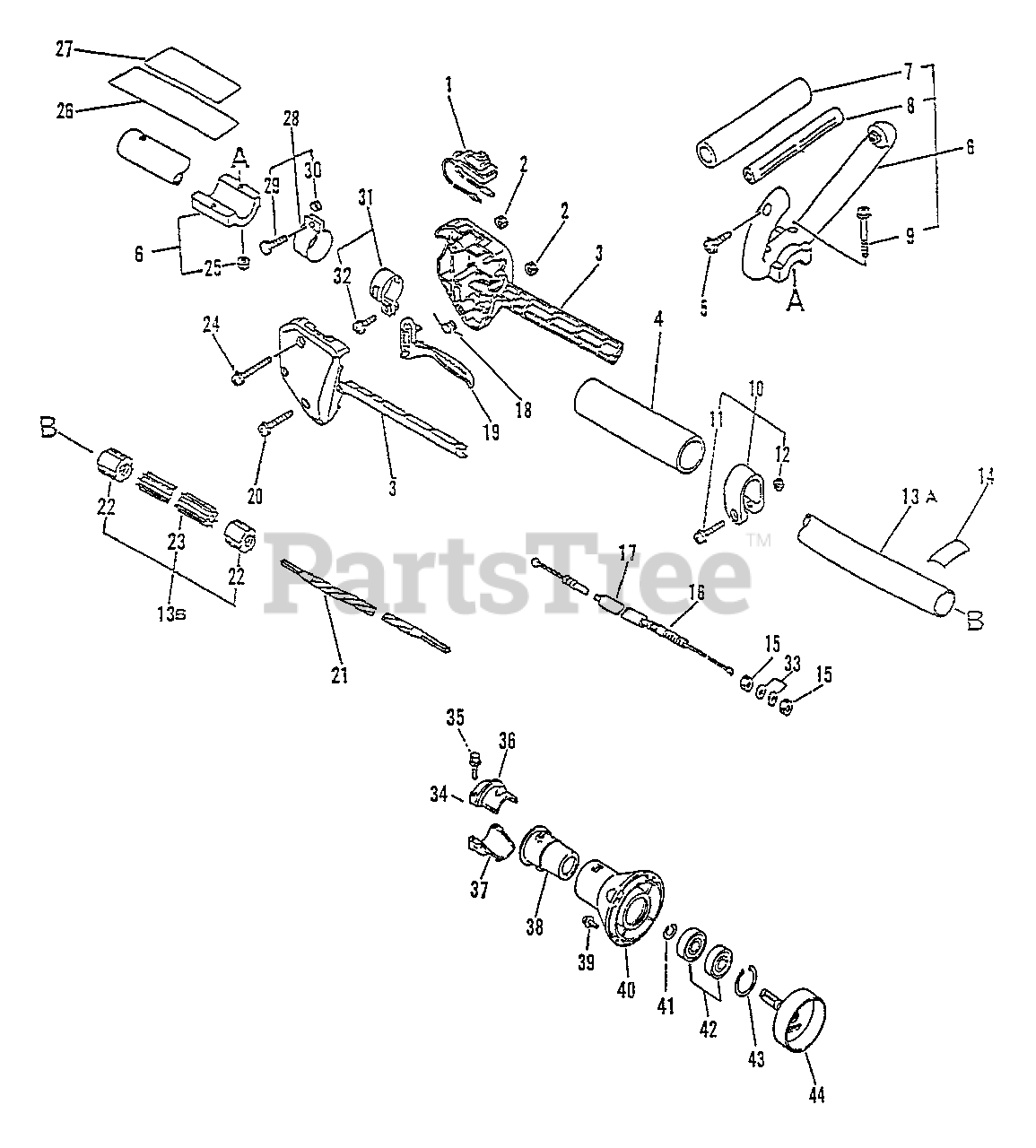

Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo A440000280

SWITCH, ON-OFF

$14.99

$

In Stock, only 2 left!

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes Items 2, 20 & 24

$5.99

$

In Stock, only 3 left!

0

4

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

5

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

6

Echo 35120152130

LOOP HANDLE ASSY

Note: Includes Items 5, 7 - 9 & 25

$78.99

$

Usually ships in 2-4 days

0

7

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

8

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

9

Echo 90024206035

SCREW 6×25

$1.49

$

Usually ships in 2-4 days

0

10

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 11-12

$11.99

$

In Stock, only 2 left!

0

11

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

12

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: Includes Items 22 & 23

$55.99

$

Usually ships in 2-4 days

0

14

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

15

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

16

Echo 17800151030

CABLE, THROTTLE

$20.99

$

In Stock, only 2 left!

0

17

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

18

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

19

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

20

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

21

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 6

0

22

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

23

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 7

0

24

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

25

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

26

Echo 89016044730

LABEL

$4.49

$

Usually ships in 2-4 days

0

27

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$7.49

$

Usually ships in 2-4 days

0

28

Echo 301207-08930

HOOK

Note: Includes Items 29 & 30

$5.99

$

Usually ships in 2-4 days

0

29

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

30

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

31

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes Item 32

$11.99

$

In Stock, only 2 left!

0

32

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

33

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

34

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: Includes Items 35 - 37

$11.99

$

Usually ships in 2-4 days

0

35

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

36

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

37

Echo 61092327432

HOLDER

$7.49

$

Usually ships in 2-4 days

0

38

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

39

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

40

Echo 61022349230

CASE, CLUTCH - GRAY

$67.99

$

Usually ships in 2-4 days

0

41

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

42

Echo 90080806001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

43

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

44

Echo 17500544830

DRUM, CLUTCH
(Superseded to 17500551730)

$18.99

$

Usually ships in 2-4 days

0
