SRM-2501 S - Echo String Trimmer (SN: 098241 - 999999) Clutch, Driveshaft, Fuel System, Strap, Throttle Control Parts Diagram

String Trimmer

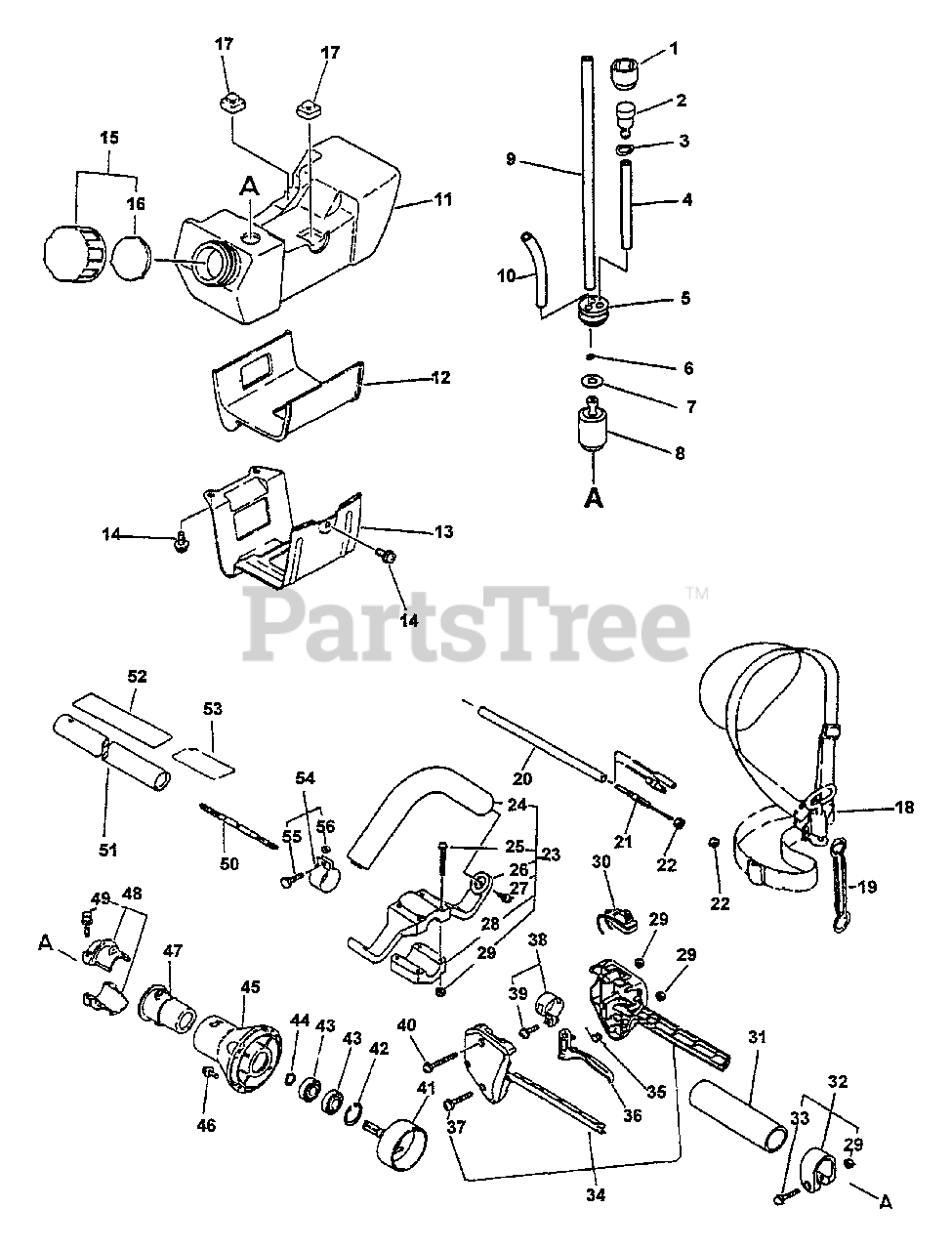

Clutch, Driveshaft, Fuel System, Strap, Throttle Control Parts Diagram

  • Title

1

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

2

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

3

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

4

Echo 13201051230

PIPE, FUEL VENT 3×5×60

Note: RePower BULK OPTION: 90015

$5.99

$

In Stock, only 2 left!

0

5

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

6

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

7

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0

9

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

10

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 11

0

11

Echo 13101041930

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

12

Echo 13192440930

CUSHION
(Superseded to Discontinued)

$

$

Not available

13

Echo 30511040930

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

14

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

15

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 16

$5.49

$

In Stock, only 2 left!

0

16

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

17

Echo 13192522330

CUSHION
(Superseded to Discontinued)

$

$

Not available

18

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$25.99

$

In Stock, only 2 left!

0

19

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0

20

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

21

Echo 17800151030

CABLE, THROTTLE

$20.99

$

In Stock, only 2 left!

0

22

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

23

Echo 35120107132

LOOP HANDLE ASSY
(Superseded to 35120107133)

Note: Includes items 24 - 29

$53.99

$

Usually ships in 2-4 days

0

24

Echo 35120507130

HANDLE
(Superseded to 35120507131)

$27.99

$

Usually ships in 2-4 days

0

25

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

26

Echo 35123207131

BRACKET, HANDLE
(Superseded to P021013241)

$21.99

$

Usually ships in 2-4 days

0

27

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

28

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

$1.99

$

In Stock, only 3 left!

0

29

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

30

Echo A440000280

SWITCH, ON-OFF

$14.99

$

In Stock, only 2 left!

0

31

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

32

Echo 61027252130

CLAMP KIT

Note: Includes items 29 & 33

$11.99

$

In Stock, only 2 left!

0

33

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

34

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes items 29, 37 & 40

$5.99

$

In Stock, only 3 left!

0

35

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

36

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

37

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

38

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 39

$11.99

$

In Stock, only 2 left!

0

39

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

40

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

41

Echo 17500540930

DRUM, CLUTCH

$67.99

$

Usually ships in 2-4 days

0

42

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

43

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

44

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

45

Echo 61022349230

CASE, CLUTCH - GRAY

$67.99

$

Usually ships in 2-4 days

0

46

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

47

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

48

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: Includes ITEM 49

$11.99

$

Usually ships in 2-4 days

0

49

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

50

Echo 61001125530

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

51

Echo 61020645430

HOUSING ASSY
(Superseded to Discontinued)

$

$

Not available

52

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$7.49

$

Usually ships in 2-4 days

0

53

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.99

$

Usually ships in 2-4 days

0

54

Echo 301207-08930

HOOK

$5.99

$

Usually ships in 2-4 days

0

55

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

56

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0
