SRM-2502 - Echo String Trimmer (SN: 0010201 - 0025000) Clutch, Ignition, Starter Parts Diagram

String Trimmer

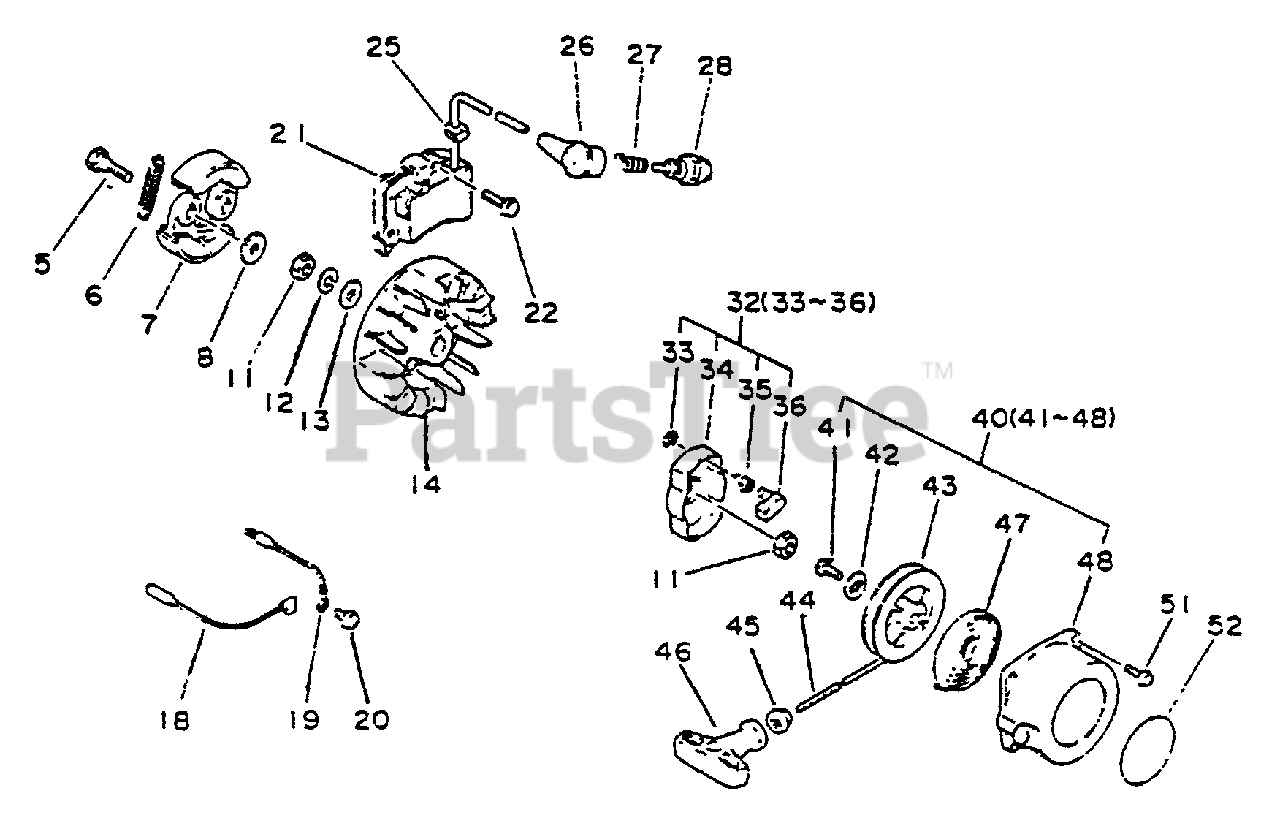

Clutch, Ignition, Starter Parts Diagram

  • Title

5

Echo 17504622332

BOLT, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

6

Echo 17501805535

SPRING, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

7

Echo 17500905531

SHOE, CLUTCH
(Superseded to 17500905532)

$25.99

$

In Stock, only 2 left!

0

8

Echo 17504805530

WASHER 6.2×19×1.0

$1.99

$

In Stock, Qty 20+

0

11

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

12

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

13

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

14

Echo 15680122330

FLYWHEEL

$112.99

$

Usually ships in 2-4 days

0

18

Echo 16202227230

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

19

Echo 16201427230

LEAD - GROUND L= 115

$3.49

$

In Stock, only 2 left!

0

20

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

21

Echo 15660140930

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

22

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

25

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

26

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

27

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

28

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

28

Echo 15901010230

SPARK PLUG - BPMR7A

$3.99

$

In Stock, Qty 20+

0

32

Echo A052000030

PAWL ASSY, STARTER

$15.99

$

In Stock, Qty 15

0

33

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

34

Echo 17721040630

CATCHER, PAWL
(Superseded to 17720240630)

$15.99

$

In Stock, Qty 15

0

35

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

36

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

40

Echo 17720040930

STARTER ASSY
(Superseded to 17720049330)

$

$

Not available

41

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

42

Echo 17721440630

WASHER
(Superseded to P022022280)

$1.49

$

In Stock, Qty 5

0

43

Echo 17721540630

REEL, ROPE

$11.99

$

In Stock, only 1 left!

0

44

Echo 17722640630

ROPE, STARTER

Note: RePower BULK OPTION: 99944445000

$6.99

$

Usually ships in 2-4 days

0

45

Echo 17722705530

GUIDE, ROPE

$4.99

$

In Stock, Qty 10

0

46

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

47

Echo 17722040630

SPRING, RECOIL

$15.99

$

In Stock, only 1 left!

0

48

Echo 17723240930

CASE, STARTER
(Superseded to 17723249330)

$

$

Not available

51

Echo 90023504014

SCREW - 4×14

$

$

Currently unavailable

52

Echo 89011240930

LABEL - ECHO
(Superseded to 89011849330)

$7.49

$

In Stock, only 2 left!

0
