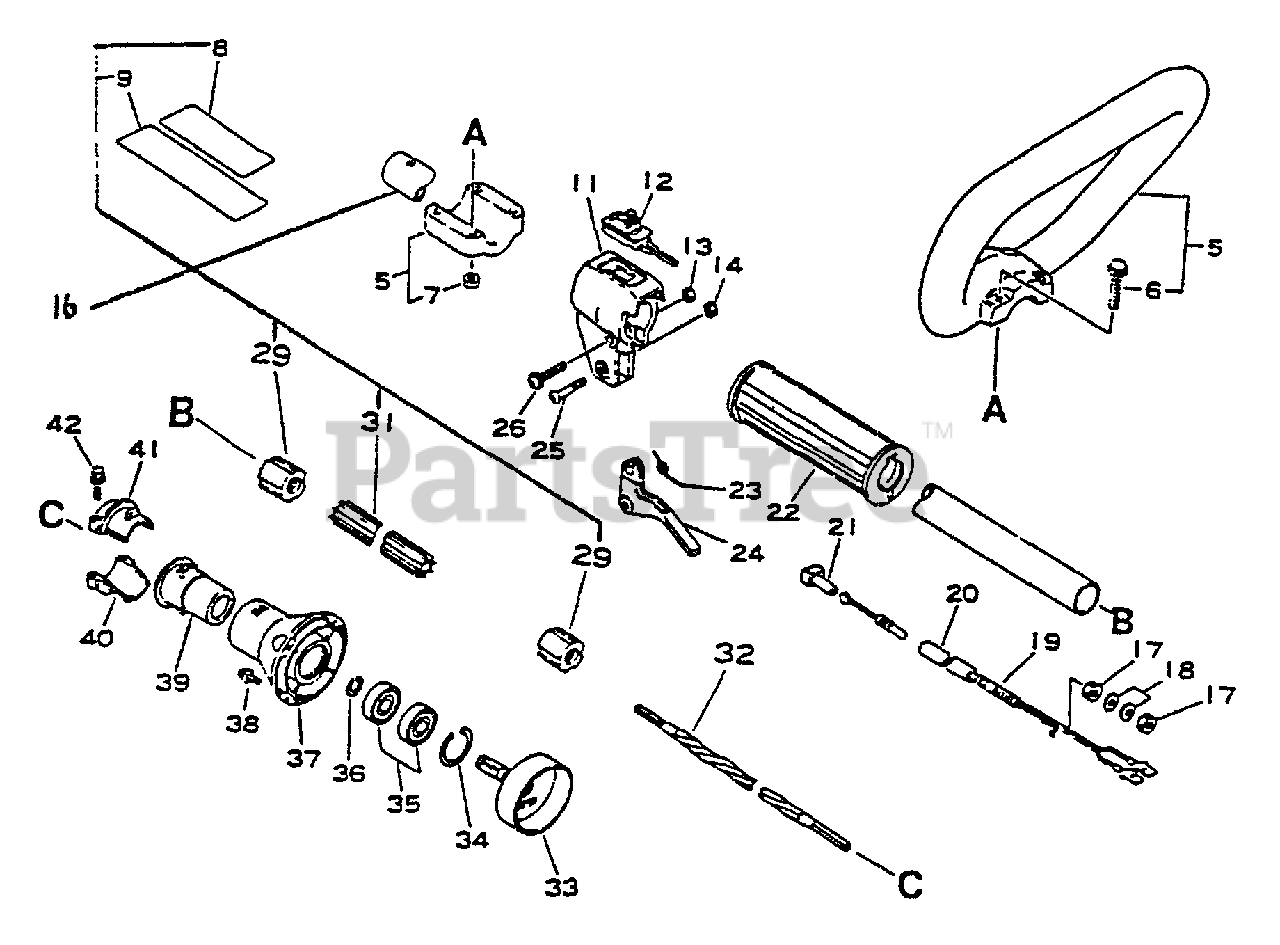

SRM-2502 - Echo String Trimmer (SN: 0010201 - 0025000) Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

String Trimmer

Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

  • Title

5

Echo 35120140830

LOOP HANDLE ASSY
(Superseded to 35120151730)

$12.99

$

In Stock, only 1 left!

0

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024706035

SCREW - 6X35

$

$

Currently unavailable

8

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

9

Echo 59016045430

LABEL - CAUTION

$

$

Currently unavailable

11

Echo 17802444730

BRACKET, THROTTLE CONTROL
(Superseded to 17802449230)

$

$

Not available

12

Echo 16340027230

IGNITION SWITCH ASSY
(Superseded to 16340049330)

$11.99

$

In Stock, Qty 20+

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

16

------------------

MAIN PIPE ASSY

$

$

Not available

29

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

31

Echo C507000260

LINER - FLEXIBLE

$25.99

$

In Stock, Qty 20+

0

17

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

18

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 17

0

19

Echo 17800140930

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 17812740930

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

21

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 20+

0

22

Echo 35101240930

GRIP, HANDLE
(Superseded to 35101244730)

$

$

Not available

23

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

24

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.49

$

In Stock, Qty 20+

0

25

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 17

0

26

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

32

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, Qty 20+

0

33

Echo 17500544830

DRUM, CLUTCH
(Superseded to 17500551730)

$15.99

$

Usually ships in 2-4 days

0

34

Echo 90070200025

RING, RETAINING - 25

$1.99

$

In Stock, Qty 5

0

35

Echo 90080806001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

36

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

37

Echo 61022344230

CASE, CLUTCH

$

$

Currently unavailable

38

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

39

Echo 61091027832

CUSHION

$7.99

$

In Stock, only 1 left!

0

40

Echo 61092327432

CLAMP, MAIN PIPE

$6.49

$

Usually ships in 2-4 days

0

41

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

42

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 10

0
