SRM-2502 - Echo String Trimmer (SN: 0010201 - 0025000) Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

String Trimmer

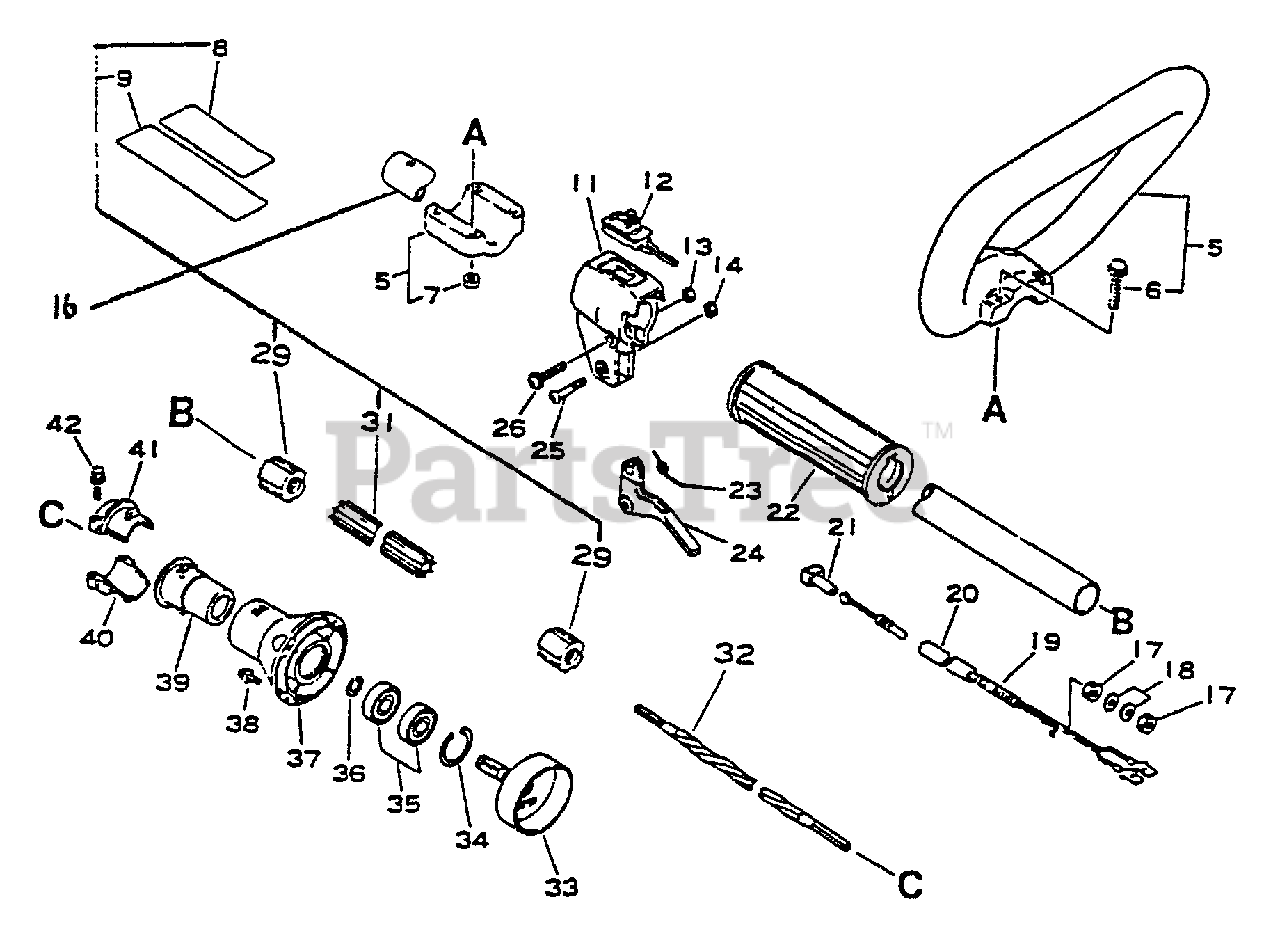

Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

  • Title

5

Echo 35120140830

LOOP HANDLE ASSY
(Superseded to 35120151730)

$14.99

$

In Stock, only 2 left!

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024706035

SCREW - 6×35

$

$

Currently unavailable

8

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$7.49

$

Usually ships in 2-4 days

0

9

Echo 59016045430

LABEL - CAUTION

$

$

Currently unavailable

11

Echo 17802444730

BRACKET, THROTTLE CONTROL
(Superseded to 17802449230)

$

$

Not available

12

Echo 16340027230

IGNITION SWITCH ASSY
(Superseded to 16340049330)

$14.99

$

In Stock, only 2 left!

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

16

MAIN PIPE ASSY

$

$

Not available

29

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

31

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 7

0

17

Echo 900602-00006

WASHER 6

$0.99

$

In Stock, Qty 18

0

18

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

19

Echo 17800140930

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 17812740930

PIPE

$0.99

$

Usually ships in 2-4 days

0

21

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

22

Echo 35101240930

GRIP, HANDLE
(Superseded to 35101244730)

$

$

Not available

23

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

24

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.99

$

In Stock, Qty 5

0

25

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

26

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

32

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 6

0

33

Echo 17500544830

DRUM, CLUTCH
(Superseded to 17500551730)

$18.99

$

Usually ships in 2-4 days

0

34

Echo 90070200025

RING, SNAP Ø25

$2.49

$

In Stock, only 4 left!

0

35

Echo 90080806001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

36

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

37

Echo 61022344230

CASE, CLUTCH

$

$

Currently unavailable

38

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

39

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

40

Echo 61092327432

HOLDER

$7.49

$

Usually ships in 2-4 days

0

41

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

42

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0
