SRM-2510 - Echo String Trimmer (SN: 079352 - 098240) Fuel System Parts Diagram

String Trimmer

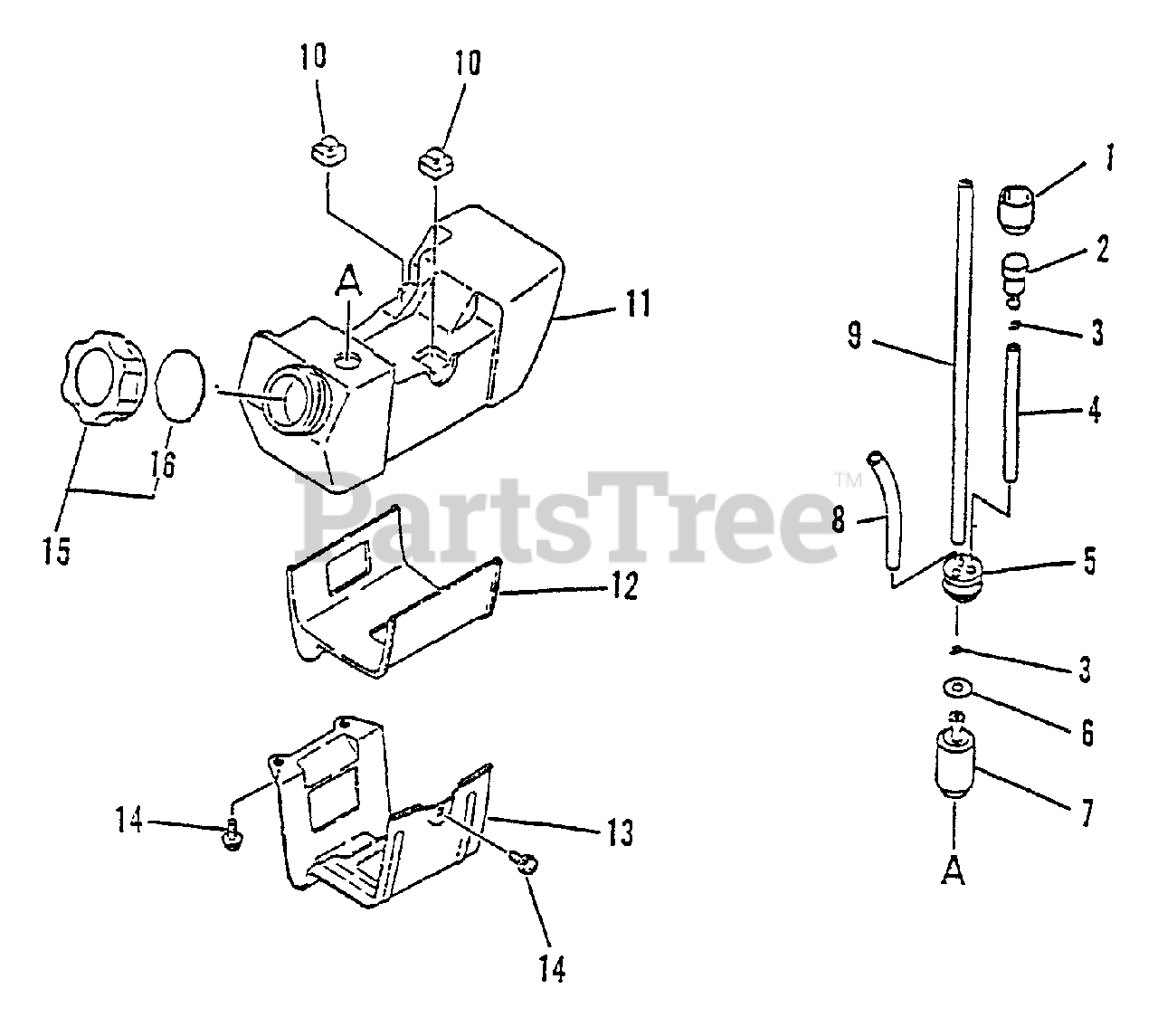

Fuel System Parts Diagram

  • Title

1

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

2

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

3

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

4

Echo 13201051230

PIPE, FUEL VENT 3×5×60

Note: RePower BULK OPTION: 90015

$5.99

$

In Stock, only 2 left!

0

5

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

6

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

7

Echo 13120002830

FILTER, FUEL
(Superseded to 13120514930)

$9.99

$

In Stock, Qty 20+

0

8

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

9

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

10

Echo 13192522330

CUSHION
(Superseded to Discontinued)

$

$

Not available

11

Echo 13101049330

TANK, FUEL
(Superseded to 13101041930)

$

$

Not available

12

Echo 13192440930

CUSHION
(Superseded to Discontinued)

$

$

Not available

13

Echo 30511040930

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

14

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

15

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 16

$5.49

$

In Stock, only 2 left!

0

16

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0
