SRM-260 - Echo String Trimmer (SN: 05001001 - 05999999) Carburetor -- WYK-186 S/N: 05019400 - 05999999 Parts Diagram

String Trimmer

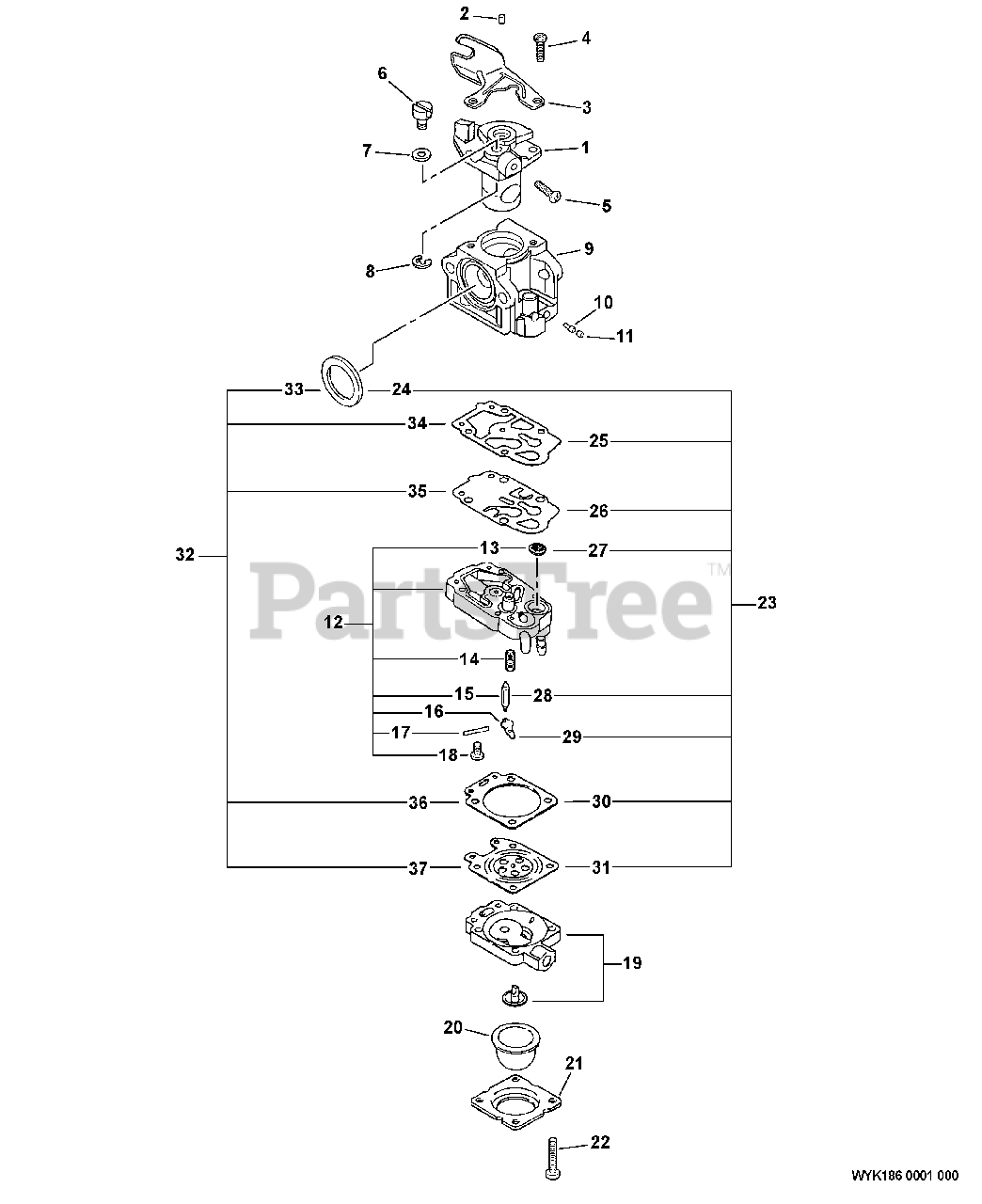

Carburetor -- WYK-186 S/N: 05019400 - 05999999 Parts Diagram

  • Title

Echo A021000700

CARBURETOR - WYK-186

$107.99

$

In Stock, only 2 left!

0

1

THROTTLE VALVE ASSY

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

2

Echo A259000000

PLUG

$0.99

$

Usually ships in 2-4 days

0

3

Echo P003000180

BRACKET, THROTTLE CABLE

$6.99

$

In Stock, only 2 left!

0

4

Echo 12311440630

SCREW

$6.99

$

In Stock, only 2 left!

0

5

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

6

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

7

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

8

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

9

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

10

Echo P003001130

NEEDLE, HIGH SPEED

$12.99

$

Usually ships in 2-4 days

0

11

Echo A259000000

PLUG

$0.99

$

Usually ships in 2-4 days

0

12

Echo P003000890

PUMP BODY ASSY

Note: Includes ITEMS 12-17

$33.99

$

Usually ships in 2-4 days

0

13

STRAINER

$

$

Not available

14

Echo 12312205560

SPRING, METERING LEVER

$4.99

$

Usually ships in 2-4 days

0

15

VALVE, INLET NEEDLE

$

$

Not available

16

LEVER, METERING

$

$

Not available

17

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 3 left!

0

18

Echo 12313905560

SCREW

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, only 2 left!

0

20

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

21

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 1 left!

0

22

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

23

Echo P003001120

REPAIR KIT, CARBURETOR
(Superseded to P003001121)

Note: Includes ITEMS 24-31

$26.99

$

In Stock, Qty 20+

0

24

SEAL

$

$

Not available

25

GASKET, PUMP

$

$

Not available

26

DIAPHRAGM, PUMP

$

$

Not available

27

STRAINER

$

$

Not available

28

VALVE, INLET NEEDLE

$

$

Not available

29

LEVER, METERING

$

$

Not available

30

GASKET, DIAPHRAGM

$

$

Not available

31

DIAPHRAGM, METERING

$

$

Not available

32

Echo P003001110

DIAPHRAGM/GASKET KIT
(Superseded to P003001120)

Note: Includes ITEMS 33-37

$26.99

$

In Stock, Qty 20+

0

33

SEAL

$

$

Not available

34

GASKET, PUMP

$

$

Not available

35

DIAPHRAGM, PUMP

$

$

Not available

36

GASKET, DIAPHRAGM

$

$

Not available

37

DIAPHRAGM, METERING

$

$

Not available
