SRM-260 - Echo String Trimmer (SN: 05001001 - 05999999) Engine, Short Block -- SB1060 Parts Diagram

String Trimmer

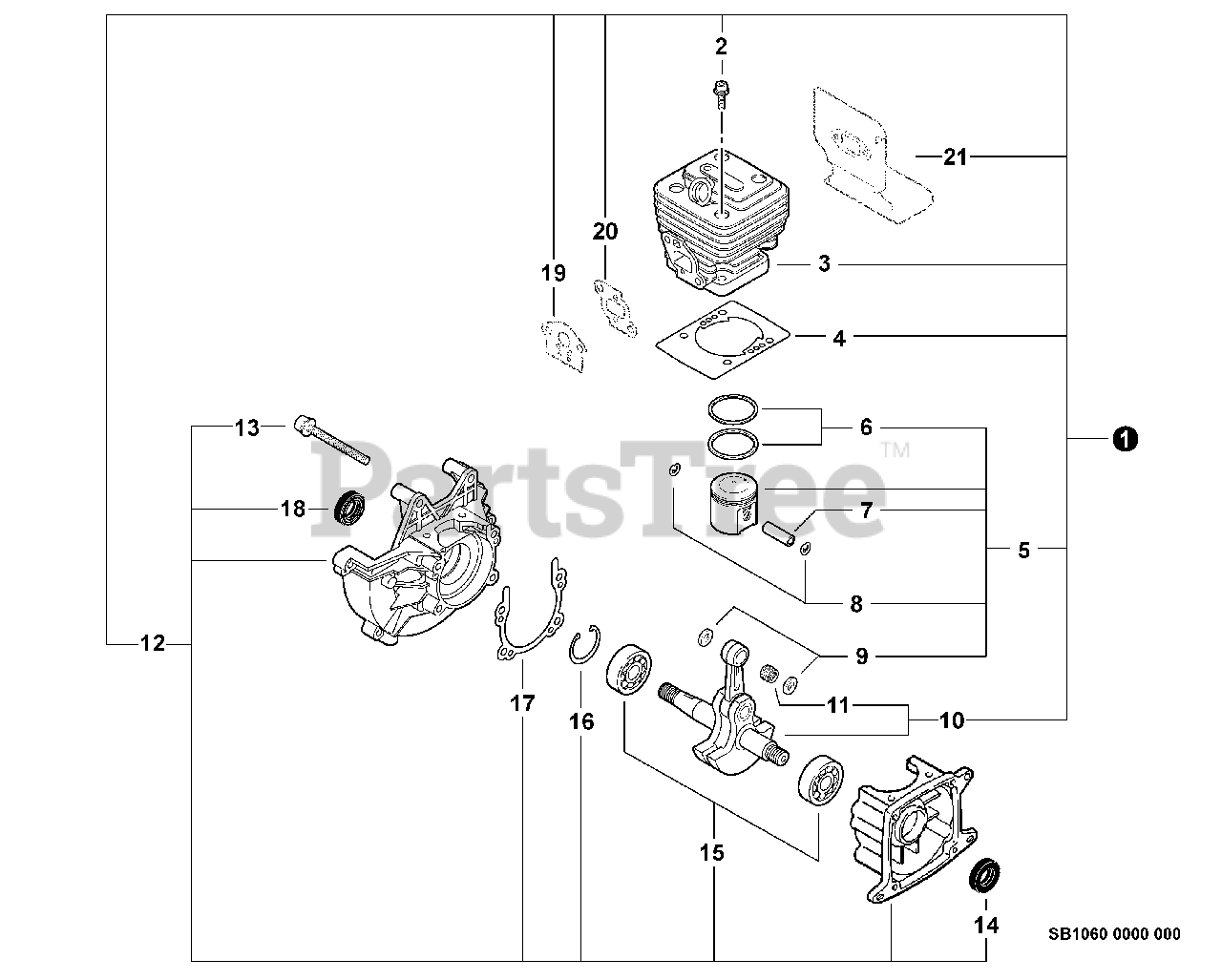

Engine, Short Block -- SB1060 Parts Diagram

  • Title

1

Echo SB1060

SHORT BLOCK

Note: Includes ITEMS 2-21

$242.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo A130000371

CYLINDER

$199.99

$

Usually ships in 2-4 days

0

4

Echo V100000070

GASKET, CYLINDER

Note: Included In GASKET KIT

$7.99

$

In Stock, only 2 left!

0

5

Echo P021004740

PISTON KIT

Note: Includes ITEMS 6-10

$86.99

$

Usually ships in 2-4 days

0

6

Echo A101000010

RING, PISTON

$9.99

$

In Stock, Qty 20+

0

7

Echo V606000000

PIN, PISTON

$7.99

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001455930

WASHER, THRUST

$4.49

$

Usually ships in 2-4 days

0

10

Echo A011001110

CRANKSHAFT ASSY

Note: Includes ITEM 11

$203.99

$

Usually ships in 2-4 days

0

11

Echo V553000020

BEARING, NEEDLE 8
(Superseded to V553000140)

$12.99

$

Usually ships in 2-4 days

0

12

Echo P021000941

CRANKCASE ASSY

Note: Includes ITEMS 13-18

$251.99

$

Usually ships in 2-4 days

0

13

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

14

Echo V505000020

SEAL, OIL 12

$7.99

$

In Stock, Qty 11

0

15

Echo 90080036001

BEARING, BALL 6001

$11.99

$

In Stock, Qty 7

0

16

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

17

Echo 10024255930

GASKET, CRANKCASE

Note: Included In GASKET KIT

$4.49

$

In Stock, only 2 left!

0

18

Echo 10021228230

SEAL, OIL 12

$4.99

$

In Stock, only 2 left!

0

19

GASKET, INTAKE

Note: Included In GASKET KIT

$

$

Not available

20

GASKET, INTAKE

Note: Included In GASKET KIT

$

$

Not available

21

SHIELD, EXHAUST

Note: Included In GASKET KIT

$

$

Not available
