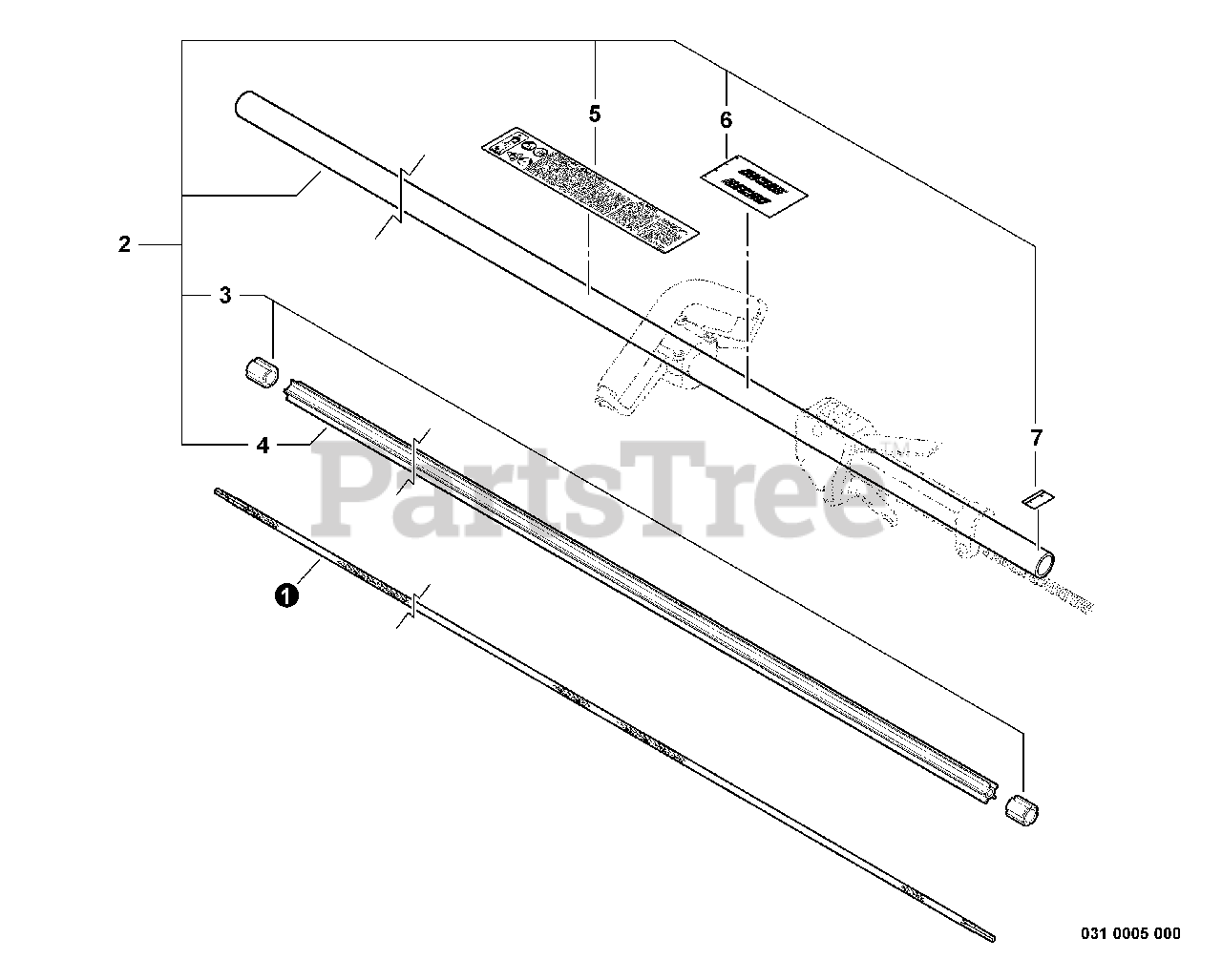

SRM-260 - Echo String Trimmer (SN: 05001001 - 05999999) Main Pipe Assembly, Driveshaft Parts Diagram

String Trimmer

Main Pipe Assembly, Driveshaft Parts Diagram

  • Title

1

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 5

0

2

Echo C050001090

MAIN PIPE ASSY

Note: Includes ITEMS 2-7

$45.99

$

In Stock, Qty 7

0

3

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

4

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 7

0

5

Echo X505002500

LABEL, CAUTION
(Superseded to X505009800)

$7.49

$

In Stock, Qty 20+

0

6

Echo X505001930

LABEL, HANDLE LOCATION

$1.49

$

In Stock, Qty 20+

0

7

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0
