SRM-2601 - Echo String Trimmer Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

String Trimmer

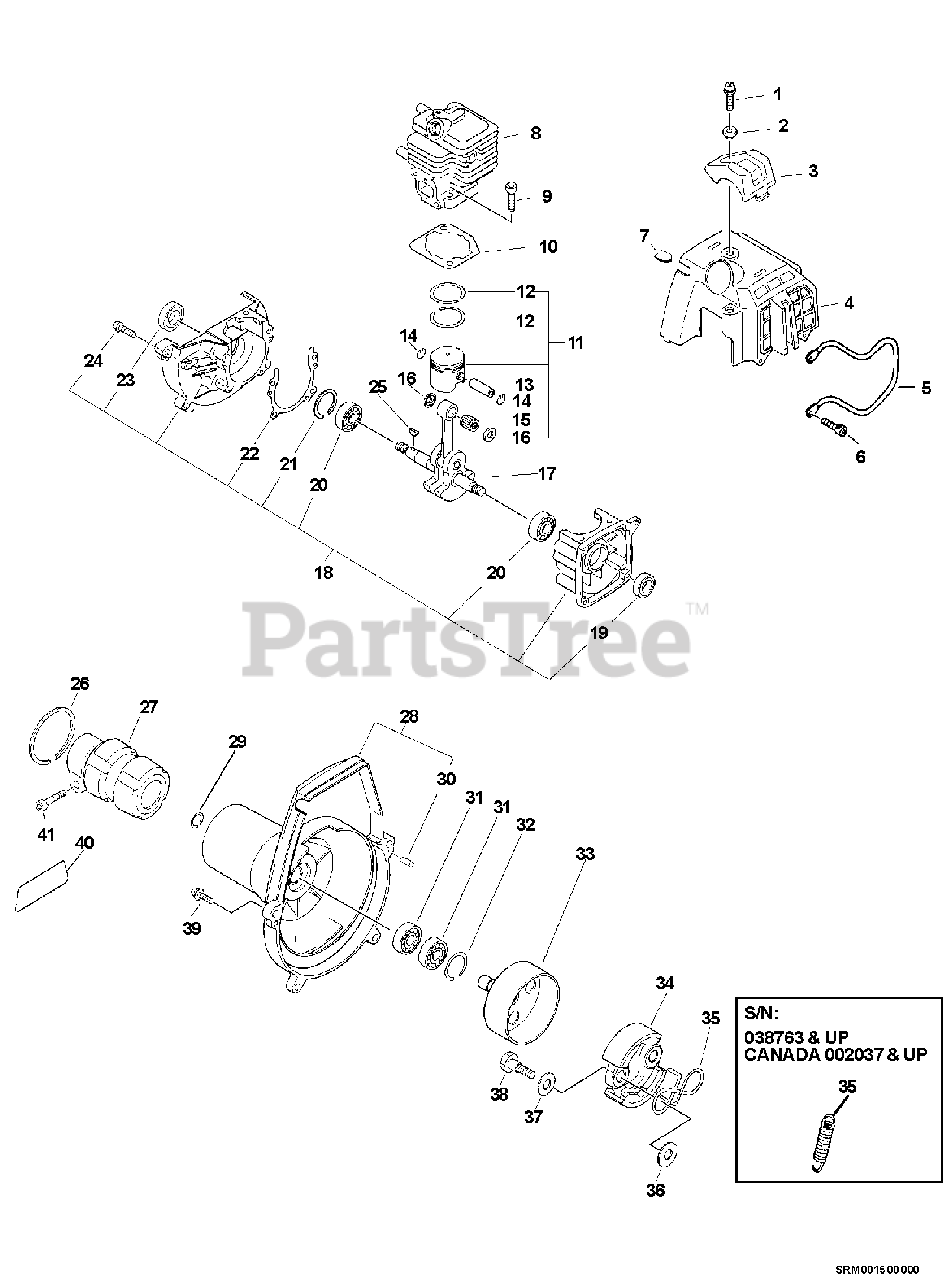

Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

  • Title

Echo 88900057730

GASKET KIT

$22.99

$

Usually ships in 2-4 days

0

1

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, only 4 left!

0

2

Echo 10153155930

COLLAR
(Superseded to V353000020)

$1.99

$

In Stock, Qty 20+

0

3

Echo 15990555930

GUARD - TOP

$12.99

$

Usually ships in 2-4 days

0

4

Echo 10150657730

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10026857730

GUARD, ENGINE

Note: OPTIONAL

$23.99

$

Usually ships in 2-4 days

0

6

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

7

Echo 10153828230

PLUG

$1.99

$

Usually ships in 2-4 days

0

Echo SB1039

SHORT BLOCK -- SB1039
(Superseded to Discontinued)

Note: INCLUDES ITEMS 8-24

$

$

Not available

8

Echo 10103456031

CYLINDER
(Superseded to 10103456532)

$217.99

$

Usually ships in 2-4 days

0

9

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

10

Echo 10101056030

GASKET, CYLINDER

$5.99

$

Usually ships in 2-4 days

0

11

Echo 10000056031

PISTON KIT
(Superseded to P021000370)

Note: Includes ITEMS 12-16

$103.99

$

Usually ships in 2-4 days

0

11

Echo P021000370

PISTON KIT
(Superseded to P021000371)

Note: Includes ITEMS 12-16

$103.99

$

Usually ships in 2-4 days

0

12

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

12

Echo A101000010

RING, PISTON

$9.99

$

In Stock, only 3 left!

0

13

Echo 10001356030

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

14

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

15

Echo 10001255930

BEARING, NEEDLE
(Superseded to V553000020)

$12.99

$

Usually ships in 2-4 days

0

16

Echo 10001455930

SPACER, PISTON

$4.49

$

Usually ships in 2-4 days

0

17

------------------

CRANKSHAFT ASSY

$

$

Not available

18

------------------

CRANKCASE KIT

Note: INCLUDES 19-24

$

$

Not available

19

Echo 10021305530

SEAL, OIL

$7.99

$

In Stock, Qty 15

0

20

Echo 90080036001

BEARING, BALL - 6001C3

$11.99

$

In Stock, Qty 20+

0

21

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

22

------------------

GASKET, CRANKCASE

$

$

Not available

23

Echo 10021228230

SEAL, OIL - 12

$4.99

$

In Stock, only 2 left!

0

24

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

25

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 7

0

26

Echo 90070200042

RING, RETAINING - 42

$1.99

$

In Stock, Qty 20+

0

27

Echo 61092255930

CLAMP, MAIN PIPE
(Superseded to 61092255931)

$40.99

$

In Stock, only 2 left!

0

28

Echo 10150757730

FAN CASE KIT
(Superseded to 10150357731)

Note: INCLUDES 29-33

$

$

Not available

28

Echo 10150357731

FAN CASE ASSY
(Superseded to 10150357732)

Note: INCLUDES 29-33

$

$

Not available

28

Echo P021001580

FAN CASE KIT
(Superseded to Discontinued)

Note: INCLUDES 29-33

$

$

Not available

29

Echo 90070100010

RING, RETAINING - 10

$0.99

$

In Stock, only 2 left!

0

30

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

31

Echo 90080706000

BEARING, BALL - 6000LU

$15.99

$

Usually ships in 2-4 days

0

32

Echo 90070200026

RING, RETAINING - 26

$2.49

$

In Stock, Qty 6

0

33

Echo 17500555930

DRUM, CLUTCH
(Superseded to A556000560)

$81.99

$

In Stock, only 1 left!

0

33

Echo A556000050

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

34

Echo 17500955930

SHOE, CLUTCH
(Superseded to 17500955931)

$25.99

$

In Stock, only 2 left!

0

34

Echo A553000010

SHOE, CLUTCH
(Superseded to A553000200)

$18.99

$

In Stock, Qty 5

0

35

Echo 17501855930

SPRING, CLUTCH

$5.99

$

Usually ships in 2-4 days

0

35

Echo 17501805533

SPRING, CLUTCH

$2.49

$

In Stock, only 2 left!

0

35

Echo V451000090

SPRING, CLUTCH

$2.49

$

In Stock, Qty 12

0

36

Echo 17504805530

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

37

Echo 17504956030

WASHER - SPRING

$1.99

$

In Stock, Qty 20+

0

38

Echo 17504656030

BOLT, CLUTCH

$5.99

$

In Stock, Qty 20+

0

39

Echo 90016205018

SCREW - 5X18

$0.99

$

In Stock, Qty 8

0

40

Echo 89003457730

LABEL - MODEL

$3.49

$

Usually ships in 2-4 days

0

41

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0
