SRM-2610 - Echo String Trimmer Ignition, Starter, Flywheel Parts Diagram

String Trimmer

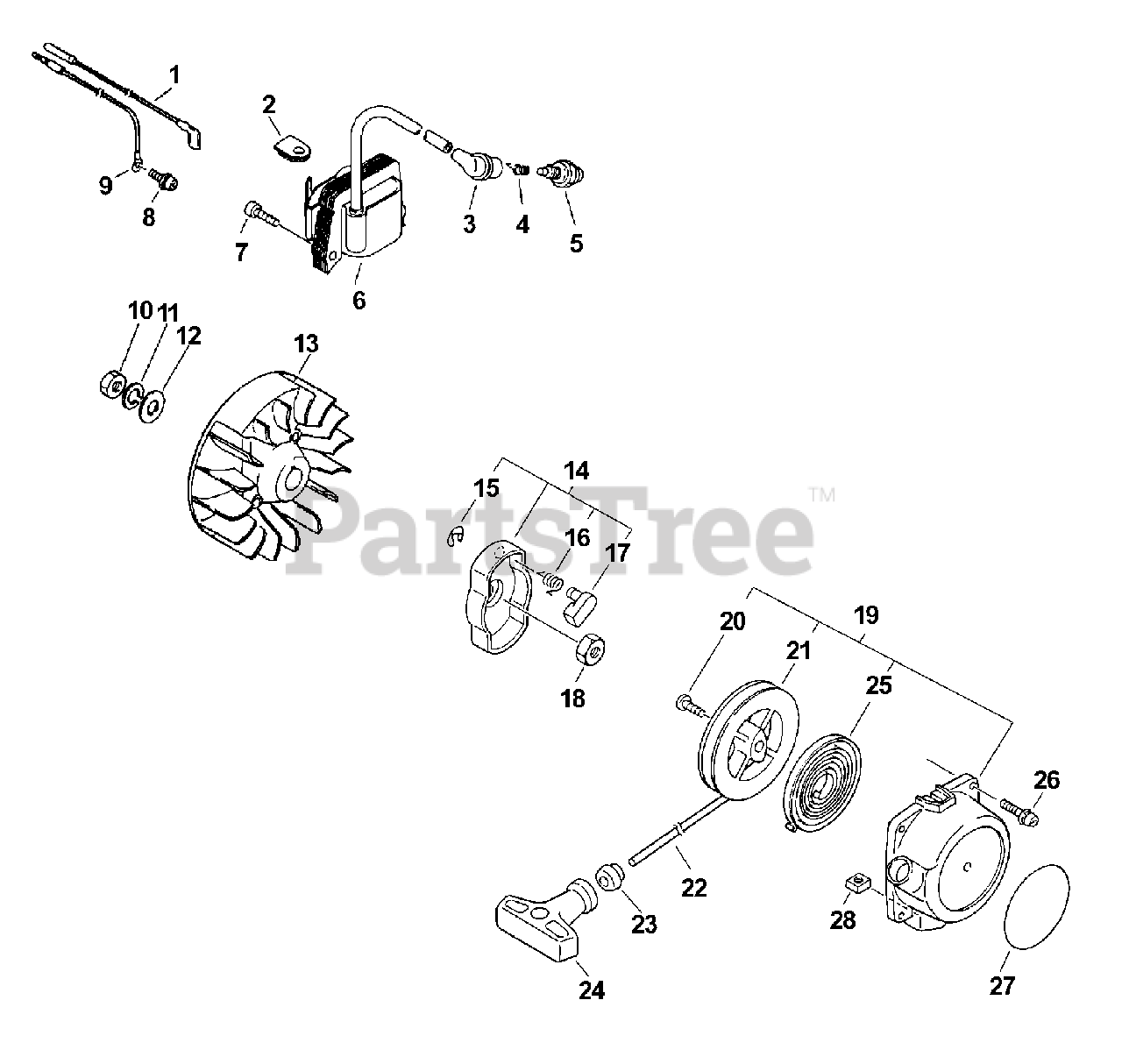

Ignition, Starter, Flywheel Parts Diagram

  • Title

1

Echo 16201056430

LEAD - IGNITION

$7.49

$

In Stock, only 1 left!

0

2

Echo 15611228230

GROMMET
(Superseded to 15611240630)

Note: S/N 005001 - 050276

$1.49

$

In Stock, Qty 20+

0

2

Echo 15611240630

GROMMET

Note: S/N 050277 & UP

$1.49

$

In Stock, Qty 20+

0

3

Echo 15901203433

CAP, SPARK PLUG

$7.99

$

In Stock, Qty 20+

0

4

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 99944500071

SPARK PLUG -- BPM-7Y

$

$

Not available

5

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: FOR CANADIAN MODELS ONLY

$3.99

$

In Stock, Qty 20+

0

6

Echo 15262656031

COIL, IGNITION
(Superseded to 15262656032)

$119.99

$

Usually ships in 2-4 days

0

7

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

8

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

9

Echo 16201452930

LEAD - GROUND

$5.49

$

In Stock, only 1 left!

0

10

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

11

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

13

Echo 15280156030

FLYWHEEL
(Superseded to 15280155930)

$126.99

$

Usually ships in 2-4 days

0

14

Echo A052000030

STARTER PAWL ASSY

Note: Includes ITEMS 15-17

$14.99

$

In Stock, Qty 20+

0

15

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

16

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

17

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

18

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

19

Echo 17720055931

STARTER ASSY

Note: INCLUDES ITEMS 20 - 25

$44.99

$

In Stock, only 2 left!

0

20

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 10

0

21

Echo 17721540630

REEL, ROPE

$10.99

$

In Stock, only 2 left!

0

22

------------------

ROPE, STARTER

Note: USE BULK ROPE P/N 99944400050 DIA. 3.8 MM (.15") X 950 MM (37.0")

$

$

Not available

23

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

24

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 15

0

25

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, only 2 left!

0

26

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 20+

0

27

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

28

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

Echo 99944400050

BULK ROPE
(Superseded to 99944450000)

$39.99

$

In Stock, Qty 20+

0
