SRM-2620 T - Echo String Trimmer (SN: T87214001001 - T87214999999) Gear Case S/N: T87214002801 - T87214999999 Parts Diagram

String Trimmer

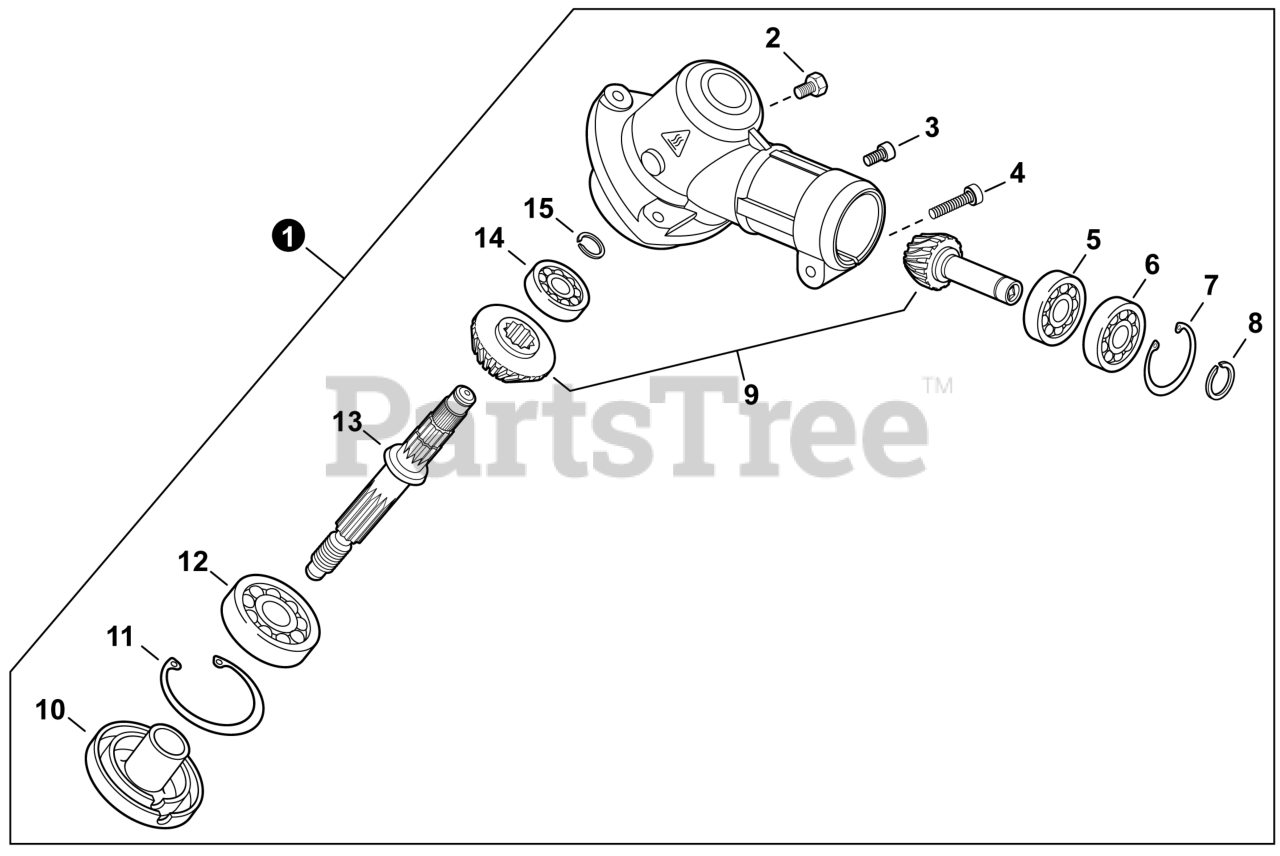

Gear Case S/N: T87214002801 - T87214999999 Parts Diagram

  • Title

1

Echo P021051221

GEAR CASE ASSY

Note: Includes ITEMS 2-15

$

$

Currently unavailable

2

Echo 61043450031

BOLT M8×8

$2.49

$

In Stock, Qty 7

0

3

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

4

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

6

Echo 90080300609

BEARING, BALL 609

$19.99

$

Usually ships in 2-4 days

0

7

Echo 90070200025

RING, SNAP Ø25

$2.49

$

In Stock, only 4 left!

0

8

Echo 90070100009

RING, SNAP Ø9

$0.99

$

Usually ships in 2-4 days

0

9

Echo V000000280

GEAR SET, BEVEL

$

$

Currently unavailable

10

Echo C535000320

PLATE, ADAPTOR - UPPER

$11.99

$

In Stock, only 3 left!

0

11

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 20+

0

12

Echo 90081206302

BEARING, BALL 6302

$19.99

$

In Stock, only 3 left!

0

13

Echo C534000220

SHAFT, GEAR

$72.99

$

In Stock, only 2 left!

0

14

Echo 90081000629

BEARING, BALL 629

$18.99

$

In Stock, only 2 left!

0

15

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0
