SRM-2620 T - Echo String Trimmer (SN: U44415001001 - U44415999999) Gear Case Parts Diagram

String Trimmer

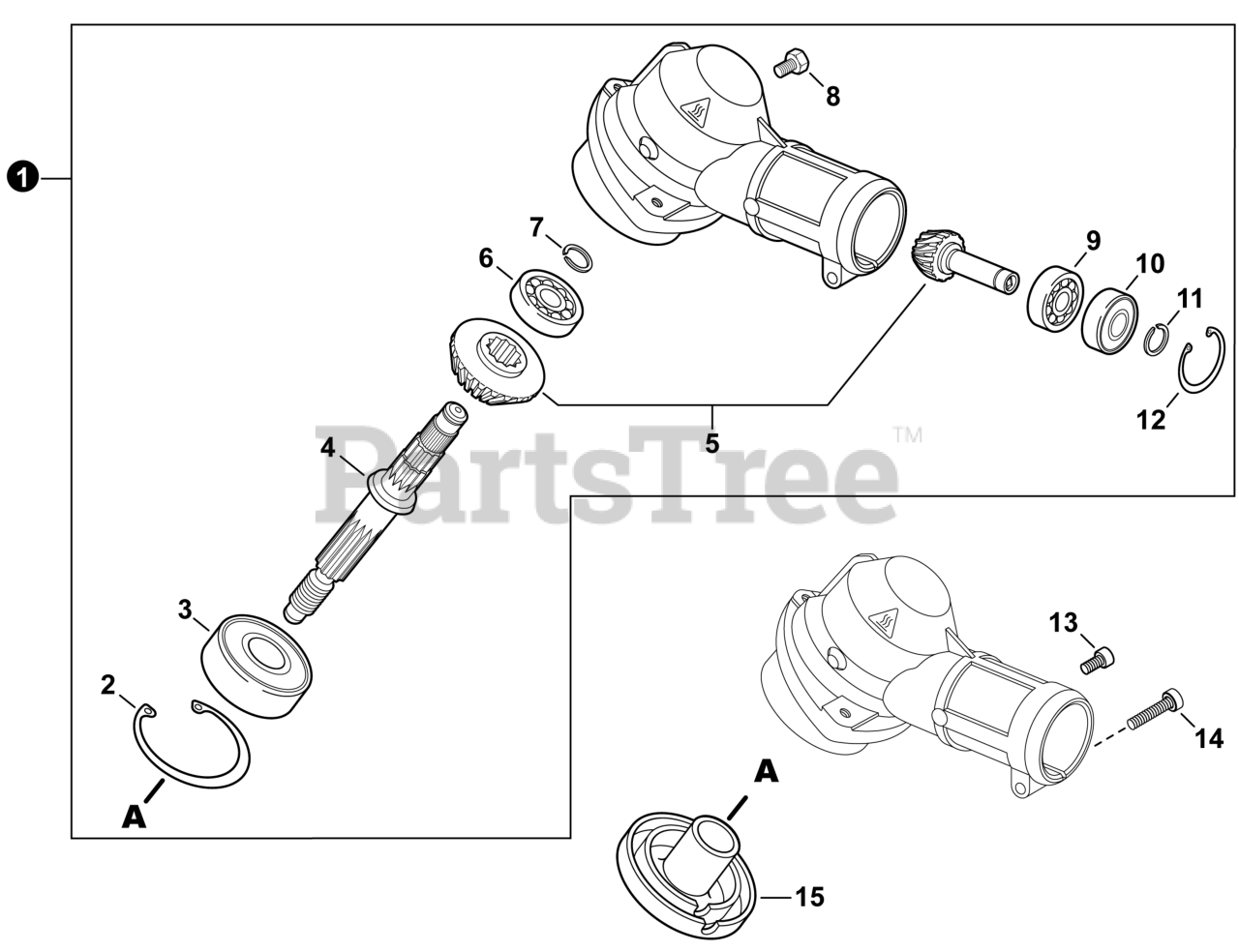

Gear Case Parts Diagram

  • Title

1

Echo C051001351

GEAR CASE ASSY

Note: Includes items 2-12

$121.99

$

In Stock, Qty 12

0

2

Echo 90070200042

RING, SNAP 42

$1.99

$

In Stock, Qty 20+

0

3

Echo 90081206302

BEARING, BALL 6302

$18.99

$

In Stock, Qty 9

0

4

Echo C534000220

SHAFT, GEAR

$67.99

$

In Stock, only 1 left!

0

5

Echo V000000270

GEAR SET

$83.99

$

Usually ships in 2-4 days

0

6

Echo 90081000629

BEARING, BALL 629

$16.99

$

Usually ships in 2-4 days

0

7

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 9

0

8

Echo 61043450031

BOLT M8x8

$1.99

$

In Stock, Qty 20+

0

9

Echo 90080000609

BEARING, BALL 609

$10.99

$

In Stock, Qty 7

0

10

Echo 90080300609

BEARING, BALL 609

$17.99

$

Usually ships in 2-4 days

0

11

Echo 90070100009

RING, SNAP 9

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90070200025

RING, SNAP 25

$2.49

$

In Stock, Qty 5

0

13

Echo V805000140

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

15

Echo C535000320

PLATE, ADAPTOR - UPPER

$10.99

$

In Stock, Qty 20+

0
