SRM-266 - Echo String Trimmer (SN: T47514001001 - T47514999999) Fuel System Parts Diagram

String Trimmer

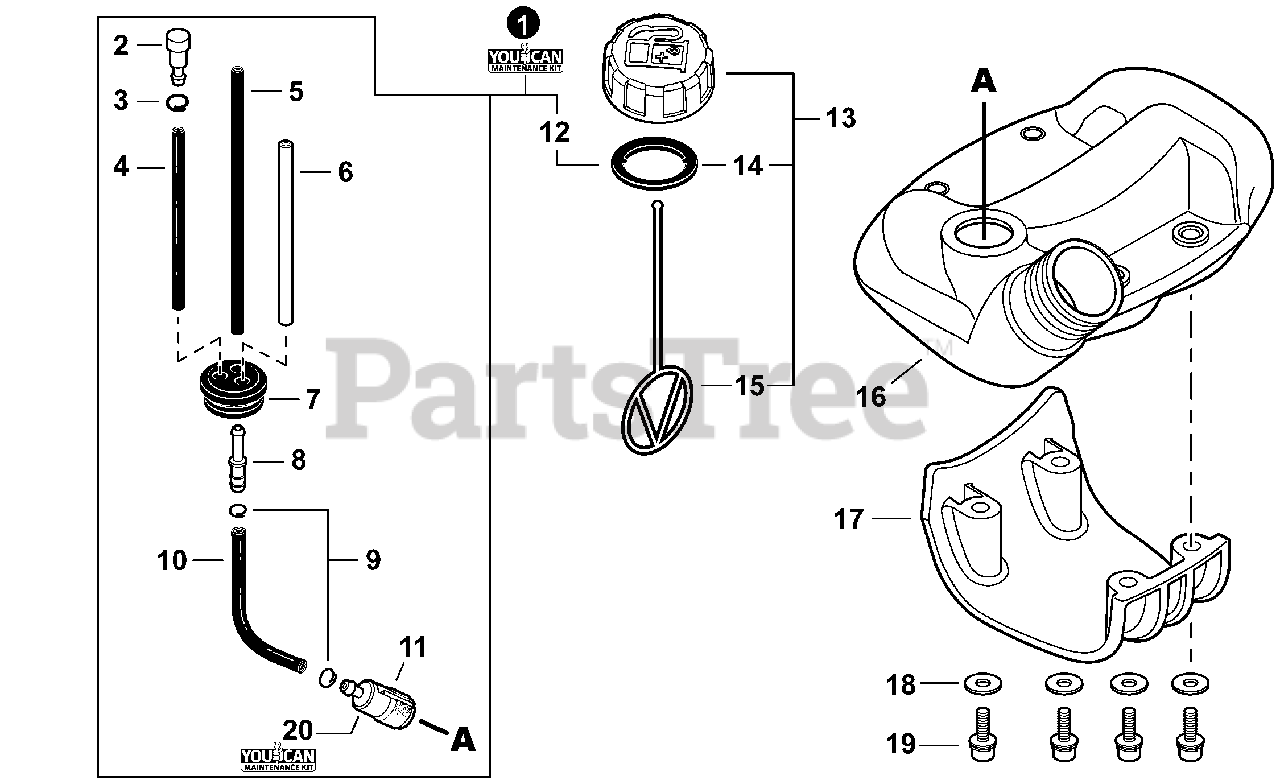

Fuel System Parts Diagram

  • Title

1

Echo 90137Y

FUEL SYSTEM KIT - YOUCAN™

Note: Includes Items 2-12

$27.99

$

In Stock, Qty 7

0

2

Echo A356000031

VENT ASSY

$8.99

$

In Stock, Qty 20+

0

3

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001180

PIPE, FUEL 3×6×35 BLACK
(Superseded to V471001181)

$1.99

$

In Stock, Qty 20+

0

5

Echo V471003710

PIPE, FUEL - 3×5×67 - BLACK
(Superseded to V471005600)

$3.49

$

In Stock, only 4 left!

0

6

Echo 13201040830

PIPE, FUEL 3×6×75 CLEAR

$1.99

$

In Stock, Qty 6

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

10

Echo V471003650

PIPE, FUEL - 3×5×125 - BLACK
(Superseded to V471003651)

$1.99

$

In Stock, Qty 19

0

11

Echo A369000440

FILTER, FUEL

$7.99

$

In Stock, Qty 20+

0

12

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

13

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 14-15

$6.49

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

15

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

16

Echo P021013640

TANK, FUEL
(Superseded to P021013641)

$28.99

$

Usually ships in 2-4 days

0

17

Echo A175000030

GUARD, FUEL TANK

$6.49

$

Usually ships in 2-4 days

0

18

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

20

Echo 90125Y

TUNE-UP KIT - YOUCAN™

$21.99

$

In Stock, Qty 20+
