SRM-266 T - Echo String Trimmer (SN: T47714001001 - T47714999999) Gear Case Parts Diagram

String Trimmer

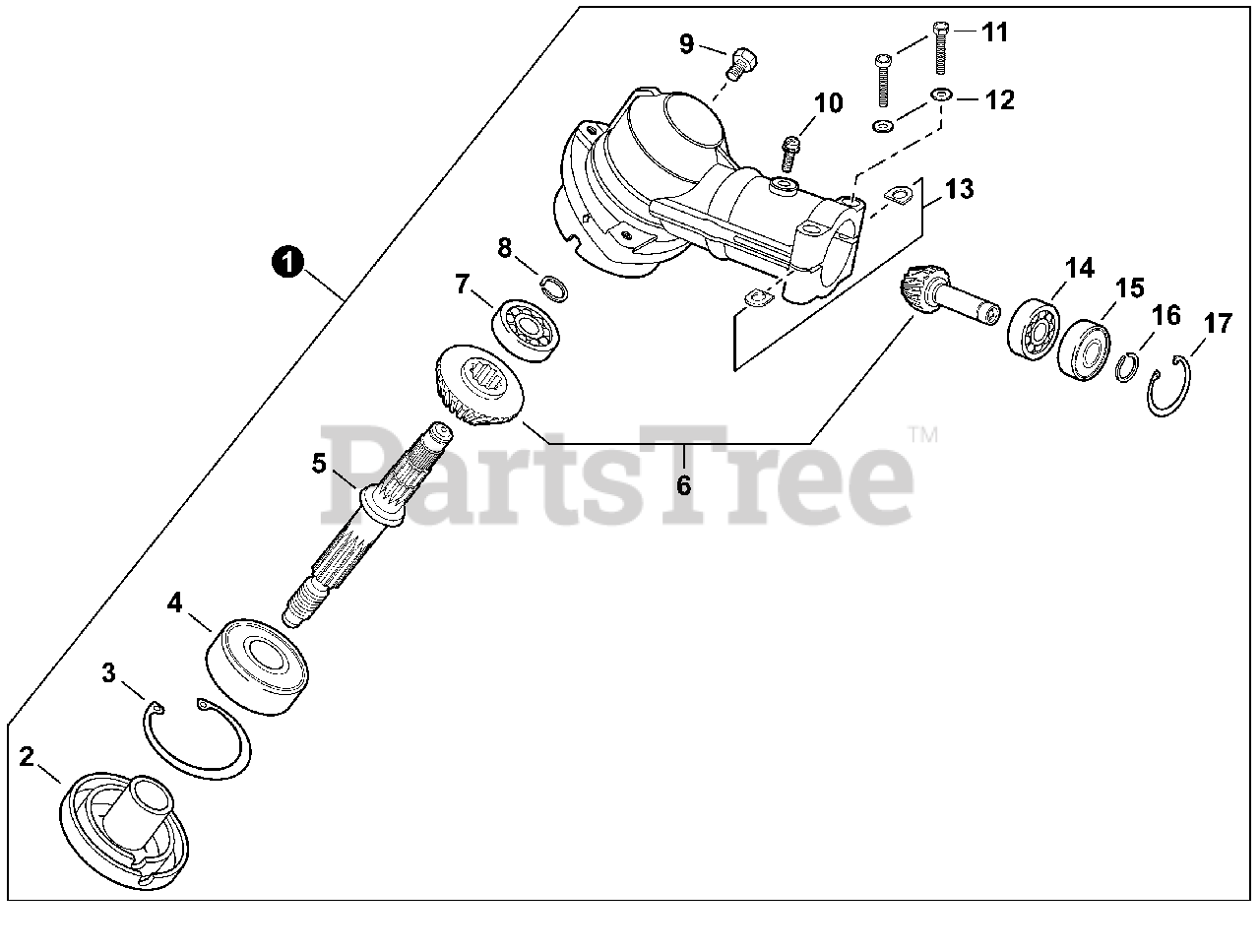

Gear Case Parts Diagram

  • Title

1

Echo P021013432

GEAR CASE ASSY

Note: Includes ITEMS 2-17

$139.99

$

In Stock, Qty 9

0

2

Echo C535000320

PLATE, ADAPTOR - UPPER

$10.99

$

In Stock, Qty 20+

0

3

Echo 90070200042

RING, SNAP 42

$1.99

$

In Stock, Qty 20+

0

4

Echo 90081206302

BEARING, BALL 302

$18.99

$

In Stock, Qty 9

0

5

Echo C534000220

SHAFT, GEAR

$67.99

$

In Stock, only 1 left!

0

6

Echo V000000020

GEAR SET

$67.99

$

In Stock, only 2 left!

0

7

Echo 90081000629

BEARING, BALL 629

$16.99

$

Usually ships in 2-4 days

0

8

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 9

0

9

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 20+

0

10

Echo 90024205012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

11

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 17

0

12

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

14

Echo 90085506900

BEARING, BALL 6900

$20.99

$

In Stock, only 2 left!

0

15

Echo 90085806900

BEARING, BALL 6900-Z

$25.99

$

In Stock, only 3 left!

0

16

Echo 90070600010

RING, SNAP 10

$1.49

$

In Stock, Qty 20+

0

17

Echo 90070200022

RING, SNAP 22

$2.49

$

In Stock, Qty 15

0
