SRM-270 - Echo String Trimmer (SN: 36001001 - 36999999) Gear Case, Blade Parts Diagram

String Trimmer

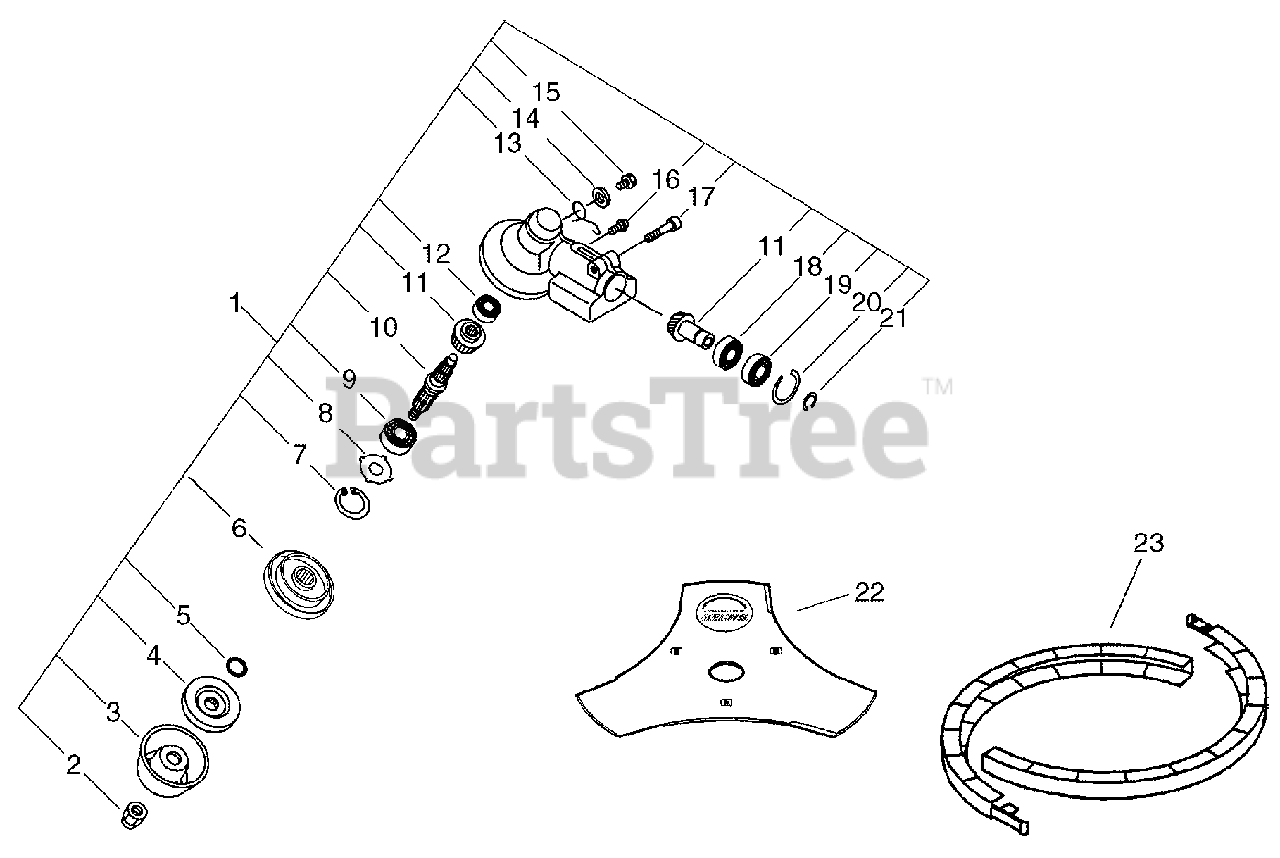

Gear Case, Blade Parts Diagram

  • Title

1

Echo P021012600

CASE, GEAR
(Superseded to P021012603)

$219.99

$

Usually ships in 2-4 days

0

2

Echo 61032052130

NUT, LOCK 10 - NYLON INSERT

$5.99

$

Usually ships in 2-4 days

0

3

Echo 69922956830

CUP

$26.99

$

Usually ships in 2-4 days

0

4

Echo 61031452130

PLATE, ADAPTOR - LOWER

$27.99

$

Usually ships in 2-4 days

0

5

Echo 90072000012

O-RING 12 MM

$1.99

$

In Stock, only 1 left!

0

6

Echo 61031352932

RETAINER, BLADE
(Superseded to P050010710)

$38.99

$

Usually ships in 2-4 days

0

7

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

8

Echo 61044456830

WASHER

$1.99

$

Usually ships in 2-4 days

0

9

Echo 90081206201

BEARING, BALL 6201

$14.99

$

In Stock, only 2 left!

0

10

Echo 61031056830

GEAR, SHAFT
(Superseded to 61031056831)

$55.99

$

Usually ships in 2-4 days

0

11

Echo 61030025531

GEAR SET
(Superseded to V000000030)

$136.99

$

Usually ships in 2-4 days

0

12

Echo 90081000626

BEARING, BALL 626

$13.99

$

In Stock, only 1 left!

0

13

Echo 61047352131

SPRING, TORSION
(Superseded to V452001310)

$8.49

$

Usually ships in 2-4 days

0

14

Echo 90060350008

WASHER 8.5×18×0.8T

$1.99

$

Usually ships in 2-4 days

0

15

Echo 610434-50031

BOLT M8×8

$2.49

$

In Stock, Qty 7

0

16

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

17

Echo 9111806025

BOLT

$

$

Not available

18

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

19

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

20

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

21

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

22

Echo X405000011

BLADE, 9" 3-TOOTH

$

$

Currently unavailable

23

Echo P021007470

SCABBARD

$14.99

$

Usually ships in 2-4 days

0
