SRM-270 - Echo String Trimmer (SN: 36001001 - 36999999) Gear Case, Blade Parts Diagram

String Trimmer

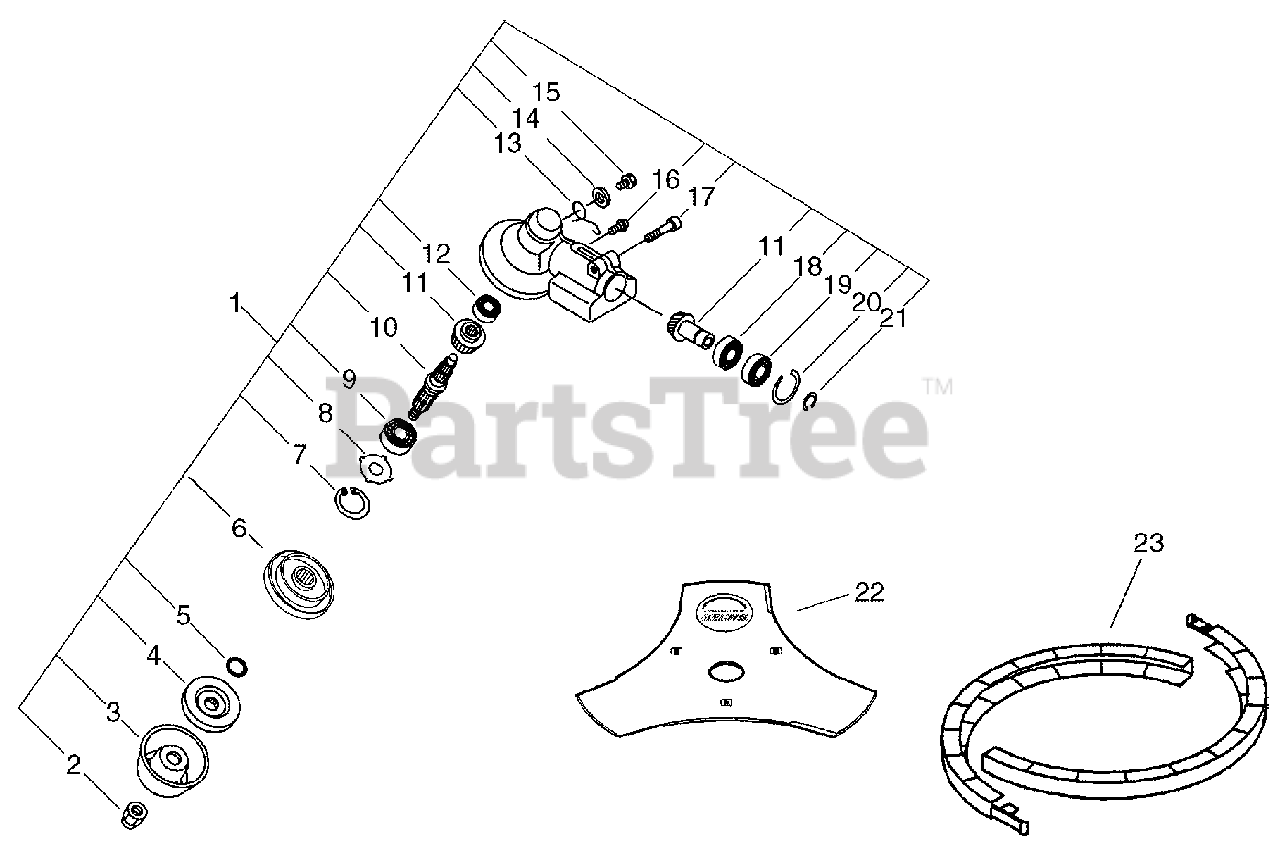

Gear Case, Blade Parts Diagram

  • Title

1

Echo P021012600

CASE, GEAR
(Superseded to P021012603)

$219.99

$

Usually ships in 2-4 days

0

2

Echo 61032052130

NUT - 10

$5.49

$

Usually ships in 2-4 days

0

3

Echo 69922956830

GUARD

$24.99

$

Usually ships in 2-4 days

0

4

Echo 61031452130

ADAPTOR, BLADE - LOWER

$25.99

$

Usually ships in 2-4 days

0

5

Echo 90072000012

O-RING - 12

$1.99

$

In Stock, only 1 left!

0

6

Echo 61031352932

BLADE ADAPTER KIT
(Superseded to P050010710)

$38.99

$

Usually ships in 2-4 days

0

7

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 11

0

8

Echo 61044456830

WASHER

$1.99

$

Usually ships in 2-4 days

0

9

Echo 90081206201

BEARING, BALL - 6201

$13.99

$

In Stock, Qty 9

0

10

Echo 61031056830

GEAR - SHAFT
(Superseded to 61031056831)

$51.99

$

Usually ships in 2-4 days

0

11

Echo 61030025531

GEAR SET
(Superseded to V000000030)

$126.99

$

Usually ships in 2-4 days

0

12

Echo 90081000626

BEARING, BALL - 626

$12.99

$

In Stock, only 1 left!

0

13

Echo 61047352131

SPRING
(Superseded to V452001310)

$7.99

$

Usually ships in 2-4 days

0

14

Echo 90060350008

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

15

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, Qty 20+

0

16

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

17

Echo 9111806025

SCREW - 6X25

$1.99

$

Usually ships in 2-4 days

0

18

Echo 90085506900

BEARING, BALL - 6900

$20.99

$

In Stock, only 2 left!

0

19

Echo 90085806900

BEARING, BALL - 6900Z

$25.99

$

In Stock, only 3 left!

0

20

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 15

0

21

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

22

Echo X405000011

BLADE, BRUSHCUTTER

$

$

Currently unavailable

23

Echo P021007470

COVER, BLADE

$13.99

$

Usually ships in 2-4 days

0
