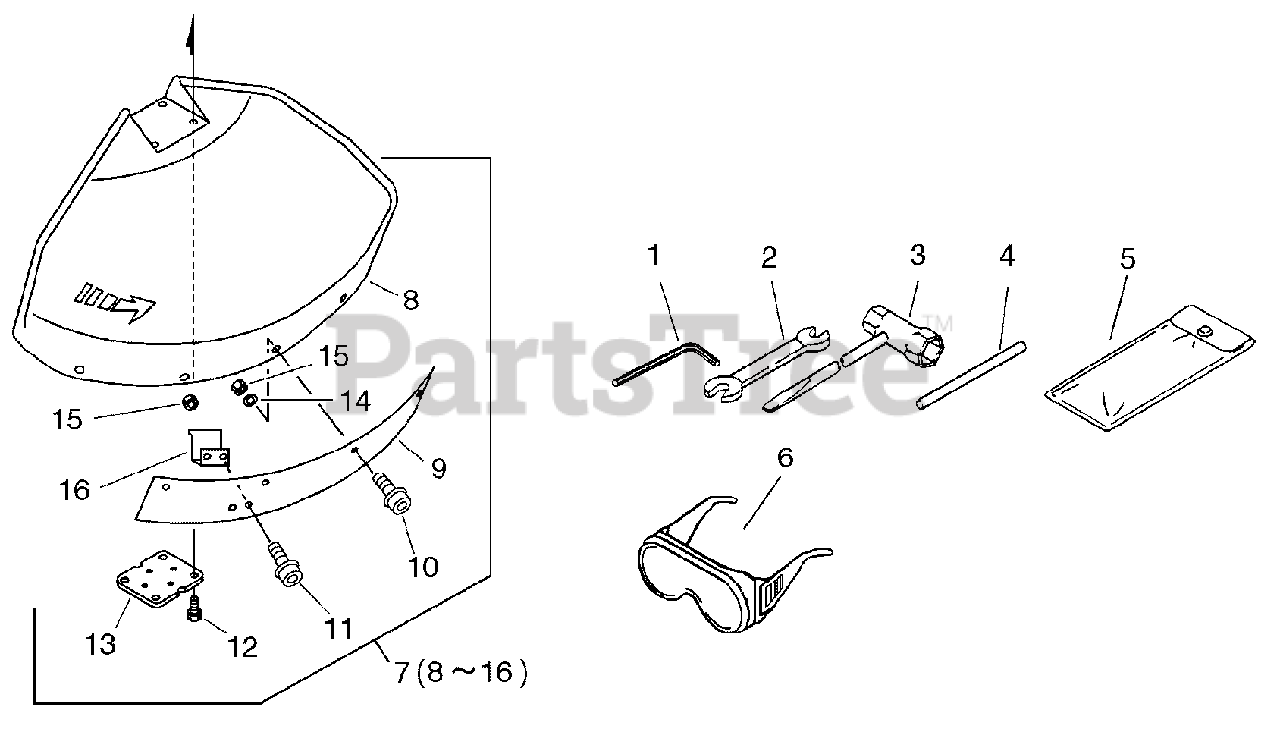

SRM-270 - Echo String Trimmer (SN: 36001001 - 36999999) Shield, Tools Parts Diagram

String Trimmer

Shield, Tools Parts Diagram

  • Title

1

Echo 89561000130

WRENCH, ALLEN 4 MM
(Superseded to X605000100)

$1.99

$

In Stock, only 3 left!

0

2

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

3

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

4

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

5

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, only 3 left!

0

6

Echo X690000080

GLASSES, SAFETY

$5.49

$

In Stock, Qty 16

0

7

Echo P021012620

DEBRIS SHIELD ASSY
(Superseded to P021012621)

$108.99

$

Usually ships in 2-4 days

0

8

Echo 69901052931

SHIELD, DEBRIS

$54.99

$

Usually ships in 2-4 days

0

9

Echo 699013-52130

EXTENSION, SHIELD

$21.99

$

Usually ships in 2-4 days

0

10

Echo 9111805018

SCREW 5×18

$1.49

$

Usually ships in 2-4 days

0

11

Echo 9111805014

BOLT 5×14

$1.49

$

Usually ships in 2-4 days

0

12

Echo 9111805025

BOLT 5×25

$1.49

$

Usually ships in 2-4 days

0

13

Echo 69901356830

PLATE, SHIELD
(Superseded to C552000200)

$4.49

$

Usually ships in 2-4 days

0

14

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 699016-54530

CUTTER, LINE

$27.99

$

Usually ships in 2-4 days

0
