SRM-270 U - Echo Brush Cutter (SN: S52520001001 - S52520999999) Cylinder, Piston, Crankcase, Engine Cover Parts Diagram

Brush Cutter

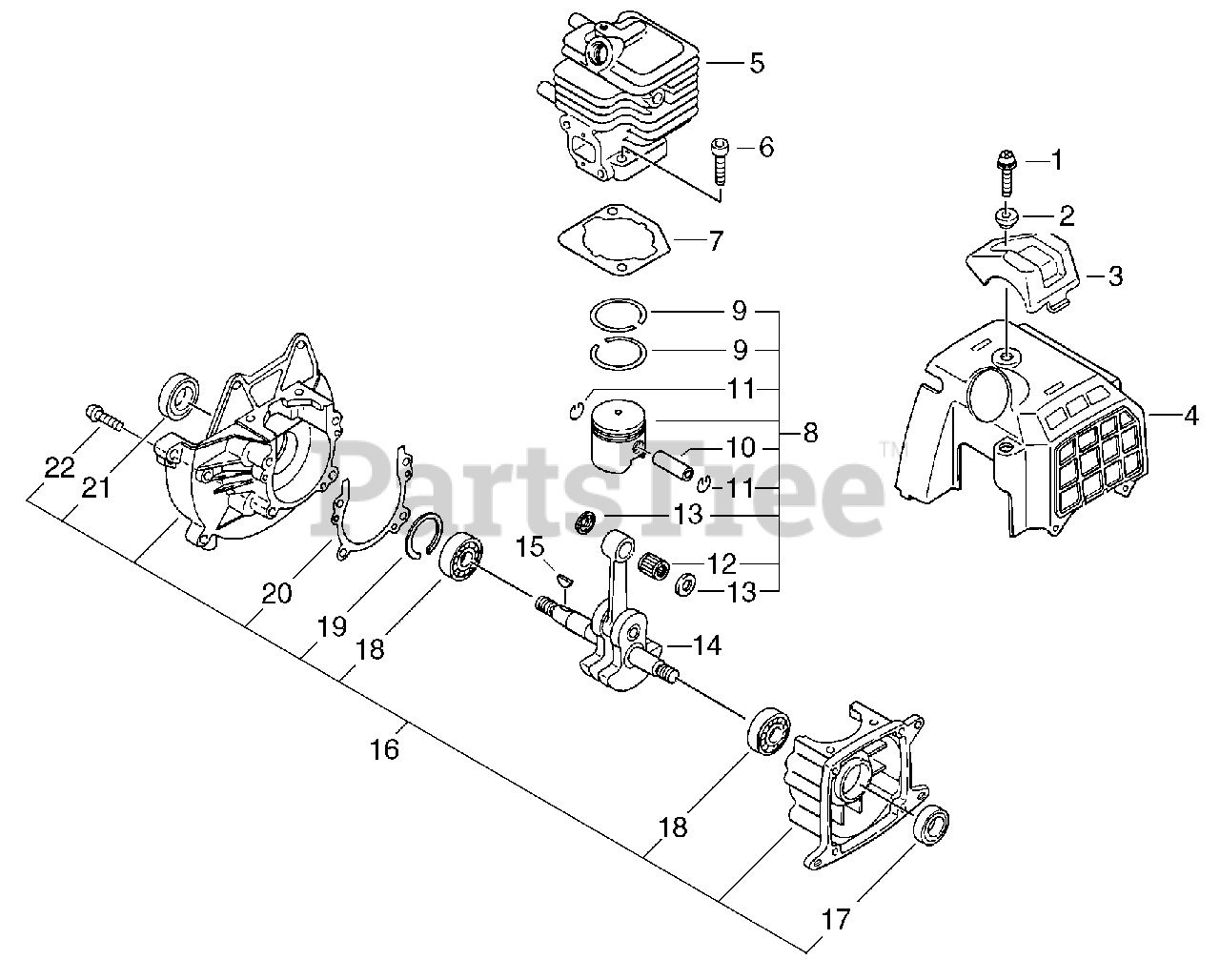

Cylinder, Piston, Crankcase, Engine Cover Parts Diagram

  • Title

1

Echo 9112105020

BOLT, FLANGE

$1.49

$

Usually ships in 2-4 days

0

2

Echo V353000020

COLLAR 5

$1.99

$

In Stock, Qty 20+

0

3

Echo 15990555930

GUARD, TOP

$12.99

$

Usually ships in 2-4 days

0

4

Echo A160000220

COVER, ENGINE

$28.99

$

Usually ships in 2-4 days

0

5

Echo 10103456532

CYLINDER

$217.99

$

Usually ships in 2-4 days

0

6

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

7

Echo 10101056030

GASKET, CYLINDER

$5.99

$

Usually ships in 2-4 days

0

8

Echo P021000371

PISTON KIT

$103.99

$

Usually ships in 2-4 days

0

9

Echo A101000010

RING, PISTON

$9.99

$

In Stock, Qty 20+

0

10

Echo V606000000

PIN, PISTON

$7.99

$

In Stock, only 2 left!

0

11

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

12

Echo V553000020

BEARING, NEEDLE 8
(Superseded to V553000140)

$12.99

$

Usually ships in 2-4 days

0

13

Echo 10001455930

WASHER, THRUST

$4.49

$

Usually ships in 2-4 days

0

14

Echo 10010056032

CRANKSHAFT ASSY
(Superseded to 10010056033)

$206.99

$

Usually ships in 2-4 days

0

15

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

16

Echo 10020456232

CRANKCASE KIT

$109.99

$

Usually ships in 2-4 days

0

17

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 11

0

18

Echo 90080036001

BEARING, BALL 6001

$11.99

$

In Stock, Qty 7

0

19

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

20

Echo 10024255930

GASKET, CRANKCASE

$4.49

$

In Stock, only 2 left!

0

21

Echo 10021228230

SEAL, OIL 12

$4.99

$

In Stock, only 2 left!

0

22

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0
