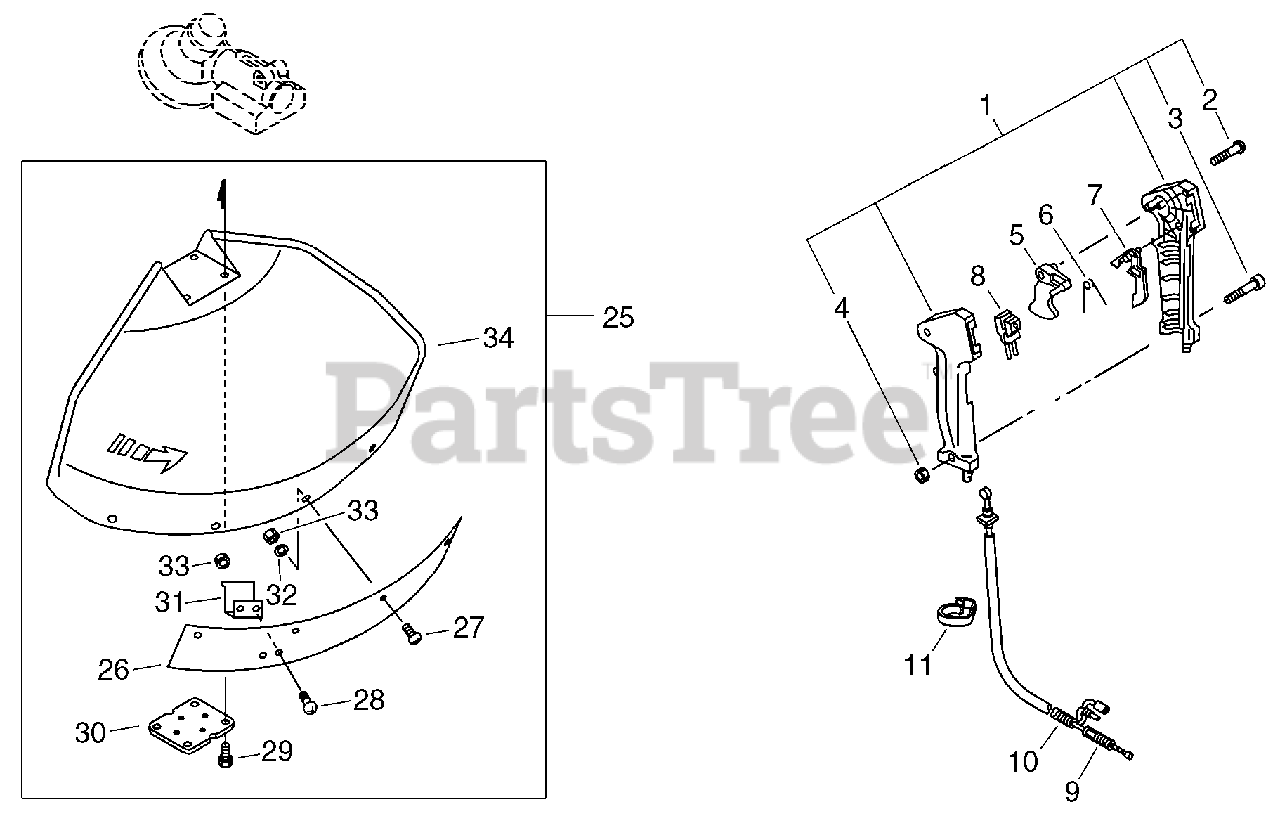

SRM-270 U - Echo Brush Cutter (SN: S52520001001 - S52520999999) Debris Shield, Throttle Control Parts Diagram

Brush Cutter

Debris Shield, Throttle Control Parts Diagram

  • Title

1

Echo 351102-47530

CONTROL HANDLE KIT

$41.99

$

In Stock, only 2 left!

0

2

Echo 900246-03025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

6

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

7

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

8

Echo A440000300

SWITCH, ON-OFF

$12.99

$

Usually ships in 2-4 days

0

9

Echo 17800159230

CABLE, THROTTLE

$

$

Not available

10

Echo V475000000

TUBE, FLEXIBLE 7×790

$6.49

$

Usually ships in 2-4 days

0

11

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

25

Echo P021012620

DEBRIS SHIELD ASSY
(Superseded to P021012621)

$108.99

$

Usually ships in 2-4 days

0

26

Echo 699013-52130

EXTENSION, SHIELD

$21.99

$

Usually ships in 2-4 days

0

27

Echo 9111805018

SCREW 5×18

$1.49

$

Usually ships in 2-4 days

0

28

Echo 9111805014

BOLT 5×14

$1.49

$

Usually ships in 2-4 days

0

29

Echo V203001980

BOLT 5×25

$1.99

$

Usually ships in 2-4 days

0

30

Echo C552000200

PLATE, SHIELD

$4.49

$

Usually ships in 2-4 days

0

31

Echo 699016-54530

CUTTER, LINE

$27.99

$

Usually ships in 2-4 days

0

32

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

33

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

34

Echo 69901052931

SHIELD, DEBRIS

$54.99

$

Usually ships in 2-4 days

0
