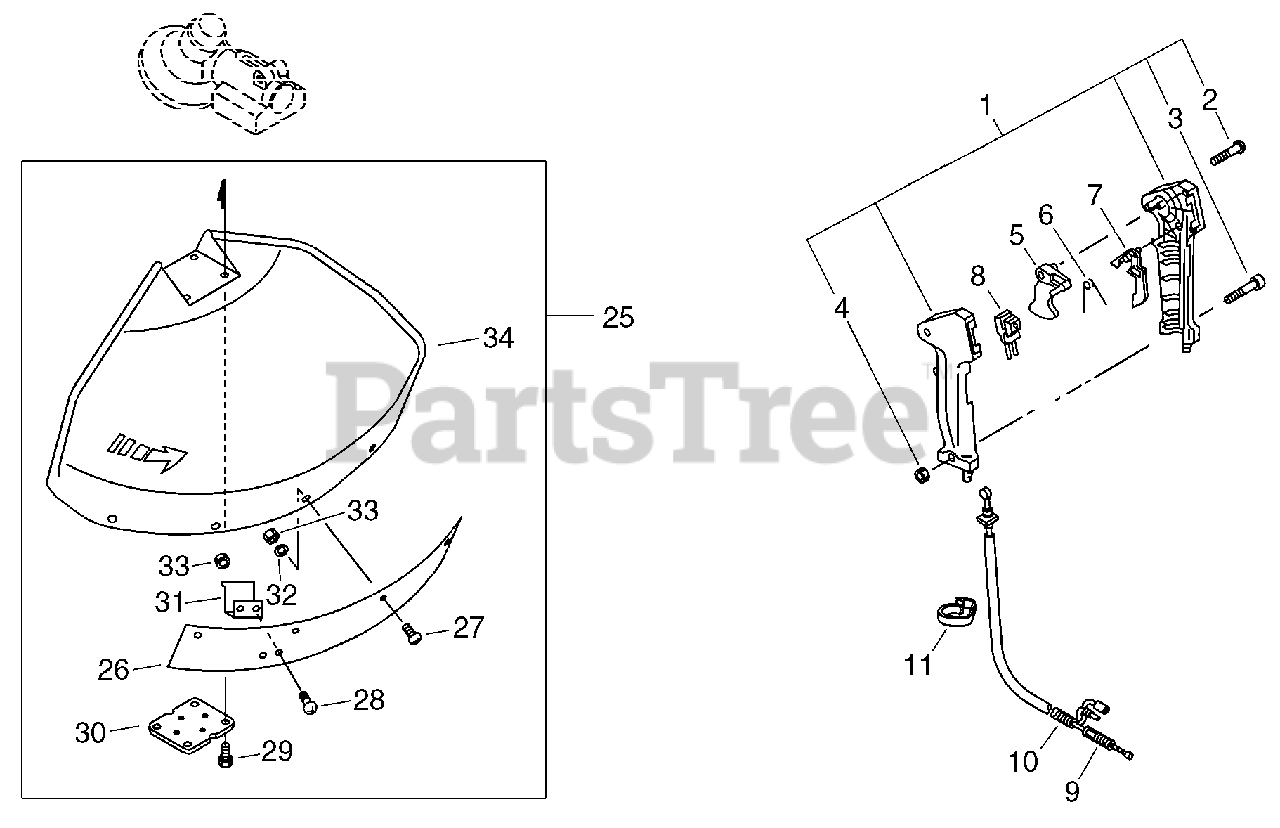

SRM-270 U - Echo Brush Cutter (SN: S52520001001 - S52520999999) Debris Shield, Throttle Control Parts Diagram

Brush Cutter

Debris Shield, Throttle Control Parts Diagram

  • Title

1

Echo 35110247530

THROTTLE CONTROL ASSY

$41.99

$

In Stock, only 3 left!

0

2

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

3

Echo 90022005030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 17801005960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 3 left!

0

6

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.99

$

In Stock, Qty 6

0

7

Echo 17801205960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 1 left!

0

8

Echo A440000300

IGNITION SWITCH ASSY

$12.99

$

Usually ships in 2-4 days

0

9

Echo 17800159230

CABLE, THROTTLE

$

$

Not available

10

Echo V475000000

TUBE, PROTECTIVE - CORRUGATED

$6.49

$

Usually ships in 2-4 days

0

11

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

25

Echo P021012620

DEBRIS SHIELD ASSY
(Superseded to P021012621)

$108.99

$

Usually ships in 2-4 days

0

26

Echo 69901352130

GUARD, SHIELD

$21.99

$

Usually ships in 2-4 days

0

27

Echo 9111805018

SCREW - 5X18

$1.49

$

Usually ships in 2-4 days

0

28

Echo 9111805014

SCREW - 5X14

$1.49

$

Usually ships in 2-4 days

0

29

Echo V203001980

BOLT - 5X25

$1.99

$

Usually ships in 2-4 days

0

30

Echo C552000200

BRACKET, SHIELD

$4.49

$

Usually ships in 2-4 days

0

31

Echo 69901654530

KNIFE, TRIMMER LINE

$27.99

$

Usually ships in 2-4 days

0

32

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 69901052931

SHIELD, DEBRIS

$54.99

$

Usually ships in 2-4 days

0
