SRM-270 U - Echo Brush Cutter (SN: S52520001001 - S52520999999) Fan Cover, Clutch, Flywheel Parts Diagram

Brush Cutter

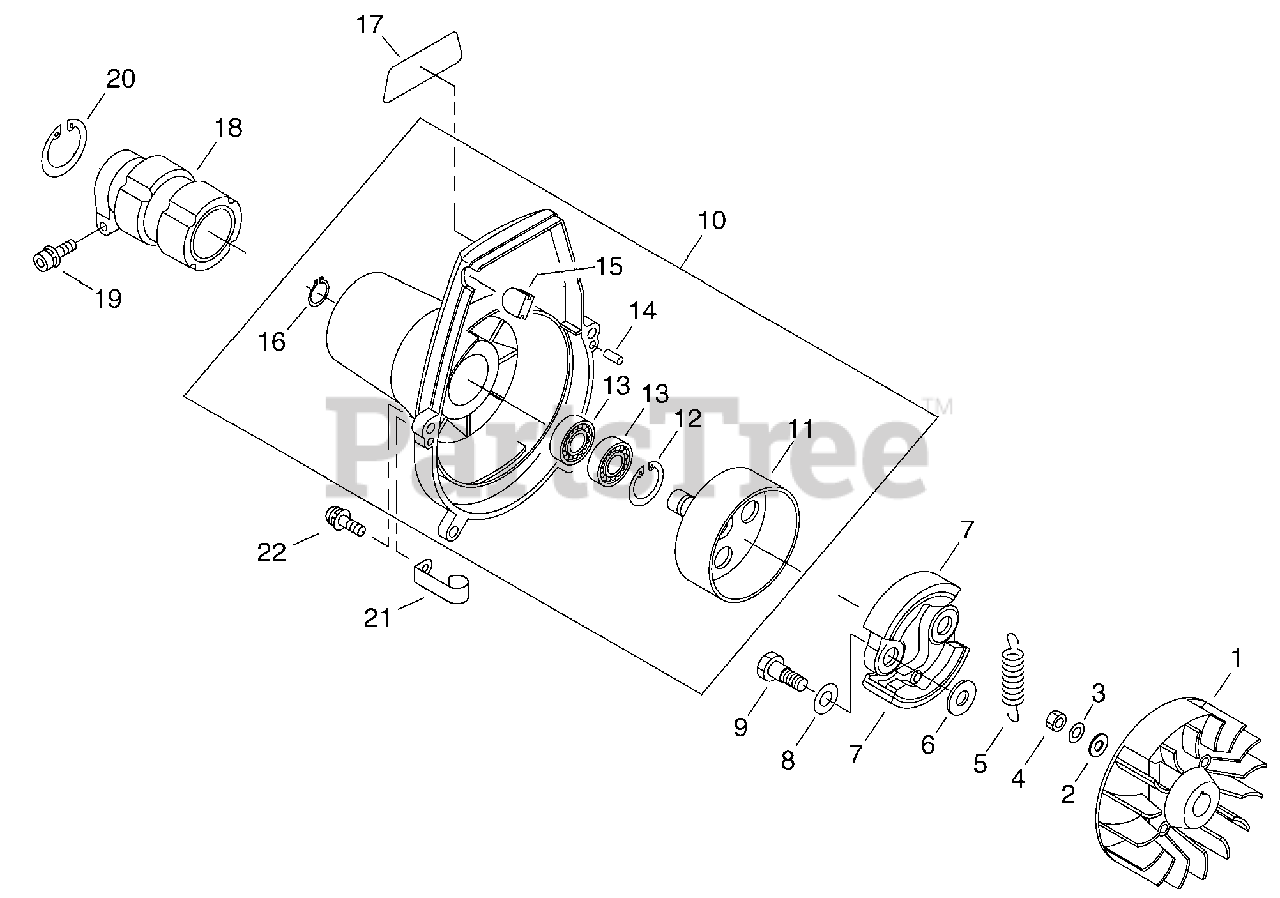

Fan Cover, Clutch, Flywheel Parts Diagram

  • Title

1

Echo 15280155930

FLYWHEEL

$135.99

$

Usually ships in 2-4 days

0

2

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

3

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

4

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

5

Echo 17501805533

SPRING, CLUTCH

$2.49

$

In Stock, only 2 left!

0

6

Echo 17504805530

WASHER 6.2×19×1.0

$1.99

$

In Stock, Qty 20+

0

7

Echo 17500955931

SHOE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

8

Echo 17504956030

WASHER, SPRING 8.5×16×0.5

$1.99

$

In Stock, Qty 20+

0

9

Echo 17504656030

BOLT, CLUTCH 8×7.9×M6

$5.99

$

In Stock, Qty 20+

0

10

Echo 10150356032

COVER ASSY, FAN

$150.99

$

Usually ships in 2-4 days

0

11

Echo A556000560

DRUM, CLUTCH

$81.99

$

In Stock, only 1 left!

0

12

Echo 90070200026

RING, SNAP 26

$2.49

$

In Stock, Qty 6

0

13

Echo 90080706000

BEARING, BALL 6000LU

$15.99

$

Usually ships in 2-4 days

0

14

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

15

Echo 10153828230

GROMMET, PLUG

$1.99

$

Usually ships in 2-4 days

0

16

Echo 90070100010

E-RING 10

$0.99

$

In Stock, only 2 left!

0

17

Echo X547000950

LABEL - MODEL SRM-270

$4.49

$

Usually ships in 2-4 days

0

18

Echo 61092255931

HOLDER, MAIN PIPE

$40.99

$

Usually ships in 2-4 days

0

19

Echo 9111805028

BOLT 5×28

$1.99

$

Usually ships in 2-4 days

0

20

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 20+

0

21

Echo 17811106230

CLIP

$2.99

$

Usually ships in 2-4 days

0

22

Echo 9111805018

SCREW 5×18

$1.49

$

Usually ships in 2-4 days

0
