SRM-270 U - Echo Brush Cutter (SN: S52520001001 - S52520999999) Gear Case Parts Diagram

Brush Cutter

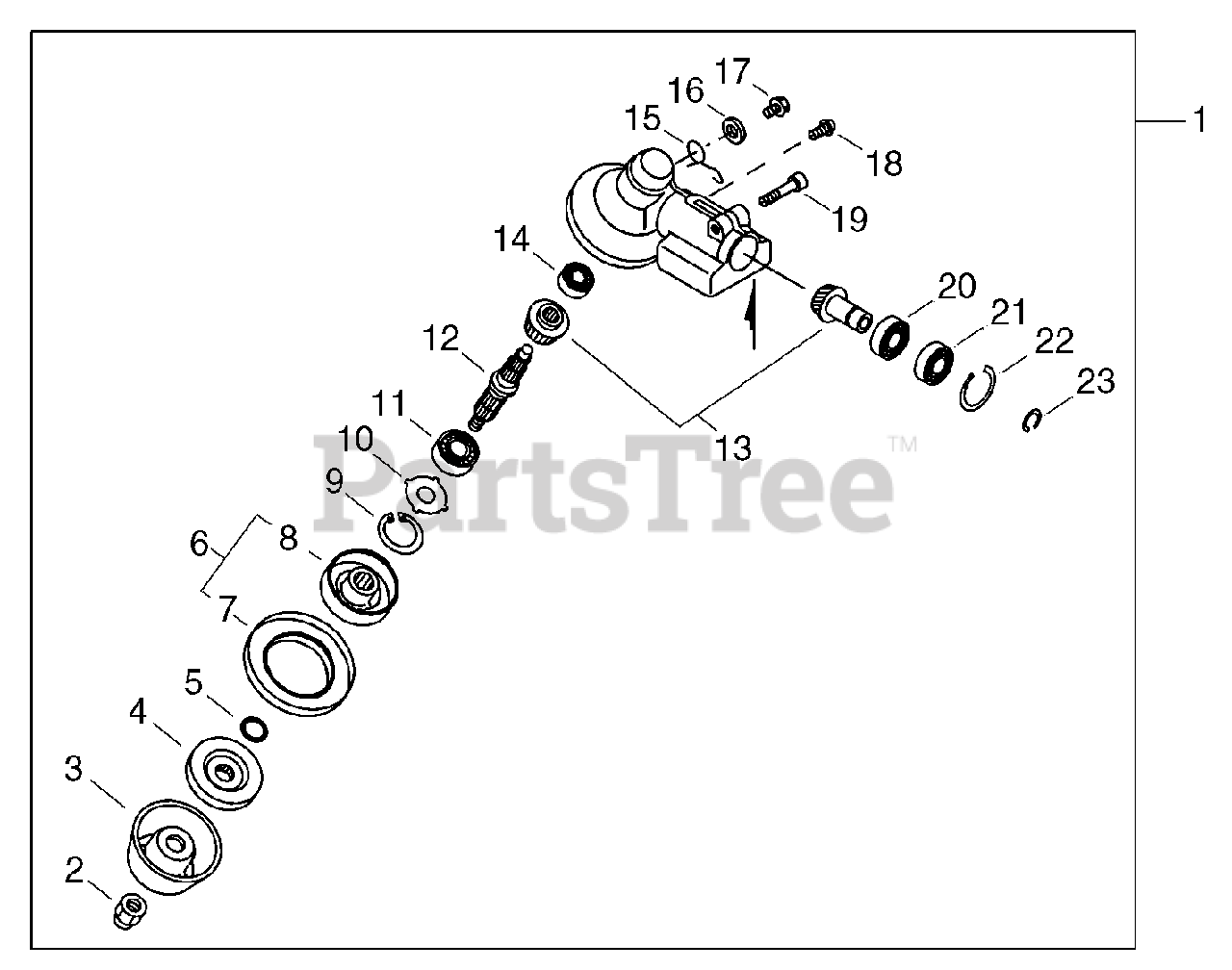

Gear Case Parts Diagram

  • Title

1

Echo P021012613

GEAR CASE ASSY
(Superseded to P021012614)

$157.99

$

Usually ships in 2-4 days

0

2

Echo 61032052130

NUT, LOCK 10 - NYLON INSERT

$5.99

$

Usually ships in 2-4 days

0

3

Echo 69922956830

CUP

$26.99

$

Usually ships in 2-4 days

0

4

Echo 61031452130

PLATE, ADAPTOR - LOWER

$27.99

$

Usually ships in 2-4 days

0

5

Echo 90072000012

O-RING 12 MM

$1.99

$

In Stock, only 1 left!

0

6

Echo C535000001

RETAINER ASSY, BLADE
(Superseded to 61031352932)

$38.99

$

Usually ships in 2-4 days

0

7

Echo 61035256830

PLATE, ADAPTOR - LOWER

$27.99

$

Usually ships in 2-4 days

0

8

Echo C535000011

RETAINER, BLADE

$41.99

$

Usually ships in 2-4 days

0

9

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

10

Echo 61044456830

WASHER

$1.99

$

Usually ships in 2-4 days

0

11

Echo 90081206201

BEARING, BALL 6201

$14.99

$

In Stock, only 2 left!

0

12

Echo 61031056831

SHAFT, GEAR
(Superseded to 61031056832)

$55.99

$

Usually ships in 2-4 days

0

13

Echo V000000040

GEAR SET, BEVEL

$136.99

$

Usually ships in 2-4 days

0

14

Echo 9406000626

BEARING, BALL 626
(Superseded to 90081000626)

$13.99

$

In Stock, only 1 left!

0

15

Echo V452001310

SPRING, TORSION

$8.49

$

Usually ships in 2-4 days

0

16

Echo 90060350008

WASHER 8.5×18×0.8T

$1.99

$

Usually ships in 2-4 days

0

17

Echo 610434-50031

BOLT M8×8

$2.49

$

In Stock, Qty 7

0

18

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

19

Echo 9111806025

BOLT

$

$

Not available

20

Echo 9406006900

BEARING, BALL 6900
(Superseded to 90085506900)

$21.99

$

In Stock, only 2 left!

0

21

Echo 9406306900

BEARING, BALL 6900Z
(Superseded to 90085806900)

$27.99

$

In Stock, only 2 left!

0

22

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

23

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0
