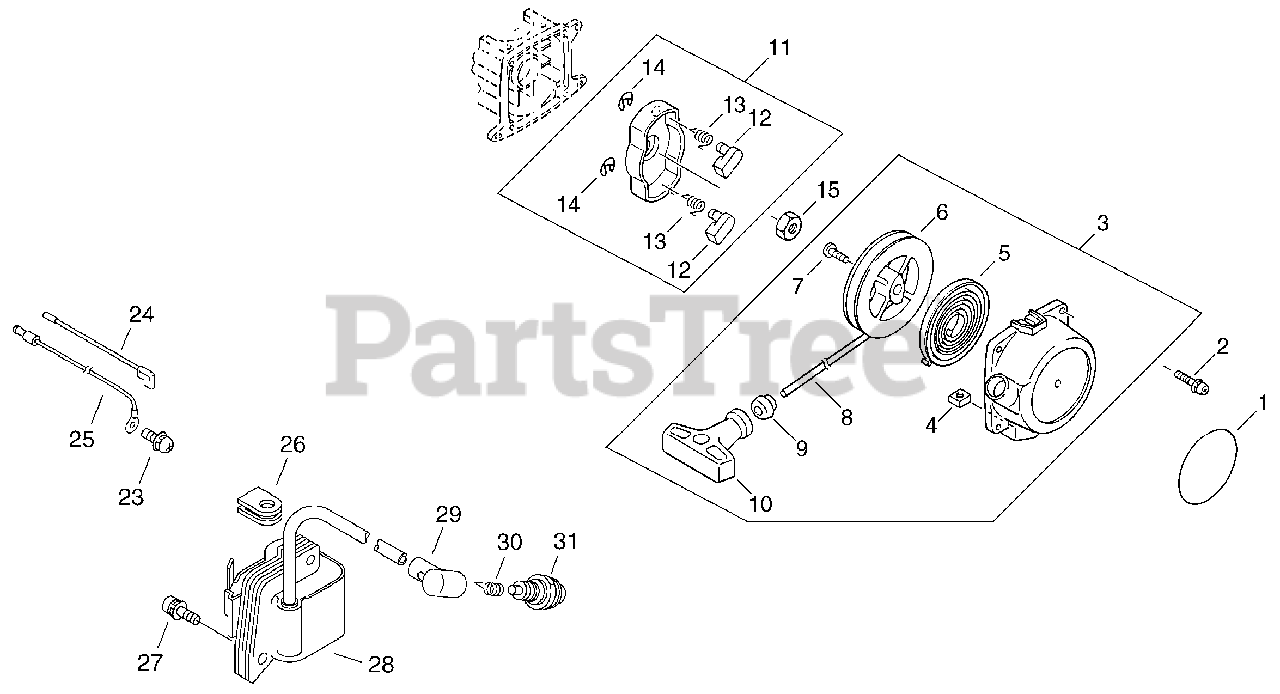

SRM-270 U - Echo Brush Cutter (SN: S52520001001 - S52520999999) Ignition, Starter Parts Diagram

Brush Cutter

Ignition, Starter Parts Diagram

  • Title

1

Echo X502000330

LABEL, RECOIL STARTER

$0.99

$

In Stock, Qty 20+

0

2

Echo 9111804014

BOLT 4×14

$1.49

$

Usually ships in 2-4 days

0

3

Echo 17720055931

STARTER ASSY, RECOIL

$48.99

$

In Stock, only 2 left!

0

4

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

5

Echo 17722040630

SPRING, RECOIL

$15.99

$

In Stock, only 1 left!

0

6

Echo 17721540630

REEL, ROPE

$11.99

$

In Stock, only 1 left!

0

7

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

8

Echo 17722661830

ROPE, STARTER 3×800

$8.99

$

Usually ships in 2-4 days

0

9

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

10

Echo 17722827030

GRIP, STARTER

$7.49

$

In Stock, only 3 left!

0

11

Echo A052000030

PAWL ASSY, STARTER

$15.99

$

In Stock, Qty 15

0

12

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

13

Echo 17723440630

SPRING, RETURN

$3.99

$

Usually ships in 2-4 days

0

14

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

15

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

23

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

24

Echo 16201056430

LEAD - IGNITION 145 MM

$7.99

$

In Stock, only 2 left!

0

25

Echo 16201452930

LEAD - GROUND

$5.99

$

In Stock, only 2 left!

0

26

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

27

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

28

Echo 15262656032

COIL, IGNITION

$129.99

$

Usually ships in 2-4 days

0

29

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

30

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

31

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0
