SRM-280 - Echo String Trimmer (SN: S81513001001 - S81513999999) Control Handle S/N: S81513006749 - S81513006915 Parts Diagram

String Trimmer

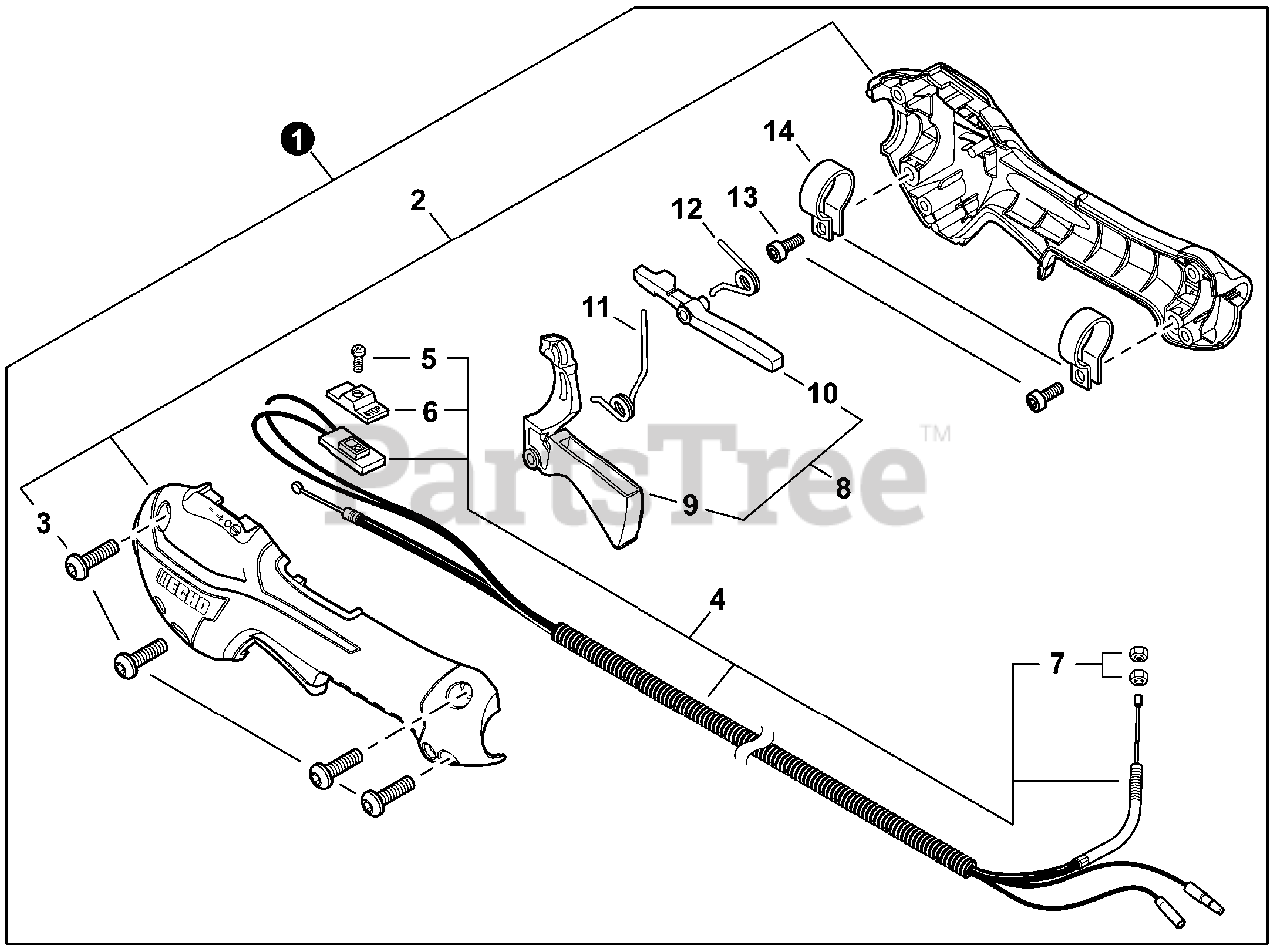

Control Handle S/N: S81513006749 - S81513006915 Parts Diagram

  • Title

1

Echo P021044382

CONTROL HANDLE ASSY
(Superseded to P021044383)

Note: Includes Items 2-14

$39.99

$

In Stock, only 2 left!

0

2

Echo P021044370

CONTROL HANDLE KIT
(Superseded to P021044371)

Note: Includes Item 3

$12.99

$

In Stock, only 2 left!

0

3

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

4

Echo P021044740

CABLE ASSY, CONTROL

Note: Includes Items 5-7

$19.99

$

In Stock, only 2 left!

0

5

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

6

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

7

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

8

Echo P021047440

THROTTLE LOCKOUT KIT

Note: Includes Items 9-10

$4.99

$

In Stock, Qty 16

0

9

Echo C453000482

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 12

0

10

Echo C460000441

LEVER, THROTTLE LOCKOUT

$1.99

$

In Stock, Qty 20+

0

11

Echo V452001520

SPRING, TORSION

$1.49

$

In Stock, Qty 20+

0

12

Echo V452001510

SPRING, TORSION

$1.49

$

In Stock, Qty 20+

0

13

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

14

Echo V495003020

CLAMP

$1.49

$

In Stock, Qty 6

0
