SRM-280 - Echo String Trimmer (SN: S81513001001 - S81513999999) Fuel System S/N: S81513001001 - S81513006084 Parts Diagram

String Trimmer

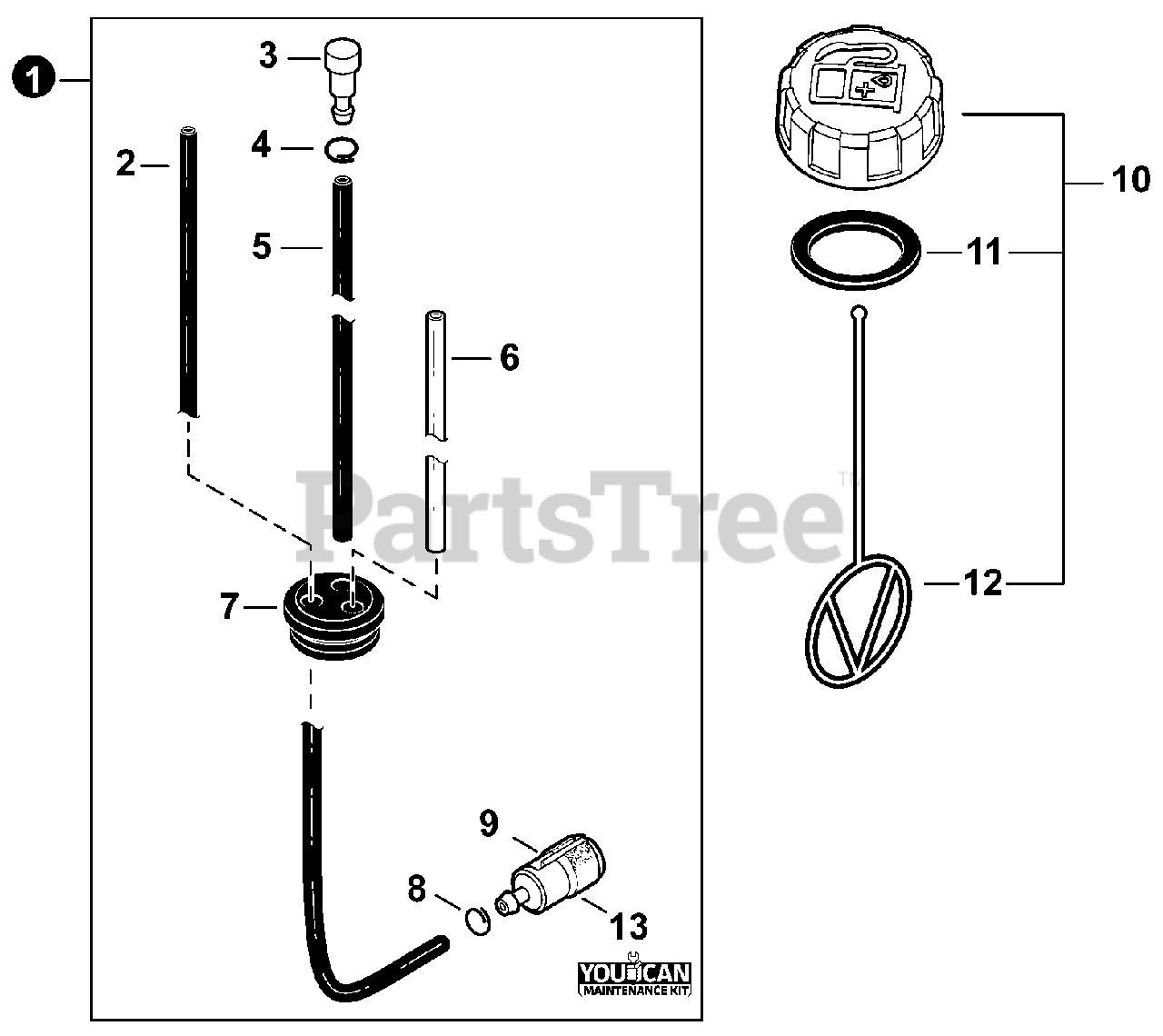

Fuel System S/N: S81513001001 - S81513006084 Parts Diagram

  • Title

1

Echo 90106

FUEL SYSTEM KIT
(Superseded to Discontinued)

Note: Includes items 2-9

$

$

Not available

2

Echo V470000580

PIPE, FUEL 3×5×195 BLACK
(Superseded to V470000581)

$2.99

$

In Stock, Qty 20+

0

3

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

4

Echo 13201326630

CLIP 6.5 MM
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

5

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

$2.99

$

In Stock, Qty 5

0

6

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 18

0

8

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

9

Echo A369000001

FILTER, FUEL
(Superseded to A369000440)

Note: INCLUDED IN TUNE-UP KIT

$8.49

$

In Stock, Qty 20+

0

10

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes items 11-12

$7.49

$

In Stock, Qty 9

0

11

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

12

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

13

Echo 90125Y

TUNE-UP KIT - YOUCANT

Note: SEE MAINTENANCE KITS

$22.99

$

In Stock, Qty 9

0
