SRM-280 - Echo String Trimmer (SN: S81513001001 - S81513999999) Fuel System S/N: S81513006085 - S81513006720 Parts Diagram

String Trimmer

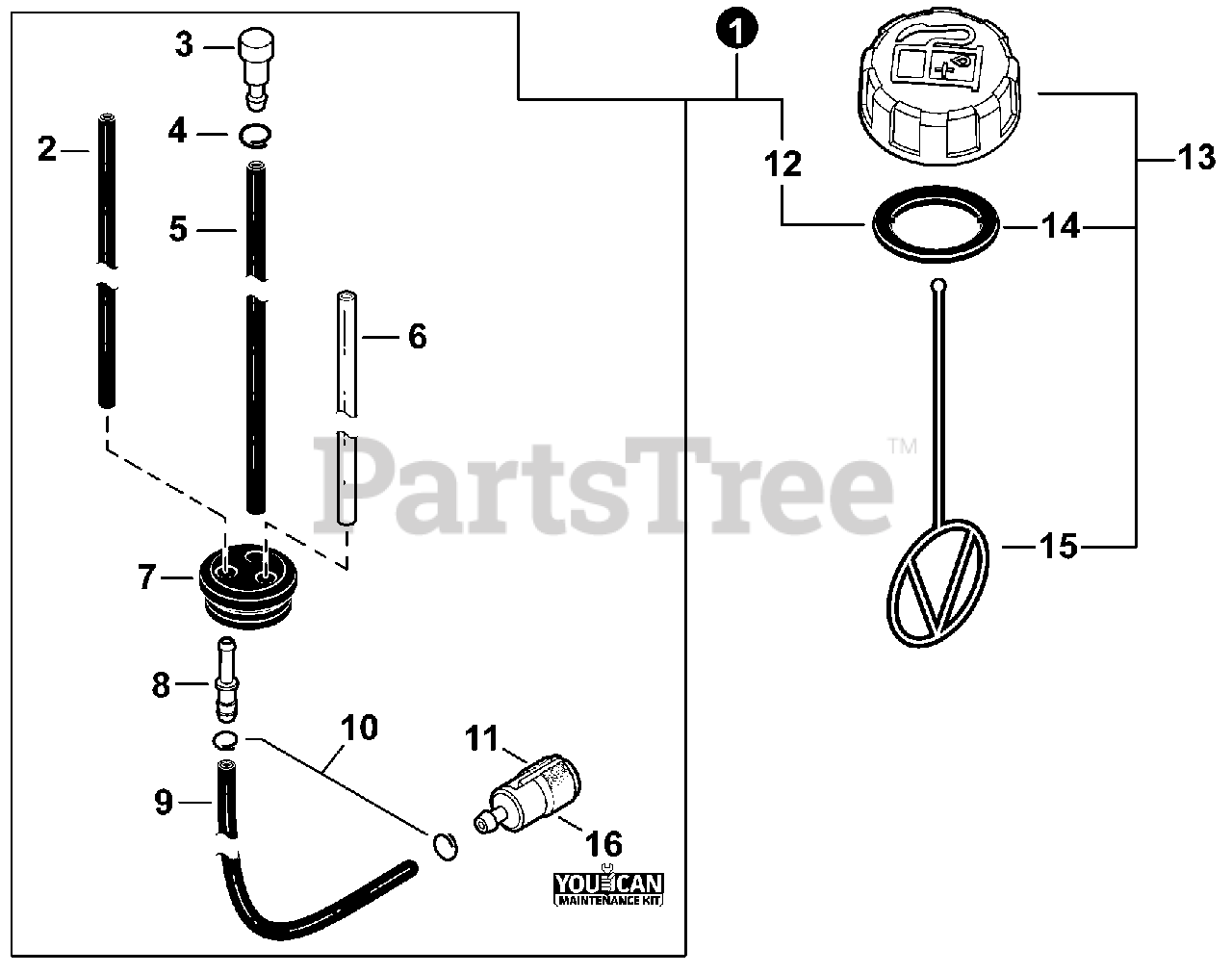

Fuel System S/N: S81513006085 - S81513006720 Parts Diagram

  • Title

1

Echo 90141BP

FUEL SYSTEM KIT
(Superseded to Discontinued)

Note: Includes items 2-12

$

$

Not available

2

Echo V471003710

PIPE, FUEL - 3×5×67 - BLACK
(Superseded to V471005600)

$3.49

$

In Stock, only 2 left!

0

3

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

$2.99

$

In Stock, only 4 left!

0

6

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471003650

PIPE, FUEL - 3×5×125 - BLACK
(Superseded to V471003651)

$1.99

$

In Stock, only 2 left!

0

10

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

11

Echo A369000001

FILTER, FUEL
(Superseded to A369000440)

Note: INCLUDED IN TUNE-UP KIT

$8.49

$

Usually ships in 2-4 days

0

12

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 4 left!

0

13

Echo P021040030

CAP ASSY, FUEL

Note: Includes items 14-15

$6.99

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 4 left!

0

15

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

16

Echo 90125Y

TUNE-UP KIT - YOUCANT

Note: SEE MAINTENANCE KITS

$22.99

$

In Stock, Qty 7

0
