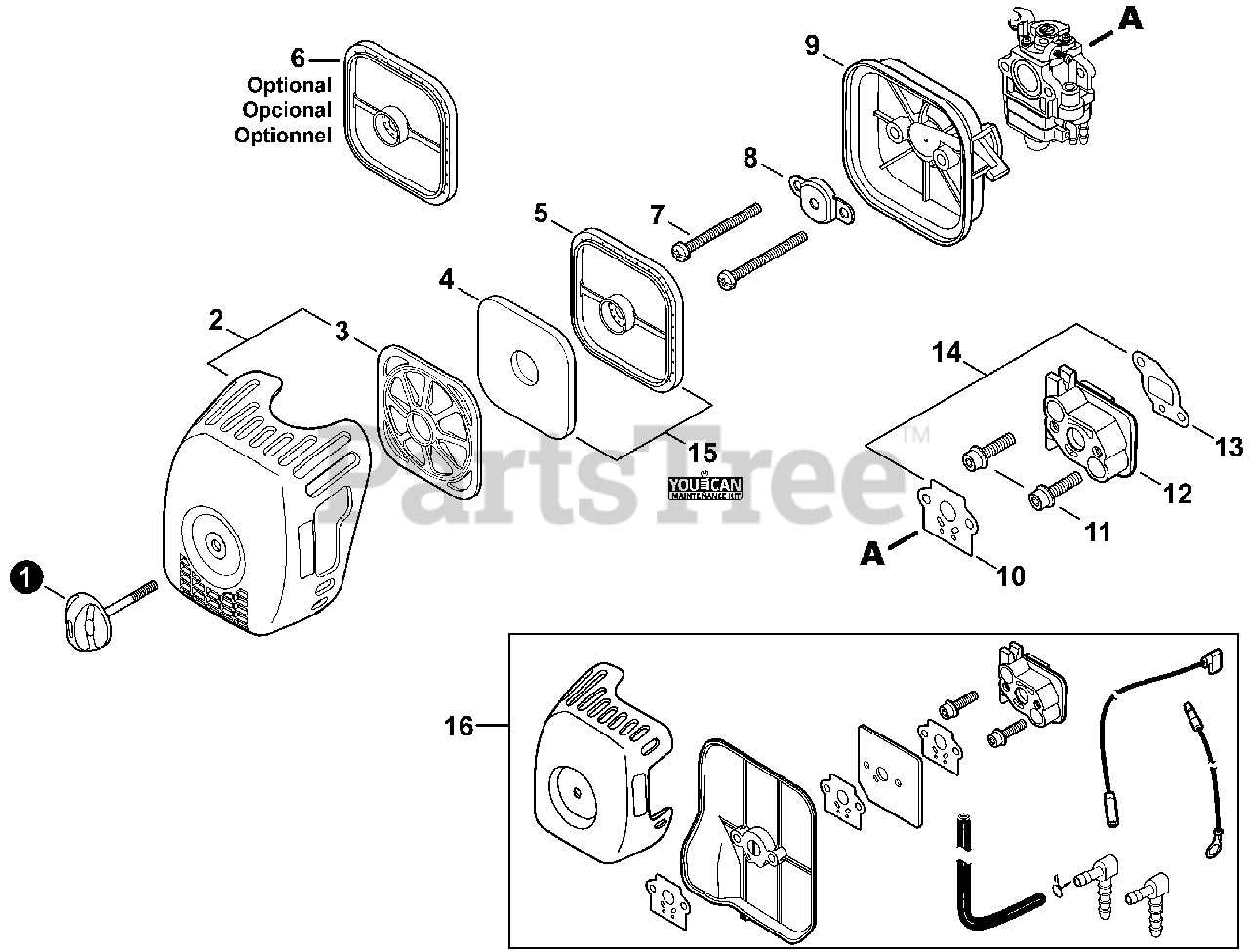

SRM-280 - Echo String Trimmer (SN: S81513001001 - S81513999999) Intake S/N: S81513001001 - S81513006720 Parts Diagram

String Trimmer

Intake S/N: S81513001001 - S81513006720 Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$4.99

$

In Stock, Qty 5

0

2

Echo P021039742

COVER KIT, AIR FILTER

Note: Includes item 3

$22.99

$

In Stock, only 1 left!

0

3

Echo A227000001

RETAINER, PRE-FILTER

$1.99

$

In Stock, Qty 20+

0

4

Echo A226000371

PRE-FILTER, FOAM

Note: INCLUDED IN TUNE-UP KIT

$6.99

$

In Stock, Qty 15

0

5

Echo A226000472

FILTER, AIR - DOUBLE LAYER
(Superseded to A226000473)

Note: INCLUDED IN TUNE-UP KIT

$10.99

$

In Stock, Qty 20+

0

6

Echo A226000351

FILTER, AIR - SINGLE LAYER
(Superseded to A226000470)

Note: OPTIONAL

$10.99

$

In Stock, Qty 20+

0

7

Echo 90024205060

SCREW 5×60

$0.99

$

In Stock, Qty 20+

0

8

Echo A244000310

PLATE, PREVENT

$3.99

$

Usually ships in 2-4 days

0

9

Echo P021013820

CASE, AIR FILTER

$11.99

$

In Stock, Qty 10

0

10

Echo V103000160

GASKET, INTAKE

Note: INCLUDED IN GASKET KIT

$1.99

$

In Stock, Qty 20+

0

11

Echo 90010605030

BOLT 5×30

$0.99

$

In Stock, Qty 8

0

12

Echo A200000270

INSULATOR, INTAKE

$15.99

$

In Stock, only 2 left!

0

13

Echo V103000380

GASKET, INTAKE

Note: INCLUDED IN GASKET KIT

$0.99

$

In Stock, Qty 20+

0

14

Echo P021013800

GASKET KIT

Note: SEE MAINTENANCE KITS

$29.99

$

In Stock, Qty 10

0

15

Echo 90125Y

TUNE-UP KIT - YOUCANT

Note: SEE MAINTENANCE KITS

$22.99

$

In Stock, Qty 9

0

16

Echo P021046180

HOT START KIT 280

Note: SEE MAINTENANCE KITS

$48.99

$

Usually ships in 2-4 days

0
