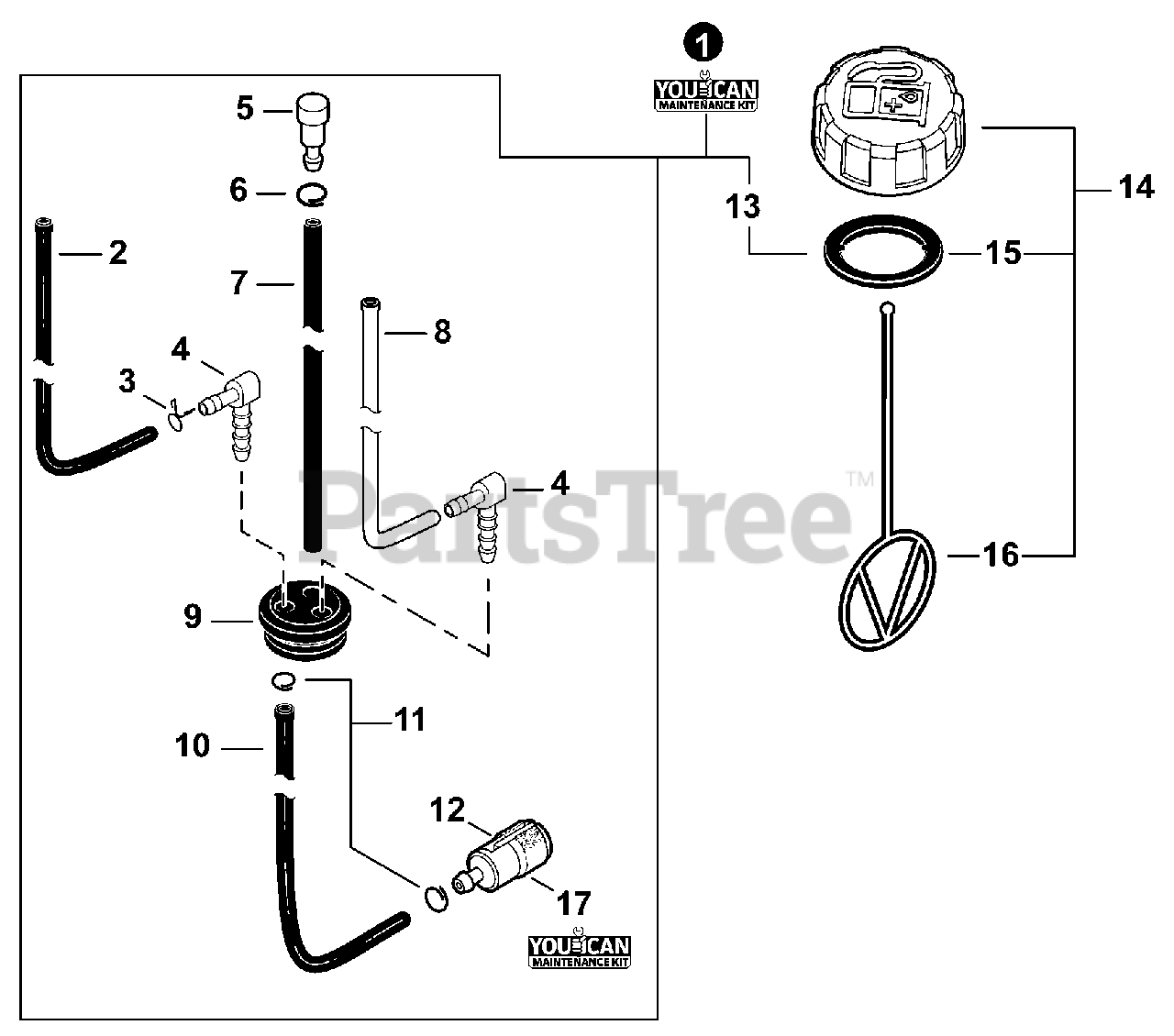

SRM-280 - Echo String Trimmer (SN: T48014001001 - T48014999999) Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title

1

Echo 90180Y

FUEL SYSTEM KIT - YOUCANT

Note: Includes items 2-13

$26.99

$

In Stock, Qty 16

0

2

Echo V471003600

PIPE, FUEL 3×5×87 BLACK
(Superseded to V471005660)

$4.49

$

In Stock, only 3 left!

0

3

Echo V490000510

CLIP, SPRING Ø5.2

$1.49

$

In Stock, Qty 6

0

4

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

5

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

6

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

$2.99

$

In Stock, Qty 5

0

8

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

9

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 18

0

10

Echo V471003650

PIPE, FUEL - 3×5×125 - BLACK
(Superseded to V471003651)

$1.99

$

In Stock, only 2 left!

0

11

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 8

0

12

Echo A369000440

FILTER, FUEL

Note: INCLUDED IN TUNE-UP KIT

$8.49

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 2 left!

0

14

Echo P021040030

CAP ASSY, FUEL

Note: Includes items 15-16

$6.99

$

In Stock, Qty 20+

0

15

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 2 left!

0

16

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

17

Echo 90125Y

TUNE-UP KIT - YOUCANT

Note: SEE MAINTENANCE KITS

$22.99

$

In Stock, Qty 9
