SRM-280 - Echo String Trimmer (SN: T48014001001 - T48014999999) Intake Parts Diagram

String Trimmer

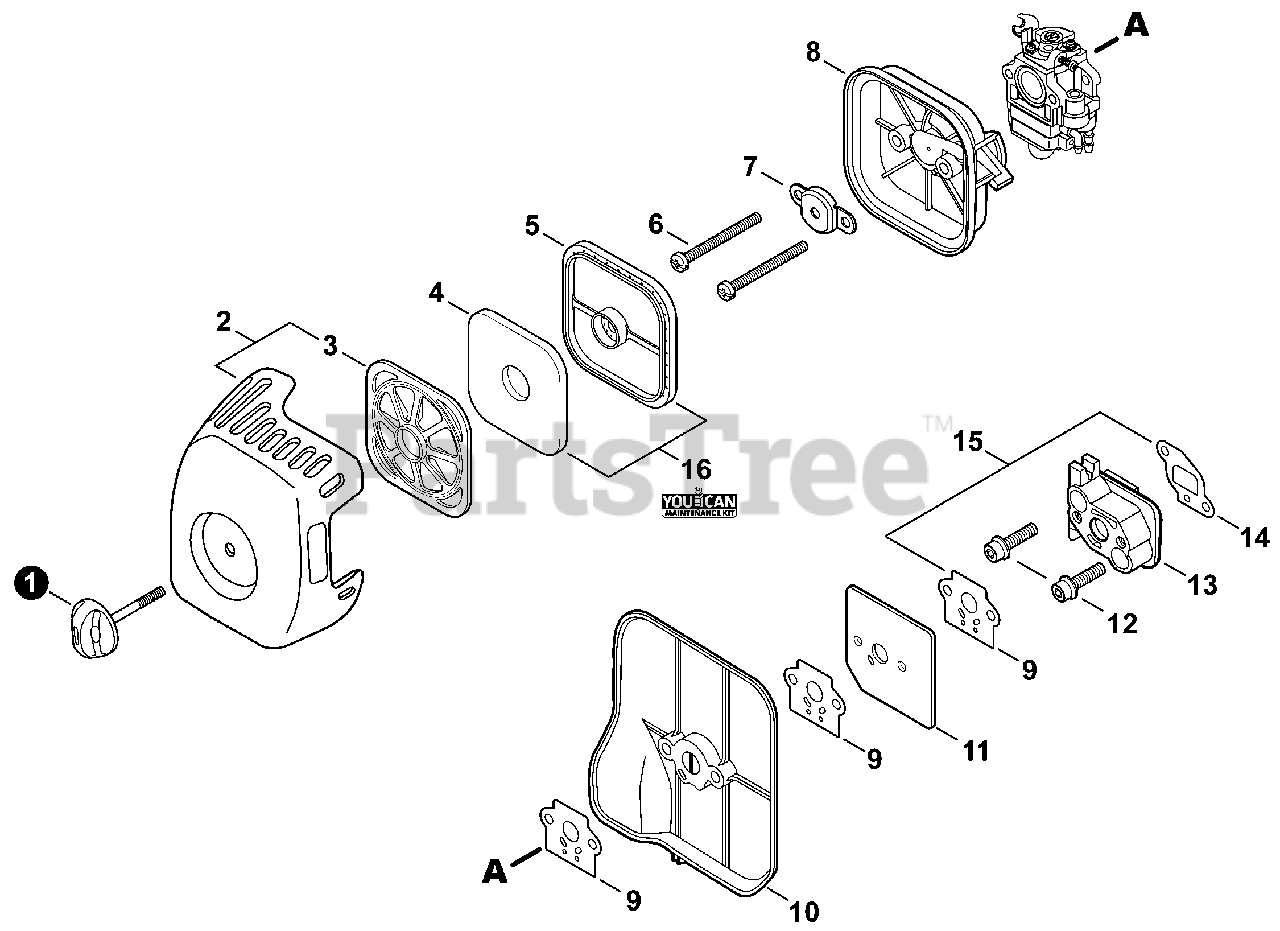

Intake Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$4.99

$

In Stock, Qty 5

0

2

Echo P021046370

COVER KIT, AIR FILTER

Note: Includes item 3

$22.99

$

In Stock, Qty 8

0

3

Echo A227000001

RETAINER, PRE-FILTER

$1.99

$

In Stock, Qty 20+

0

4

Echo A226000371

PRE-FILTER, FOAM

Note: INCLUDED IN TUNE-UP KIT

$6.99

$

In Stock, Qty 14

0

5

Echo A226000473

FILTER, AIR - DOUBLE LAYER

Note: INCLUDED IN TUNE-UP KIT

$10.99

$

In Stock, Qty 20+

0

6

Echo 9157905070

SCREW 5×70

$1.49

$

In Stock, Qty 20+

0

7

Echo A244000310

PLATE, PREVENT

$3.99

$

Usually ships in 2-4 days

0

8

Echo P021013820

CASE, AIR FILTER

$11.99

$

In Stock, Qty 10

0

9

Echo V103000160

GASKET, INTAKE

Note: INCLUDED IN GASKET KIT

$1.99

$

In Stock, Qty 20+

0

10

Echo A209000850

PLATE, INSULATOR

$2.99

$

In Stock, only 2 left!

0

11

Echo A209000140

PLATE, INSULATOR

$2.99

$

In Stock, only 2 left!

0

12

Echo 90010605030

BOLT 5×30

$0.99

$

In Stock, Qty 8

0

13

Echo A200001000

INSULATOR, INTAKE

$13.99

$

In Stock, Qty 6

0

14

Echo V103000380

GASKET, INTAKE

Note: INCLUDED IN GASKET KIT

$0.99

$

In Stock, Qty 20+

0

15

Echo P021013800

GASKET KIT

Note: SEE MAINTENANCE KITS

$29.99

$

In Stock, Qty 10

0

16

Echo 90125Y

TUNE-UP KIT - YOUCANT

Note: SEE MAINTENANCE KITS

$22.99

$

In Stock, Qty 8

0
