SRM-280 T - Echo String Trimmer (SN: S81713001001 - S81713999999) Gear Case Parts Diagram

String Trimmer

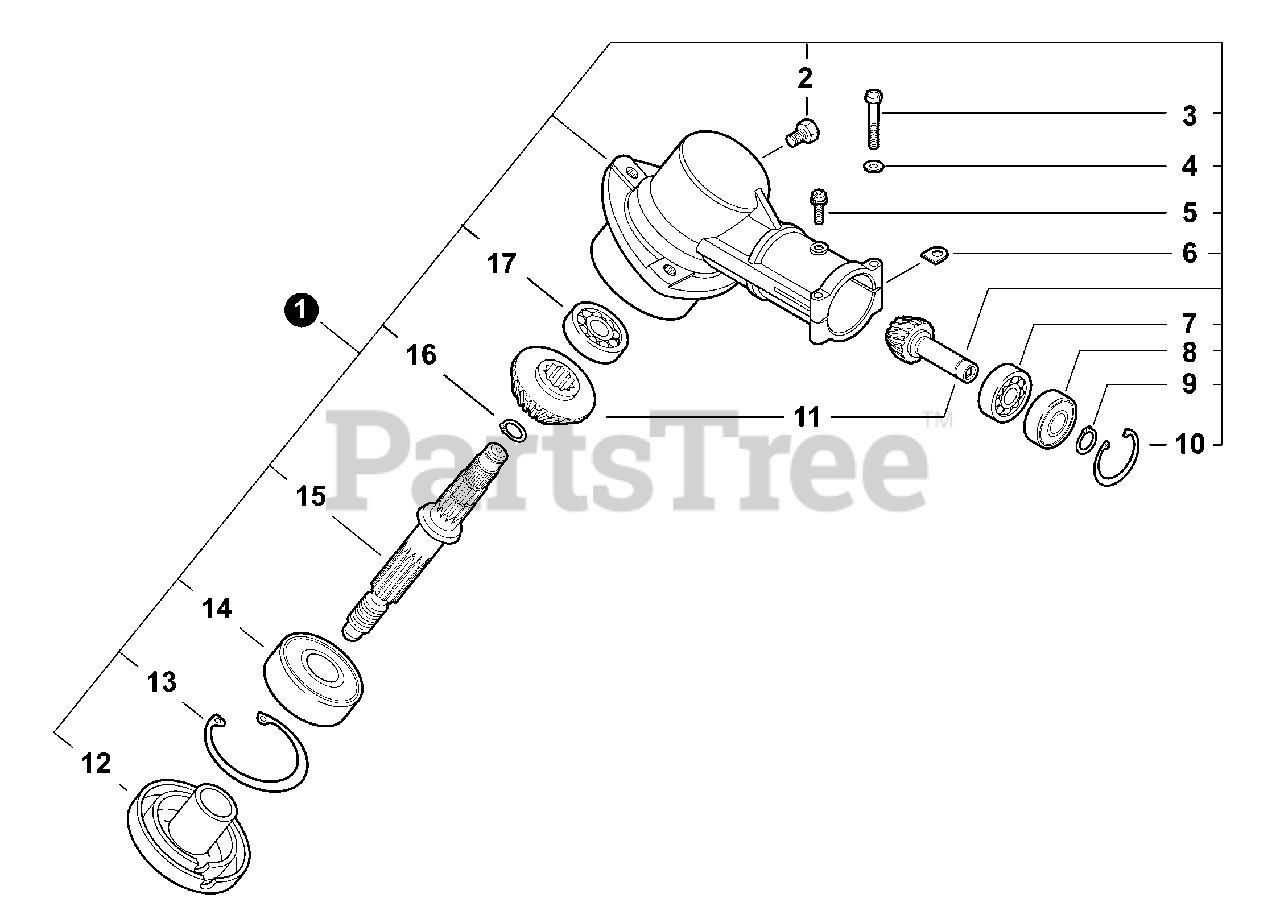

Gear Case Parts Diagram

  • Title

1

Echo P021013432

GEAR CASE ASSY

Note: Includes Items 2-18

$149.99

$

In Stock, only 2 left!

0

2

Echo 610434-50031

BOLT M8×8

$2.49

$

In Stock, Qty 7

0

3

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

4

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

6

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

7

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

8

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

9

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

10

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

11

Echo V000000020

GEAR SET

$73.99

$

In Stock, only 2 left!

0

12

Echo C535000320

PLATE, ADAPTOR - UPPER

$11.99

$

In Stock, only 3 left!

0

13

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 20+

0

14

Echo 90081206302

BEARING, BALL 6302

$19.99

$

In Stock, only 3 left!

0

15

Echo C534000220

SHAFT, GEAR

$72.99

$

In Stock, only 2 left!

0

16

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

17

Echo 90081000629

BEARING, BALL 629

$18.99

$

In Stock, only 2 left!

0
