SRM-280 U - Echo Brush Cutter (SN: S82513001001 - S82513999999) Throttle Control Parts Diagram

Brush Cutter

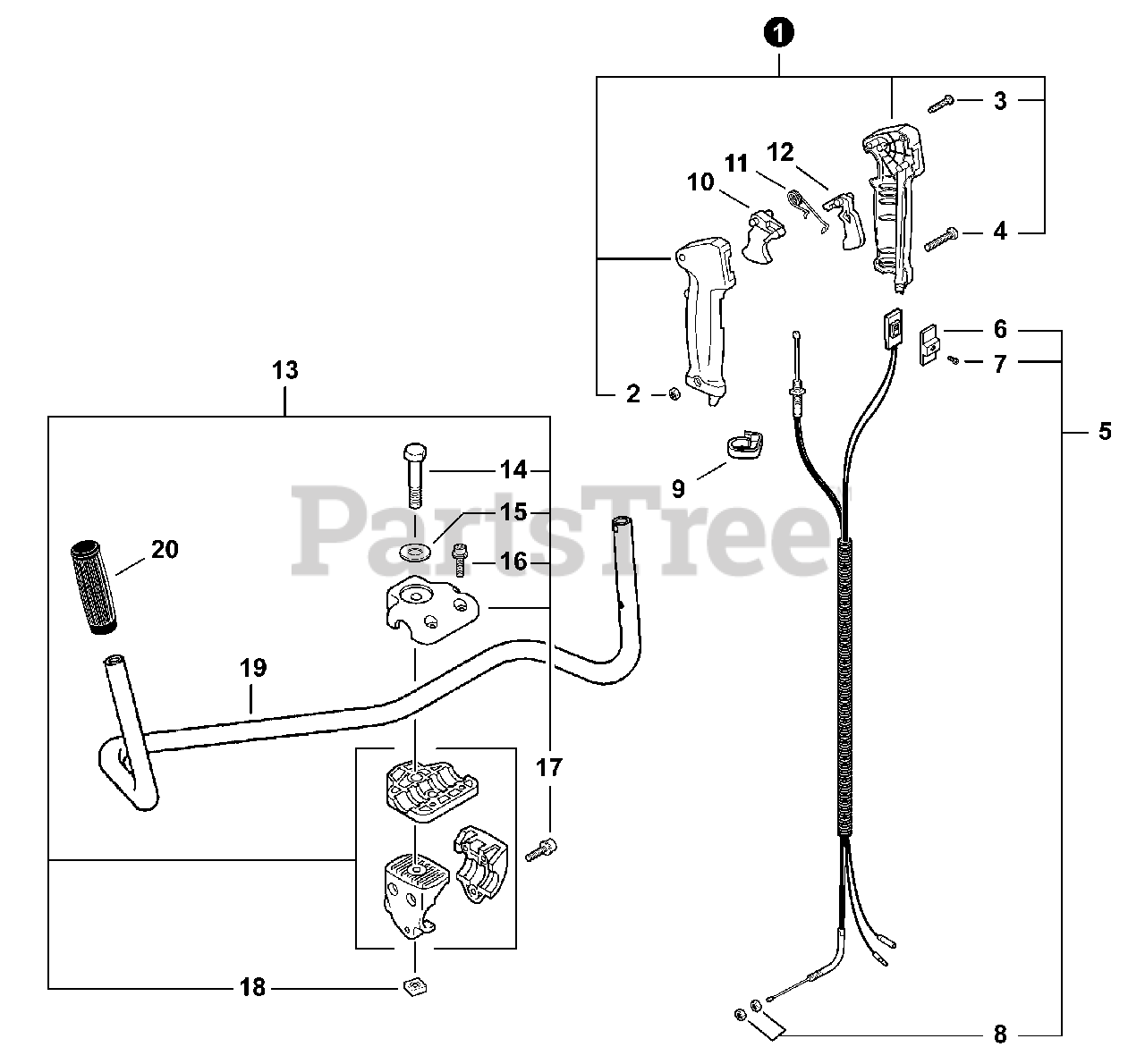

Throttle Control Parts Diagram

  • Title

1

Echo 35110247530

THROTTLE CONTROL ASY

Note: Includes Items 2-4

$41.99

$

In Stock, only 2 left!

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

4

Echo 90022005030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

5

Echo V043000170

CONTROL CABLE ASY
(Superseded to P021047840)

Note: Includes Items 6-8

$30.99

$

Usually ships in 2-4 days

0

6

Echo A444000020

KNOB

$0.99

$

In Stock, Qty 20+

0

7

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

8

Echo 90050200006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

10

Echo 17801005960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

11

Echo 17801335631

SPRING, THROTTLE LOCK

$2.99

$

In Stock, Qty 5

0

12

Echo 17801205960

LOCKOUT, TRIGGER

$6.99

$

In Stock, only 1 left!

0

13

Echo P021012791

HANDLE BRACKET KIT

Note: Includes Items 15-19

$105.99

$

In Stock, only 1 left!

0

14

Echo 35142152130

BOLT

$3.49

$

Usually ships in 2-4 days

0

15

Echo 60501454230

WASHER

$4.49

$

Usually ships in 2-4 days

0

16

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

18

Echo 90056550008

NUT

$1.49

$

Usually ships in 2-4 days

0

19

Echo C400000000

HANDLE - FRONT

$102.99

$

Usually ships in 2-4 days

0

20

Echo 35131102330

GRIP, HANDLE - LEFT

$7.49

$

Usually ships in 2-4 days

0
