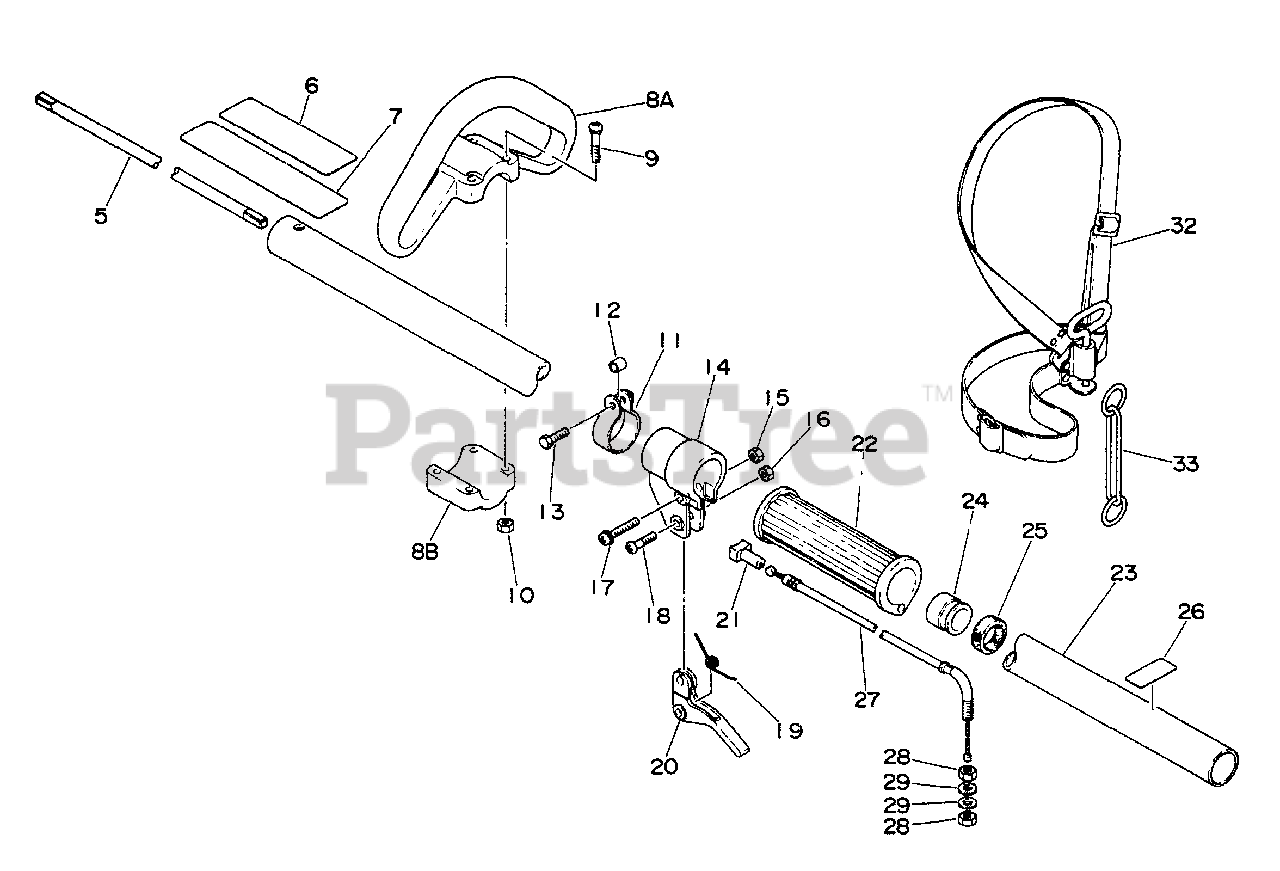

SRM-300 AE - Echo String Trimmer Driveshaft, Handles, Harness, Throttle Parts Diagram

String Trimmer

Driveshaft, Handles, Harness, Throttle Parts Diagram

  • Title

5

Echo 61001104130

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

6

Echo 89017709130

LABEL

$1.49

$

Usually ships in 2-4 days

0

7

Echo 89016024230

LABEL - CAUTION
(Superseded to 89016044730)

$4.49

$

Usually ships in 2-4 days

0

8

Echo 35120106930

LOOP HANDLE ASSY
(Superseded to Discontinued)

Note: Includes items 9 and 10

$

$

Not available

8A

Echo 35120106930

LOOP HANDLE ASSY
(Superseded to Discontinued)

Note: See Ref No. 8, Loop handle ass'y , 35120106930

$

$

Not available

8B

Echo 35120106930

LOOP HANDLE ASSY
(Superseded to Discontinued)

Note: See Ref No. 8, Loop handle ass'y ,P\N 35120106930

$

$

Not available

9

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

10

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

11

Echo 30120707530

HOOK

$6.99

$

Usually ships in 2-4 days

0

12

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

13

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

14

Echo 17802406830

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

15

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

17

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

18

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

19

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

20

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.99

$

In Stock, Qty 5

0

21

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

22

Echo 35101205630

GRIP
(Superseded to Discontinued)

$

$

Not available

23

Echo 61020609130

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes items 24 and 25

$

$

Not available

24

Echo 61010504930

STOPPER

$27.99

$

Usually ships in 2-4 days

0

25

Echo 61011204930

BUSHING

$3.99

$

Usually ships in 2-4 days

0

26

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

27

Echo 17800124431

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

28

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

29

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

32

Echo 30100024330

SHOULDER STRAP ASSY
(Superseded to 30100050330)

Note: Includes ITEM 33

$98.99

$

Usually ships in 2-4 days

0

33

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0
