SRM-300 AE - Echo String Trimmer Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

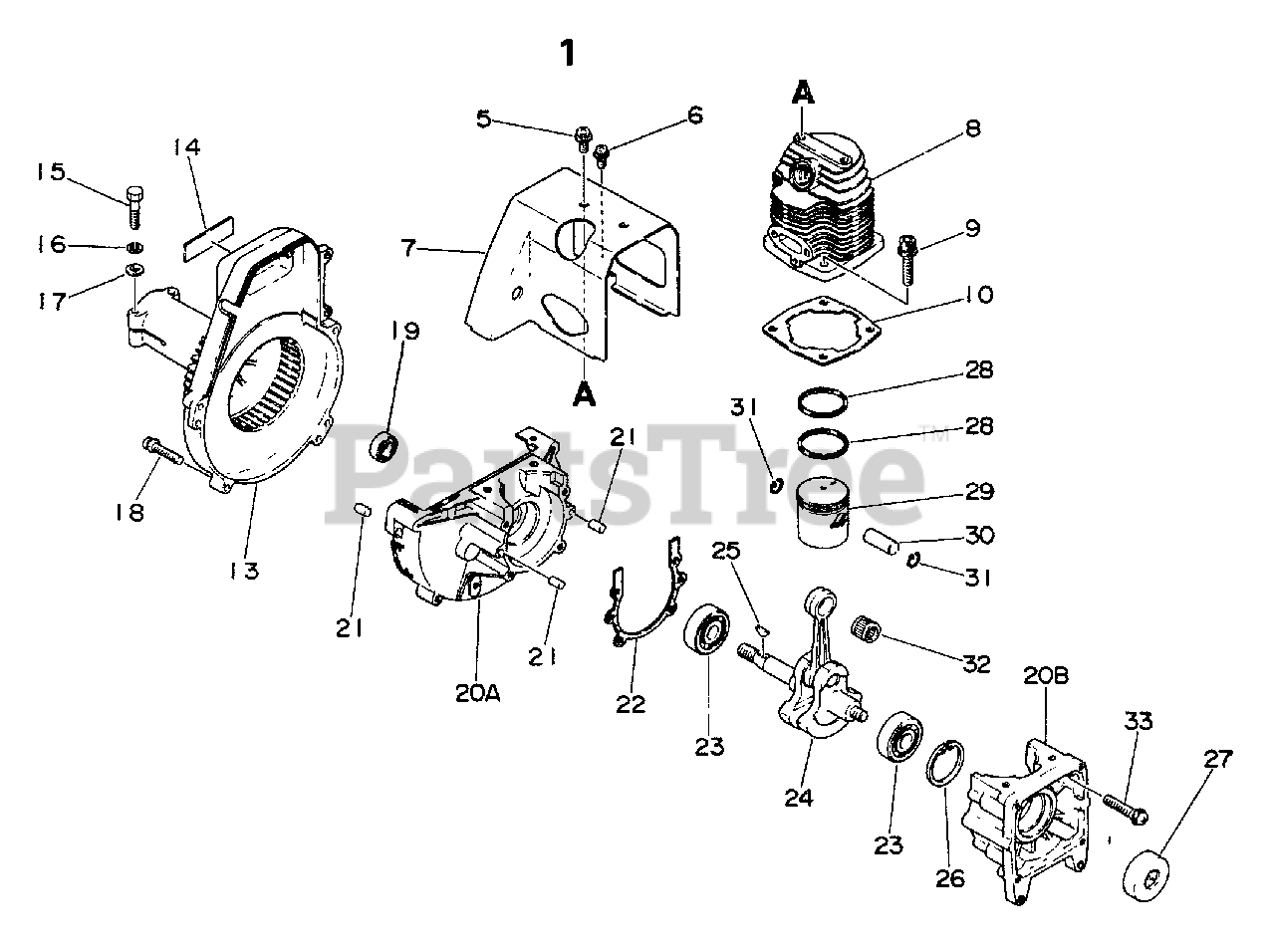

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

6

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

7

Echo 10151424830

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

8

Echo 10101106720

CYLINDER

$

$

Not available

9

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

10

Echo 10101006720

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

13

Echo 10151106720

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

14

Echo 89011224430

LABEL
(Superseded to Discontinued)

$

$

Not available

15

Echo 90010005025

BOLT - 5×25

$3.49

$

Usually ships in 2-4 days

0

16

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

17

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

19

Echo 10021211230

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

20

Echo 10020006721

CRANKCASE KIT

Note: Includes ITEM 21

$158.99

$

Usually ships in 2-4 days

0

20A

Echo 10020006721

CRANKCASE KIT

Note: See Ref No. 20, Crankcase set, P/N 10020006721

$158.99

$

Usually ships in 2-4 days

0

20B

Echo 10020006721

CRANKCASE KIT

Note: See Ref No. 20, Crankcase set, P\N 10020006721

$158.99

$

Usually ships in 2-4 days

0

21

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

22

Echo 10024206720

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

23

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

24

Echo 10010006720

CRANKSHAFT
(Superseded to Discontinued)

$

$

Not available

25

Echo 10013101620

KEY

$3.49

$

Usually ships in 2-4 days

0

26

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

27

Echo 100213-02830

SEAL, OIL 18

$7.99

$

In Stock, only 1 left!

0

28

Echo 10001105731

RING, PISTON

$8.99

$

In Stock, only 1 left!

0

29

Echo 10001005731

PISTON
(Superseded to 10000005730)

$74.99

$

In Stock, only 1 left!

0

30

Echo 10001305731

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

31

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

32

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

33

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0
